Mô tả sản phẩm

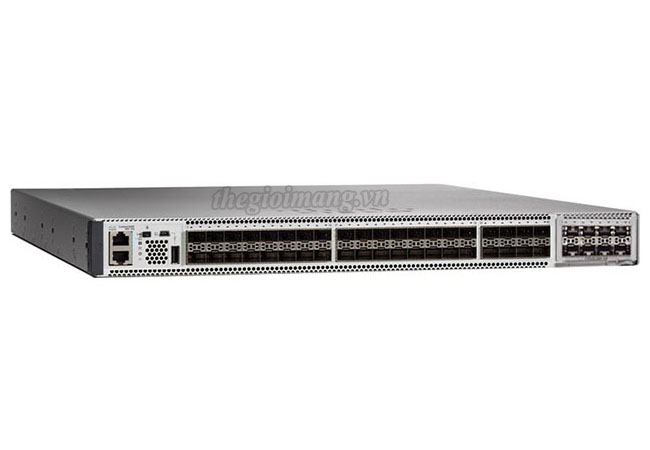

Thiết bị mạng Switch Cisco C9500-48X-A

Part Number	C9500-48X-A
Product description	Cisco Catalyst 9500 Series 40-port 1/10 Gigabit Ethernet Switch, 8 x 10GE Network Module with SFP/SFP+
Performance Specifications
ASIC	UADP 2.0
Switching capacity	Up to 960 Gbps full duplex
Forwarding rate	Up to 720 Mpps
Total number of MAC addresses	Up to 64,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)	Up to 64,000 indirect Up to 80,000 host
Total number of IPv6 routes	Up to 32,000 indirect Up to 40,000 host
QoS ACL scale	Up to 18000
Security ACL scale	Up to 18000
FNF entries	Up to 512,000
DRAM	16 GB
Flash	16 GB
VLAN IDs	4094
PVST Instances	300
STP Virtual Ports (Port VLANs) for PVST	13000
STP Virtual Ports (Port VLANs) for MST	13000
Total Switched Virtual Interfaces (SVIs)	1000
Jumbo frame	9198 bytes
Power Supply Specifications
AC power max rating	950W
System power consumption	850W Max.
Input-voltage range and frequency	AC 115 to 230 VAC, 50 to 60 Hz
Input current	AC 10A at 115VAC, 5 A at 230VAC
Output ratings	12V at 79A, 12V at 3A
Dimensions, Physical specifications, Weight, and MTBF
Dimensions (H x W x D)	1.73 x 17.5 x 21.52 in
Rack Units (RU)	1 RU
Chassis with 2 power supplies and built-In fan	25.75 lb (11.68 kg)
Input voltage	90 to 264 VAC
Operating temperature	32° to 104°F (0° to 40°C) up to altitude of 10,000 feet
Altitude	Operation up to 10,000 feet at 40°C; up to 6,000 feet at 45°C
Storage temperature	-4° to 149°F (-20° to 65°C)
MTBF (hours)	277, 310

Xem thêm

Thông số kỹ thuật

Network Advantage Package Features

Features	Network Advantage
Switch Fundamentals	✔
Layer 2, Routed Access (RIP, EIGRP Stub, OSPF), PBR, PIM Stub Multicast, PVLAN, VRRP, PBR, Cisco Discovery Protocol, QoS, FHS, 802.1X, CoPP, SXP, IP SLA Responder, SSO
Advanced Switch Capabilities and Scale	✔
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM SM, PIM SSM, PIM-BIDIR, IP SLA, OSPF
Network Segmentation	✔
VRF, VXLAN, LISP, SGT, MPLS, mVPN
Automation	✔
NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (on-box Python)
Telemetry and Visibility	✔
Model-driven telemetry, sampled NetFlow, SPAN, RSPAN
High Availability and Resiliency	✔
NSF, ISSU, StackWise Virtual, Quad Sup RPR mode
IoT integration	✔
PTP
Security	✔
MACsec-256
