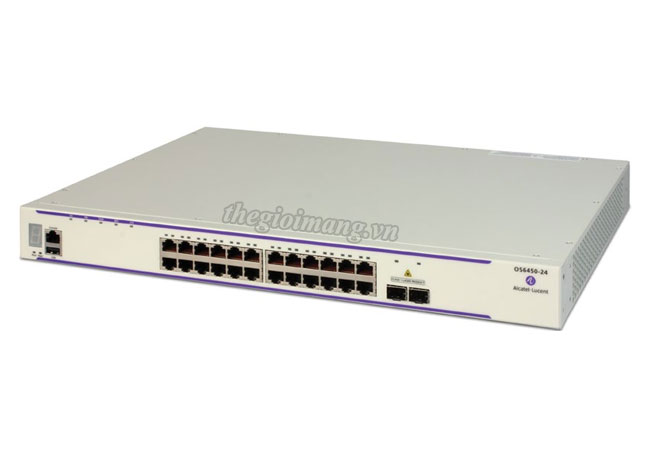

Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS6450-24L
| Model | OS6450-24L |
| RJ-45 10/100 ports | 24 |
| RJ-45/SFP 10/100/1000 combo ports | 0 |
| SFP 100/1000 ports | 0 |
| SFP+ Gigabit/10 Gigabit uplink ports | 2 |
| Ports per expansion module | 2 |
| PoE ports | 0 |
| Max 24/48-port models in a stack | 8 |
| Performance (Gigabit models) | |
| Switch capacity (all ports) | 128 Gb/s |
| Switch frame rate (all ports) | 95.3 Mp/s |
| Stacking capacity (aggregated) | 40 Gb/s |
| Dimensions | |
| Width | 44.0 cm (17.32 in) |
| Height | 4.4 cm (1.73 in) |
| Depth | 31.24 cm (12.3 in) |
| Weight | 4.08 kg (9.0 lb) |
| Operating conditions | |
| Operating temperature | 0° C to +45° C |
| Storage temperature | -40° C to +75° C |
| Humidity (operating and storage) | 5% - 95% |
| Fan (variable speed) | No fan |
| Acoustic (dB) | 0 db (A) |
| MTBF (hours) | 894,251 |
| System power consumption (watts) | |
| 0% traffic | 29.60 W/34.50 W |
| 50% traffic | 30.6 W/38.70 W |
| 100% traffic | 31.1 W/39.40 W |
| System heat dissipation (Btus) | |
| 0% traffic | 100.90/117.71 |
| 50% traffic | 104.41/132.04 |
| 100% traffic | 106.11/134.43 |
| PoE power budget (watts) | N/A |
| PoE device heat dissipation (BTU) | N/A |
| Power supply efficiency | 86.99% |
License options
| OS6450-SW-PERF | Performance software license enabling 10 gigabit speed on the fixed SFP+ ports of the 24- or 48-port models |
| OS6450-24L-UPGD | Software license enabling gigabit speed on the RJ-45 user ports of OS6450-24L and OS6450-P24L |
Expansion module
| OS6450-XNI-U2 | Optional 10 Gigabit SFP+ stacking module. Supports two SFP+ 10 Gigabit ports. Inserted into the OS6450 expansion slot at the rear of the OS6450 chassis. Stacking cables may be ordered separately. Uplink mode not supported |
| OS6450-XNI-U2X | Optional 10 Gigabit SFP+ uplink module. Supports two SFP+ 10 Gigabit uplink ports. Inserted into the OS6450 expansion slot at the rear of the OS6450 chassis. SFPs/cables may be ordered separately. Stacking mode not supported |
| OS6450-GNI-U2 | Optional SFP Gigabit uplink module. Supports two SFP Gigabit ports. Inserts in the OS6450 expansion slot at the rear of the OS6450 chassis. SFPs may be ordered separately |
| OS6450-GNI-C2 | Optional RJ-45 Gigabit uplink module. Supports two RJ-45 Gigabit ports. Inserts in the 6450 expansion slot at the rear of the OS6450 chassis |
Power supply
| OS6450-BP | 90 W power AC backup power supply. Provides backup power to one non-PoE switch. Inserted into the backup power supply bay at the rear of the chassis. Ships with country-specific power cord. |
| OS6450-BP-D | 90 W power DC backup power supply. Provides backup power to one non-PoE switch. Inserted into the backup power supply bay at the rear of the chassis. |
Transceivers and Cables
| OS6450S-CBL-60 | 60 cm long SFP+ direct stacking cable for OS6450 24- and 48-port models |
| OS6450S-CBL-1M | 100 cm long SFP+ direct stacking cable for OS6450 24- and 48-port models |
| SFP-10G-SR | 10 Gigabit optical transceiver (SFP+). Supports multimode fiber over 850 nm wavelength (nominal) with an LC connector. Typical reach of 300 m |
| SFP-10G-LR | 10 Gigabit optical transceiver (SFP+). Supports single-mode fiber over 1310 nm wavelength (nominal) with an LC connector. Typical reach of 10 km |
| SFP-10G-ER | 10 Gigabit optical transceiver (SFP+). Supports single-mode fiber over 1550 nm wavelength (nominal) with an LC connector. Typical reach of 40 km |
| SFP-10G-LRM | 10 Gigabit optical transceiver (SFP+). Supports multimode fiber over 1310 nm wavelength (nominal) with an LC connector. Typical reach of 220 m on FDDI-grade (62.5µm) |
| SFP-10G-GIG-SR | Dual-speed SFP+ optical transceiver. Supports multimode fiber over 850 nm wavelength (nominal) with an LC connector. Supports 1000Base-SX and 10GBase-SR speeds |
| SFP-GIG-LH70 | 1000Base-LH transceiver with an LC interface for single-mode fiber over 1550 nm wavelength. Typical reach of 70 km. |
| SFP-GIG-LH40 | 1000Base-LH transceiver with an LC interface for single-mode fiber over 1310 nm wavelength. Typical reach of 40 km |
| SFP-GIG-LX | 1000Base-LX transceiver with an LC interface for single-mode fiber over 1310 nm wavelength. Typical reach of 10 km |
| SFP-GIG-SX | 1000Base-SX transceiver with an LC interface for multimode fiber over 850 nm wavelength. Typical reach of 300 m |
| SFP-DUAL-BX-D | 1000Base-BX10-D transceiver with an LC-type interface for use over single-mode fiber on a single strand link up to 10 km. Operates at 100/1000 Mb speed, transmits 1500 nm and receives 1310 nm optical signal. |
| SFP-DUAL-BX-U | 1000Base-BX10-U transceiver with an LC type interface for use over single-mode fiber on a single strand link up to 10 km. Operates at 100/1000 Mb speed, transmits 1310 nm and receives 1550 nm optical signal |
| SFP-GIG-BX-D | 1000Base-BX bidirectional transceiver with an LC type interface for use over single-mode fiber on a single strand link up to 10 km point to point. Transmits 1490 nm and receives 1310 nm optical signal. |
| SFP-GIG-BX-U | 1000Base-BX bidirectional transceiver with an LC type interface for use over single-mode fiber on a single strand link up to 10 km point to point. Transmits 1310 nm and receives 1490 nm optical signal |
| SFP-GIG-BX-D20 | 1000Base-BX bidirectional transceiver with an LC type interface for use over single-mode fiber on a single strand link up to 20 km point to point. Transmits 1490 nm and receives 1310 nm optical signal |
| SFP-GIG-BX-U20 | 1000Base-BX bidirectional transceiver with an LC type interface for use over single-mode fiber on a single strand link up to 20 km point to point. Transmits 1310 nm and receives 1490 nm optical signal. |
| SFP-GIG-EXTND | 1000Base-SX transceiver with an LC interface for single-mode fiber over 850 nm wavelength. Typical reach of 2 km |
| SFP-100-MM | 100Base-FX transceiver with an LC interface for multimode fiber optic cable |
| SFP-100-SM15 | 100Base-FX transceiver with an LC type interface for single-mode fiber optic cable up to 15 km |
| SFP-100-SM40 | 100Base-FX transceiver with an LC type interface for single-mode fiber optic cable up to 40 km. |
| SFP-100-BX-U | 100Base-BX bidirectional transceiver with an SC type interface for use over single-mode fiber optic on a single strand link up to 20KM point-to-point, where the client (ONU) transmits 1310nm and receives 1550nm optical signal |
| SFP-100-BX-D | 100Base-BX bidirectional transceiver with an SC type interface for use over single-mode fiber optic on a single strand link up to 20KM point-to-point, where the client (OLT) transmits 1550nm and receives 1310nm optical signal. |
OS6450-24L : Fast Ethernet chassis in a 1U form factor with 24 10/100 Base-T ports, 2 fixed SFP+ (1G/10G*) ports and one expansion slot for optional stacking or uplink modules.
Data sheet Alcatel-Lucent OmniSwitch 6450 Stackable Gigabit Ethernet LAN switch family
