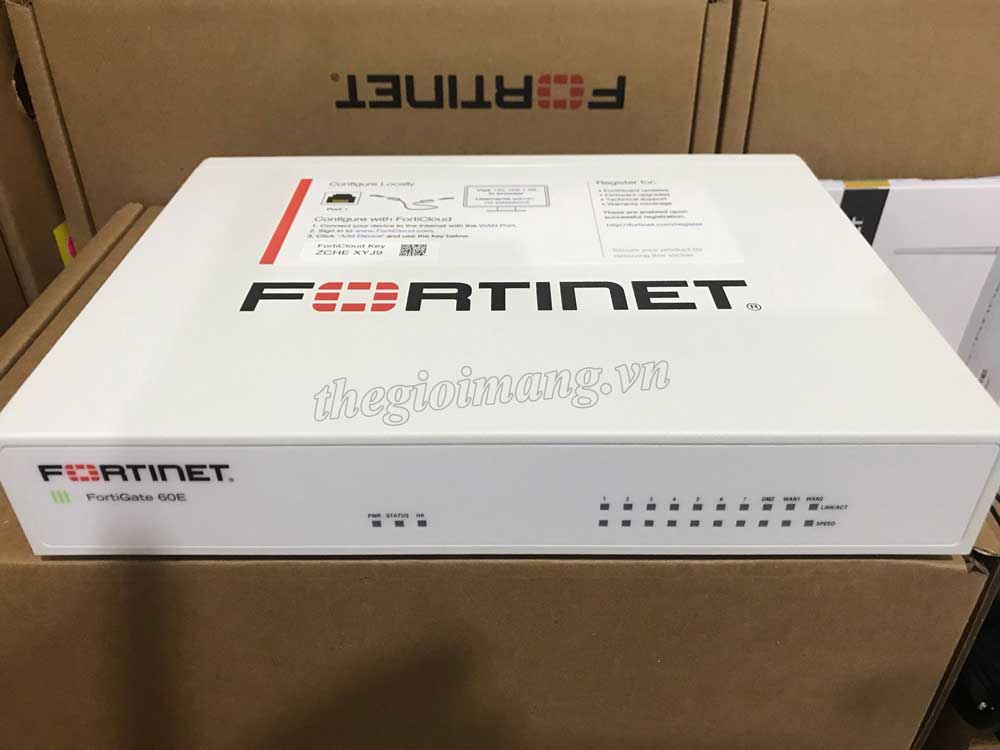

Thiết bị bảo vệ mạng Firewall Fortinet FortiGate-60E
Mã sản phẩm | FG-60E |
Hardware Specifications | |
GE RJ45 WAN / DMZ Ports | 2 /1 |
GE RJ45 Internal Ports | 7 |
GE RJ45 PoE/+ Ports | - |
Wireless Interface | - |
USB Ports | 1 |
Console (RJ45) | 1 |
Internal Storage | - |
System Performance | |
Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 3 / 3 / 3 Gbps |
Firewall Latency (64 byte UDP packets) | 3 μs |
Firewall Throughput (Packets Per Second) | 4.5 Mpps |
Concurrent Sessions (TCP) | 1.3 Million |
New Sessions/Second (TCP) | 30,000 |
Firewall Policies | 5,000 |
IPsec VPN Throughput (512 byte) 1 | 2 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 500 |
SSL-VPN Throughput | 150 Mbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 100 |
SSL Inspection Throughput (IPS, HTTP) 3 | 175 Mbps |
Application Control Throughput (HTTP 64K) 2 | 650 Mbps |
CAPWAP Throughput (HTTP 64K) | 890 Mbps |
Virtual Domains (Default / Maximum) | 10/10 |
Maximum Number of Switches Supported | 8 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 30 / 10 |
Maximum Number of FortiTokens | 100 |
Maximum Number of Registered FortiClients | 200 |
High Availability Configurations | Active / Active, Active / Passive, Clustering |
System Performance — Optimal Traffic Mix | |
IPS Throughput 2 | 1,400 Mbps |
System Performance — Enterprise Traffic Mix | |
IPS Throughput 2 | 400 Mbps |
NGFW Throughput 2,4 | 250 Mbps |
Threat Protection Throughput 2,5 | 200 Mbps |
Dimensions | |
Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
Height x Width x Length (mm) | 38 x 216 x 160 |
Weight | 1.9 lbs (0.9 kg) |
Form Factor | Desktop |
Operating Environment and Certifications | |
Power Required | 100–240V AC, 50–60 Hz |
Maximum Current | 110V AC / 1.5 A, 220V AC / 0.75 A |
Total Available PoE Power Budget* | N/A |
Power Consumption (Average / Maximum) | 11.7 / 14 W |
Heat Dissipation | 40 BTU/h |
Operating Temperature | 32–104°F (0–40°C) |
Storage Temperature | -31–158°F (-35–70°C) |
Humidity | 10–90% non-condensing |
Noise Level Fanless | 0 dBA |
Operating Altitude | Up to 7,400 ft (2,250 m) |
Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Hardware plus 1 Year 24x7 FortiCare and FortiGuard UTP Bundle (FG-60E-BDL-950-12)

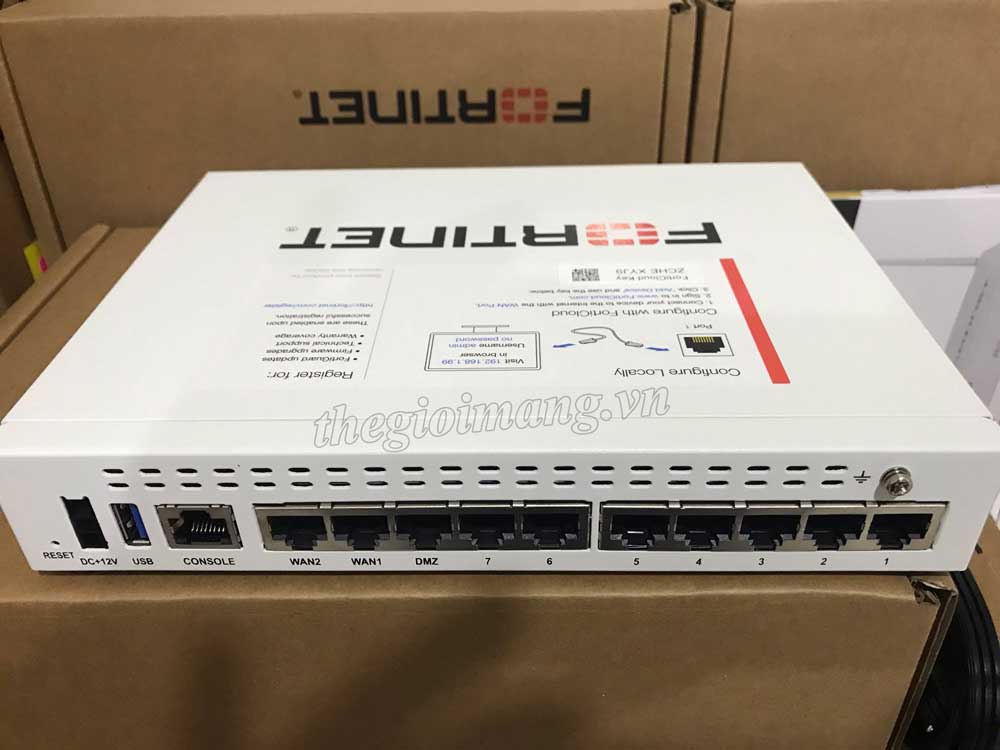

- Hardware: 10x GE RJ45 ports (including 7x Internal ports, 2x WAN ports, 1x DMZ port). Maximum managed FortiAPs (Total / Tunnel) 30 / 10.
- Unified (UTP) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
