Features	Performance and scalability
Supervisor	Supervisor Engine-1XL
Centralized wired capacity	Up to 1.44 Tbps
Per-slot switching Capacity	240 Gbps – C9404R
	120 Gbps – C9407R
	80 Gbps – C9410R
Total number of MAC addresses	Up to 64,000^*
Total number of IPv4 routes (ARP plus learned routes)	Up to 144,000^*3
FNF entries (v4/v6)	Up to 384,000/192,000
DRAM	16 GB
Flash	10 GB
VLAN IDs	4096
SSD capacity	960 GB
Total Switched Virtual Interfaces (SVIs)	4,000
Jumbo frame	9198 bytes
Forwarding rate	● 900 Mpps for IPv4
Forwarding rate	● 782.6 Mpps for IPv6 (@95 byte)
IPv4 routing entries	Up to 144,000^*3
IPv6 routing entries	Up to 56,000^*
Multicast routes	Layer 2 up to 16,000^*
Multicast routes	Layer 3 up to 32,000^*
QoS hardware entries	Up to 18,000
Security ACL hardware entries	Up to 18,000
Packet buffer	96 MB

Cisco Catalyst 9400 Supervisor Engine Bandwidth per Slot for Different Chassis

Supervisor Engine	Cisco Catalyst C9404R chassis	Cisco Catalyst C9407R chassis	Cisco Catalyst 9410R chassis
Supervisor Engine-1XL	240 Gbps per slot	120 Gbps per slot	80 Gbps per slot

Network Essentials and Advantage Package Features

Features	Network Essentials	Network Advantage
Switch fundamentals	✓	✓
Layer 2, Routed Access (RIP, EIGRP Stub, OSPF - 1000 routes),PBR, PIM Stub Multicast (1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1x, Macsec-128, CoPP, SXP, IP SLA Responder, SSO
Advanced switch capabilities and scale	✗	✓
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, IP SLA, OSPF
Network segmentation	✗	✓
VRF, VXLAN, LISP, SGT, MPLS, mVPN
Automation	✓	✓
Netconf, Restconf, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)
Telemetry and visibility	✓	✓
Model-driven telemetry, sampled NetFlow, SPAN, RSPAN
High availability and resiliency	✗	✓
NSF, GIR,ISSU
IoT integration	✗	✓
CoAP
Security	✗	✓
MACsec-256

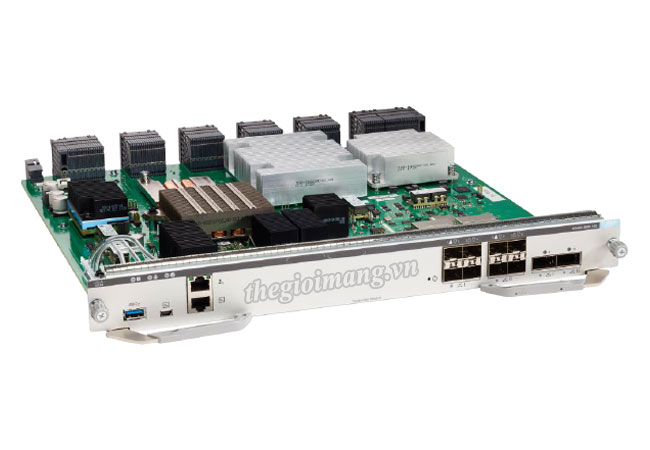

Cisco Catalyst 9400 Series Supervisor 1XL Module Features

The following illustration shows the front view of Cisco Catalyst 9400 Series Supervisor 1XL Module, and the accompanying table describes the major features of the supervisor module.

Figure 2. Cisco Catalyst 9400 Series Supervisor 1XL Module

Call Out No.

Feature

Description

USB Type A Host Port

This USB port is a host port for an external USB disk drive. It supports USB verions 3.0, 2.0, 1.1, and 1.0.

See USB Type A Host Port

USB mini Type B Console Port

This USB port can be used as a console port, allowing attachment to PCs that are not equipped with an RS-232 interface.

See Console Ports

10/100/1000 Ethernet Management Port (RJ-45 connector)

The Ethernet management port is a Layer 3 host port to which you can connect a PC. By default, the Ethernet management port is enabled. You can use the Ethernet management port instead of the switch console port for network management. This port is not active while the switch is operating normally.

Note

When connecting a PC to the Ethernet management port, you must assign an IP address.

See Ethernet Management Port

Console port (RJ-45 connector)

This is an RS-232 serial or console port for system management.

See Console Ports

RESET switch (recessed)

The RESET switch is used to reset and restart the switch.

Note

The reset switch is recessed into the front panel. Use a paper clip or a small, pointed object to press the RESET switch.

1-GigabitEthernet (GE) or 10-GE uplink ports

The supervisor module has eight 1-GE or 10-GE ports. These ports require either small form-factor pluggable (SFP) or SFP+ transceivers. Ports are numbered 1 to 8.

See Uplink Ports

RFID

Supervisor module Radio Frequency Identifier (RFID).

The supervisor module has a built-in, front-facing, passive RFID tag that uses Ultra High Frequency (UHF) RFID technology and requires an RFID reader with compatible software. It provides auto-identification capabilities for asset management and tracking. The RFID tags are compatible with the Generation 2 GS1 EPC Global Standard and are ISO 18000-6C compliant. They operate in the 860- to 960-MHz UHF band. For more information, see Radio Frequency Identification (RFID) on Cisco Catalyst 9000 Family Switches.

40-GE uplink ports

The supervisor module has two 40-GE ports. These ports use QSFP transceivers. Ports are numbered 9 and 10.

See Uplink Ports

Model Number

Supervisor module model number.

Supervisor slot indicator

Bar on the fan tray front panel that indicates the supervisor slots in a chassis.

The ICON reference guide published at the following location provides a ready reference to the ICONs used on the faceplate:http://www.cisco.com/c/dam/en/us/td/docs/switches/lan/catalyst_icon/switch_icon_ref.pdf

Data sheet Cisco Catalyst 9400 Supervisor Engine Modules
