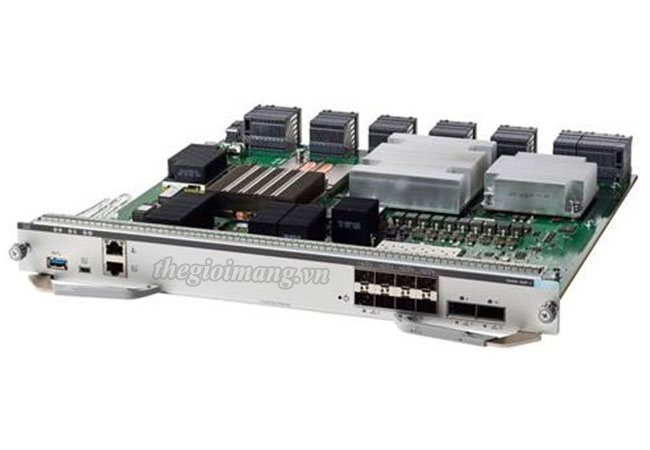

Thiết bị mạng Cisco C9400-SUP-1 Catalyst 9400 Series Supervisor 1 Module
Features | Performance and scalability |
Supervisor | Supervisor Engine-1 |
Centralized wired capacity | Up to 1.44 Tbps |
Per-slot switching Capacity | 80 Gbps |
Total number of MAC addresses | Up to 64,000 |
Total number of IPv4 routes (ARP plus learned routes) | Up to 112,0001 |
FNF entries (v4/v6) | Up to 384,000/192,000 |
DRAM | 16 GB |
Flash | 10 GB |
VLAN IDs | 4096 |
SSD capacity | 960 GB |
Total Switched Virtual Interfaces (SVIs) | 4,000 |
Jumbo frame | 9198 bytes |
Forwarding rate | ● 900 Mpps for IPv4 |
● 782.6 Mpps for IPv6 (@95 byte) | |
IPv4 routing entries | Up to 112,0001 |
IPv6 routing entries | Up to 56,0002 |
Multicast routes | Up to 16,000 |
QoS hardware entries | Up to 18,000 |
Security ACL hardware entries | Up to 18,000 |
Packet buffer | 96 MB |
Cisco Catalyst 9400 Supervisor Engine Bandwidth per Slot for Different Chassis
Supervisor Engine | Cisco Catalyst C9404R chassis | Cisco Catalyst C9407R chassis | Cisco Catalyst 9410R chassis |
Supervisor Engine-1 | 80 Gbps per slot | 80 Gbps per slot | 80 Gbps per slot |
Network Essentials and Advantage Package Features
Features | Network Essentials | Network Advantage |
Switch fundamentals | ✓ | ✓ |
Layer 2, Routed Access (RIP, EIGRP Stub, OSPF - 1000 routes),PBR, PIM Stub Multicast (1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1x, Macsec-128, CoPP, SXP, IP SLA Responder, SSO | ||
Advanced switch capabilities and scale | ✗ | ✓ |
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, IP SLA, OSPF | ||
Network segmentation | ✗ | ✓ |
VRF, VXLAN, LISP, SGT, MPLS, mVPN | ||
Automation | ✓ | ✓ |
Netconf, Restconf, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python) | ||
Telemetry and visibility | ✓ | ✓ |
Model-driven telemetry, sampled NetFlow, SPAN, RSPAN | ||
High availability and resiliency | ✗ | ✓ |
NSF, GIR,ISSU | ||
IoT integration | ✗ | ✓ |
CoAP | ||
Security | ✗ | ✓ |
MACsec-256 |
The following figure shows the front view of Cisco Catalyst 9400 Series Supervisor 1 Module, with the major features identified.
Figure 1. Cisco Catalyst 9400 Series Supervisor 1 Module
The following table describes the major features of the supervisor module in the serial number order called out in Figure 1:
Call Out No. |
Feature |
Description |
||
---|---|---|---|---|
1 |
USB Type A Host Port |
This USB port is a host port for an external USB disk drive. It supports USB versions 3.0, 2.0, 1.1, and 1.0. |
||
2 |
USB mini Type B Console Port |
This USB port can be used as a console port, allowing attachment to PCs that are not equipped with an RS-232 interface. See Console Ports. |
||
3 |
10/100/1000 Ethernet Management Port (RJ-45 connector) |
The Ethernet management port is a Layer 3 host port to which you can connect a PC. By default, the Ethernet management port is enabled. You can use the Ethernet management port instead of the switch console port for network management. This port is not active while the switch is operating normally.
|
||
4 |
Console port (RJ-45 connector) |
This is an RS-232 serial or console port for system management. See Console Ports |
||
5 |
RESET switch (recessed) |
The RESET switch is used to reset and restart the switch.
|
||
6 |
1-GigabitEthernet (GE) or 10-GE uplink ports |
The supervisor module has eight 1-GE or 10-GE ports. These ports require either small form-factor pluggable (SFP) or SFP+ transceivers. Ports are numbered 1 to 8. See Uplink Ports |
||
7 |
RFID |
Supervisor module Radio Frequency Identifier (RFID). The supervisor module has a built-in, front-facing, passive RFID tag that uses Ultra High Frequency (UHF) RFID technology and requires an RFID reader with compatible software. It provides auto-identification capabilities for asset management and tracking. The RFID tags are compatible with the Generation 2 GS1 EPC Global Standard and are ISO 18000-6C compliant. They operate in the 860- to 960-MHz UHF band. For more information, see Radio Frequency Identification (RFID) on Cisco Catalyst 9000 Family Switches. |
||
8 |
40-GE uplink ports |
The supervisor module has two 40-GE ports. These ports use QSFP transceivers. Ports are numbered 9 and 10. See Uplink Ports |
||
9 |
Model Number |
Supervisor module model number. |
||
10 |
Supervisor slot indicator |
Bar on the fan tray front panel that indicates the supervisor slots in a chassis. |
The ICON reference guide published at the following location provides a ready reference to the ICONs used on the faceplate:http://www.cisco.com/c/dam/en/us/td/docs/switches/lan/catalyst_icon/switch_icon_ref.pdf
