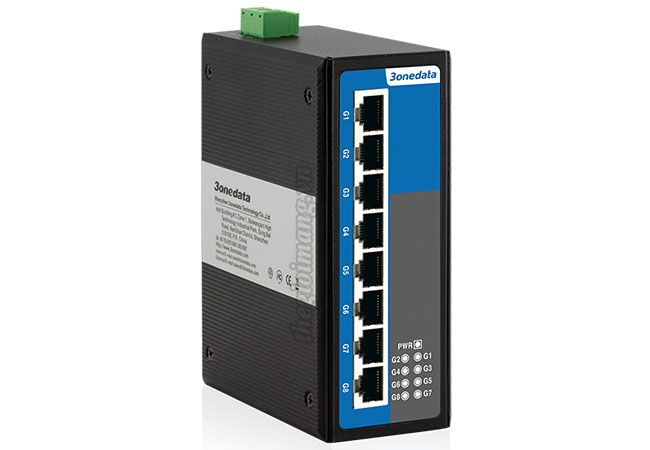

3Onedata ES208G : Layer 2, 8x1G Copper, 12~48VDC Unmanaged Industrial Ethernet Switch
Thiết bị chuyển mạch 3Onedata ES208G
| Model | ES208G |
|---|---|
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T |
| Interface | 8 x Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning |
| LED Indicator | Power Supply Indicator, Port Indicator |
| Switch Property | Transmission mode: Store and Forward MAC address: 8K Packet buffer size: 2.5Mbit Backplane bandwidth: 20G Switch time delay: < 10μs |
| Power Requirement | 12~48VDC, 3-pin 7.62mm pitch terminal blocks Nonpolarity, reverse polarity protection |
| Power Consumption | No-load: 0.82W@24VDC Full-load: 3.65W@24VDC |
| Environmental Limit | Operating temperature range: -25~70℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 53×110×138mm Weight: 616g |
| Industrial Standard | EC 61000-4-2 (ESD) ，Level 2 Air discharge: ±4kV Contact discharge: ±4kV IEC 61000-4-5 (Surge), Level 2 Power supply: common mode ±1kV, differential mode ±0.5kV Ethernet port: ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS |
