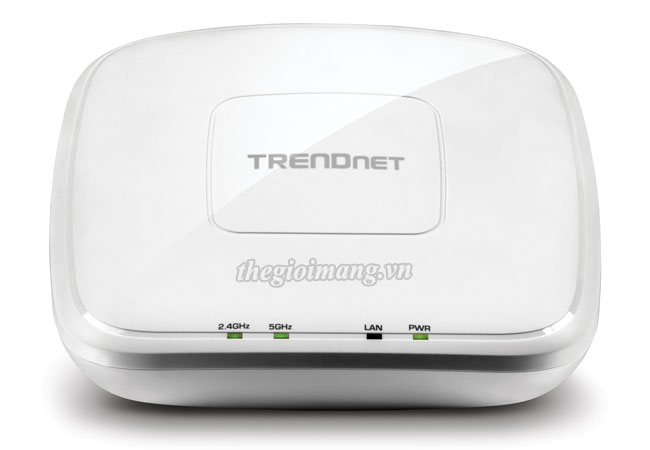

Access Point Trendnet TEW-825DAP

Trendnet TEW-825DAP : ● High performance AC1750 PoE+ access point ● AC1750: concurrent 1300 Mbps WiFi AC + 450 Mbps WiFi N bands ● Access Point, Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes ● Gigabit PoE+ LAN port ● Off-white low profile housing ● Ceiling / wall mounting plate
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị phát sóng Wifi Trendnet TEW-825DAP

Model TEW-825DAP
Standards
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 450 Mbps)
  • IEEE 802.11ac (up to 1300 Mbps)
Hardware Interface
  • 1 x PoE+ Gigabit LAN port
  • Power port (optional non-PoE installation)
  • Reset button
  • LED indicators
  • Mounting plate
Special Features
  • IP30 rated housing (with mounting plate installed)
  • Concurrent Dual band
  • Band Steering
  • WiFi traffic shaping
  • 802.1Q VLAN assignment per SSID
  • IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC / DHCPv6)
  • Multi-Language interface, English, French, Spanish, German, Russian
  • LEDs on / off
  • Captive Portal (Coovachilli)
Operation Modes
  • Access Point
  • Client
  • WDS AP
  • WDS Bridge
  • WDS Station
  • Repeater
  • Web based management
  • Software Utility
  • SNMP v1 / v3
  • STP
  • Event logging
  • Ping test
  • Traceroute
  • CLI
Utility OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Access Control
  • Wireless encryption: WEP, WPA / WPA2-PSK, WPA / WPA2-RADIUS
  • MAC filter
  • Maximum client limit
QoS
  • WMM
  • Traffic shaping per SSID
SSID
  • Up to 8 SSIDs per wireless band (16 total)
Frequency
  • 2.4 GHz: 2.412 - 2.472 GHz
  • 5 GHz: 5.180 – 5.825 GHz
Wireless Channels
  • 2.4 GHz: FCC: 1-11, ETSI: 1 – 13
  • 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100,104,108,112,116, 132, 136, 140)**
Modulation
  • DBPSK / DQPSK / CCK for DSSS technique
  • BPSK / QPSK / 16-QAM / 64-QAM / 256-QAM for OFDM technique
Antenna Gain
  • 2.4 GHz: 3 x 4 dBi
  • 5 GHz: 3 x 4 dBi
  • 802.11a: FCC: 23 dBm, ETSI: 21 dBm (Max.) / -65 dBm (typical) @ 54 Mbps
  • 802.11b: FCC: 22 dBm (Max.), CE: 8 dBm (Max) / -83 dBm (typical) @ 11 Mbps
  • 802.11g: 17 dBm (Max.), CE: 10 dBm (Max.) / -65 dBm (typical) @ 54 Mbps
  • 802.11n: FCC: 17 dBm (Max.), CE: 11 dBm (Max.) / -61 dBm (typical) @ 450 Mbps 2.4 GHz
  • 802.11n: FCC: 23 dBm, CE: 21 dBm (Max.) / -61 dBm (typical) @ 450 Mbps 5 GHz
  • 802.11ac: FCC: 23 dBm, CE: 21 dBm (Max.) / -54 dBm (typical) @ 1300 Mbps
Power
  • Input: 100 – 240 V AC, 50 - 60 Hz / Output: 12 V DC, 1.5 A external power adapter (non-PoE installation)
  • Consumption: 12.5 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 95 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.)
Weight
  • 416 g (14.7 oz.)
