Thông số kỹ thuật Switch Allied Telesis 8000S/24
| Physical Specifications | |
| Width | 440 mm (17.3 in) |
| Depth | 257 mm (10.1 in) |
| Height | 43 mm (1.7 in) |
| Mounting | 19 in Rack-mount |
| Weight | 3.15 kg (6.94 lb) |
| Performance | |
| Throughput | 9.52Mbpps |
| Switching Capacity | 12.8Gbps |
| MTBF | 233,997 hours in standalone operation 221,210 hours in stacked operation |
| Latency | |
| 10Mbit | 85.39 µsec |
| 100Mbit | 17.49 µsec |
| 1000Mbit | 2.72 µsec |
| Status Indicators | |
| RAM | 64MB |
| Flash memory | 16MB |
| CPU | 400Mhz |
| VLAN | 4096 |
| MAC address | 8000 |
| Packet buffer memory | 1Mbit |
| Redundancy Standards | - IEEE 802.1D Spanning-Tree Protocol - IEEE 802.1W Rapid Spanning-Tree - IEEE 802.1s Multiple Spanning-Tree BPDU guard1 - IEEE 802.3adLACP link aggregation (with up to eight members per group and up to eight groups per device) - Static port trunk |
| Quality of Services (QoS) | - QoS in Layer 2 (IEEE 802.1p compliant Class of Service) - Traffic prioritization using IEEE 802.1p, ToS, DSCP fields - Map IEEE 802.1p priorities to CoS queues to prioritize traffic at egress - Strict Scheduling and Weighted Round Robin |
| VLANs | - IEEE 802.1Q VLAN tagging - Up to 256 VLANs - Port-based VLANs - MAC-based VLANs - Private VLANs - GARP VLAN Registration Protocol (GVRP) |
| Multicast Standards | - RFC 1112: IGMP snooping (ver. 1) - RFC 2236: IGMP snooping (ver. 2) - RFC 3376: IGMP snooping (ver. 3) - RFC 3376 IGMP querier |
| IPv6 | - QoS - ACL - Host - RFC 2461 IPv6 neighbor discovery - RFC 2463 ICMPv6: Internet Control Message Protocol version 6 - RFC 1981 Path MTU discovery Dual-stack IPv4/IPv6 protocol - Tunnelling over IPv4 - Network management - Applications: WEB/SSL Telnet server/SSH, AAA/Radius, Management ACLs, SNTP, PING, TFTP/Copy, Syslog |
| Management and Monitoring | WEB, CLI, Serial |
| Power Characteristics | |
| Voltage input | 100-240V AC |
| Voltage output | 12vDC |
| Current | 1.5A |
| Power consumption | 26.5W |
| Power supply efficiency | 78.46% |
| Heat dissipation | 184.41 BTU/hour |
| Clock frequency | 166MHz |
| Acoustic noise | 14.9dB |
| Environmental Specifications | |
| Operating temp | 0°C to 40°C (32°F to 104°F) |
| Storage temp | -25°C to 70°C (-13°F to 158°F) |
| Relative humidity | 10% to 90% non-condensing |
| Storage humidity | 5% to 95% non-condensing |
| Operating altitude Max | 3,000m (9,843ft) |

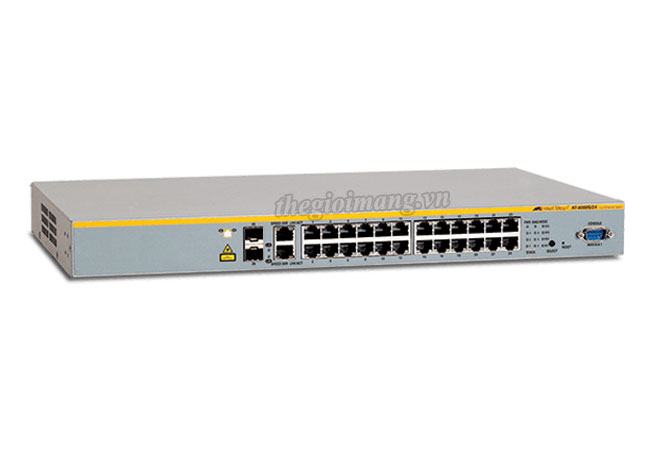

AT-8000S/24 24-port stackable 10/100TX Layer 2 switch with 2 active SFP bays (unpopulated) and 2 standby 10/100/1000T ports (RJ-45)
Data sheet Allied Telesis 8000S Series Fast Ethernet Managed Switches
