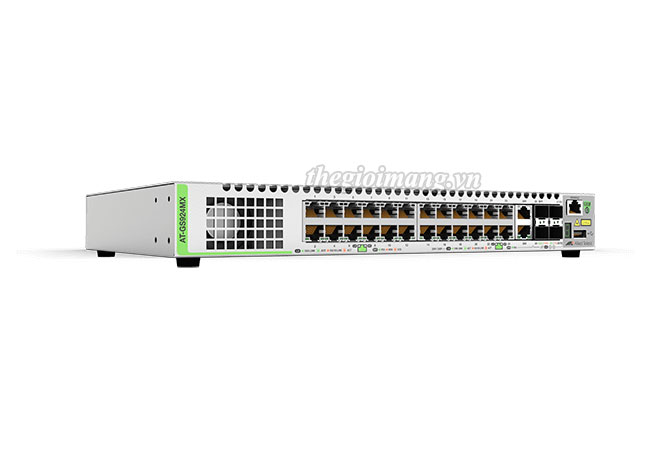

Allied Telesis GS924MX : 24-port 10/100/1000T stackable switch with 2 combo ports (10/100/1000T or 100/1000X SFP) and 2 SFP+ stacking/user ports
Thông số kỹ thuật Switch Allied Telesis GS924MX
| Performance | |
| 40Gbps of stacking bandwidth | |
| Supports 9216 bytes jumbo frames | |
| Wirespeed multicasting | |
| Up to 16K MAC addresses | |
| 512MB DDR SDRAM | |
| 64MB flash memory | |
| Switching Fabric | 92 Gbps |
| Forwarding Rate | 68.44 Mpps |
| Interface connections | |
| 10/100/1000T (RJ-45) COPPER PORTS | 24 |
| COMBO (100/1000X SFP PORTS OR 10/100/1000T, RJ-45 PORTS) | 2 |
| 10 GIGABIT SFP+ PORTS OR 10 GIGABIT STACKING PORTS | 2 |
| Power characteristics | |
| MAX POWER CONSUMPTION (W) NO POE LOAD | 30.7 |
| MAX HEAT DISSIPATION (BTU/HR) NO POE LOAD | 104.6 |
| MAX POWER CONSUMPTION (W) FULL POE+ LOAD | |
| MAX HEAT DISSIPATION (BTU/HR) FULL POE+ LOAD | |
| Standard and compliance | |
| IEEE 802.2 | Logical Link Control (LLC) |
| IEEE 802.3 | Ethernet |
| IEEE 802.3ab | 1000BASE-T |
| IEEE 802.3af | Power over Ethernet (PoE) |
| IEEE 802.3at | Power over Ethernet plus (PoE+) |
| IEEE 802.3ae | 10 Gigabit Ethernet |
| IEEE 802.3u | 100BASE-X |
| IEEE 802.3x | Flow control - full-duplex operation |
| IEEE 802.3z | 1000BASE-X |
| Environmental Specifications | |
| Operating ambient temp | 0°C to 50°C |
| Storage temp | -25°C to 70°C |
| Operating humidity | 5% to 90% non-condensing |
| Storage humidity | 5% to 95% non-condensing |
| Physical Characteristics | |
| Dimensions | 48 x 30 x 13 cm |
| Weight | 3.7 Kg |
