Thiết bị chuyển mạch Switch Allied Telesis AT-IA810M
Model | AT-IA810M |
10/100Tx (Rj-45) Copper Ports | 8 |
100FX (SC) Ports | 2 |
Total Ports | 10 |
Switching Fabric | 2Gbps |
Forwarding Rate | 1.488Mpps |
Physical Specifications | |
Width X Depth X Height | 58 x 100 x 130 mm (2.28 x 3.94 x 5.12 in) |
Weight | 0.67 kg (1.48 lb) |
Max Power Consumption | 7.5W |
Max Heat Dissipation | 25.59 BTU/h |
Noise | Fanless |
Protection Rate | IP30 |
Performance | Packet Buffer 512Kbytes MAC address 8K entries Simultaneous VLANs 256 VLANs ID range 1 – 4094 |
Environmental Specifications | Operating temperature range: Vertical locating: 0°C to 60°C (32°F to 140°F) Horizontal locating: 0°C to 50°C (32°F to 122°F) Storage temperature range: -20°C to 70°C (-4°F to 158°F) Operating humidity range: Less than 80% non-condensing Storage humidity range: 5% to 95% non-condensing |

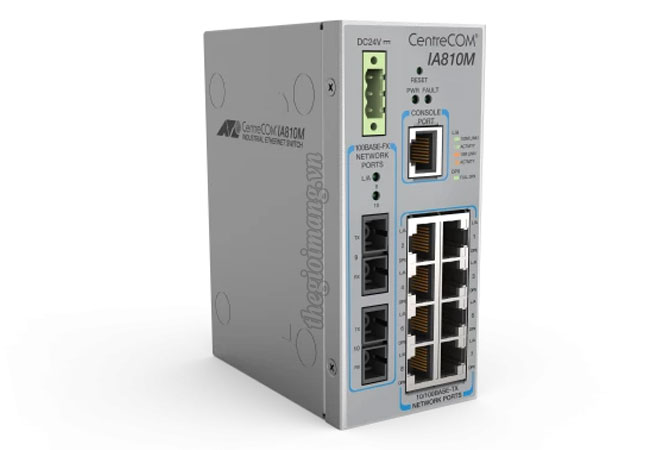

AT-IA810M : L2 industrial managed switch with 8 10BASE-T/100BASE-TX ports and 2 100BASE-FX(SC) ports.
Data sheet Allied Telesis AT-IA810M Fast Ethernet Layer 2 Industrial Managed Switch
