Thông số kỹ thuật Switch Allied Telesis IS130
| Specifications | |
| 10/100/1000T (RJ-45) COPPER PORTS | 5 |
| 100/1000XSFP PORTS | 1 |
| POE+ ENABLED PORTS | 4 |
| SWITCHING FABRIC | 12Gbps |
| FORWARDING RATE | 8.93Mpps |
| Performance | Up to 2K MAC addresses Packet buffer memory: 128KB Supports 9,216 bytes jumbo frames |
| Environmental Specifications | |
| Operating temperature range | 40°C to 75°C (-40°F to 167°F) |
| Storage temperature range | 40°C to 85°C (-40°F to 185°F) |
| Physical Specifications | |
| WIDTH X DEPTH X HEIGHT | 30 x 95 x 140 mm |
| WEIGHT | 500 g |
| Power Characteristics | |
| INPUT VOLTAGE 48Vdc | MAX POWER CONSUMPTION (NO POE LOAD) : 14.0 W |
| MAX HEAT DISSIPATION (NO POE LOAD) : 47.9 BTU/h | |
| MAX POWER CONSUMPTION (FULL POE LOAD) : 74.0 W | |
| MAX HEAT DISSIPATION (FULL POE LOAD) : 47.9 BTU/h | |
| INPUT VOLTAGE 54Vdc | MAX POWER CONSUMPTION (NO POE LOAD) : 19.6W |
| MAX HEAT DISSIPATION (NO POE LOAD) : 66.9 BTU/h | |
| MAX POWER CONSUMPTION (FULL POE LOAD) : 109.6W | |
| MAX HEAT DISSIPATION (FULL POE LOAD) : 66.9 BTU/h | |
| Standards and Protocols | IEEE 802.2 Logical Link Control (LLC) IEEE 802.3 Ethernet IEEE 802.3ab 1000BASE-T IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet plus (PoE+) IEEE 802.3u 100BASE-X IEEE 802.3x Flow control (FDX) IEEE 802.3z 1000BASE-X |

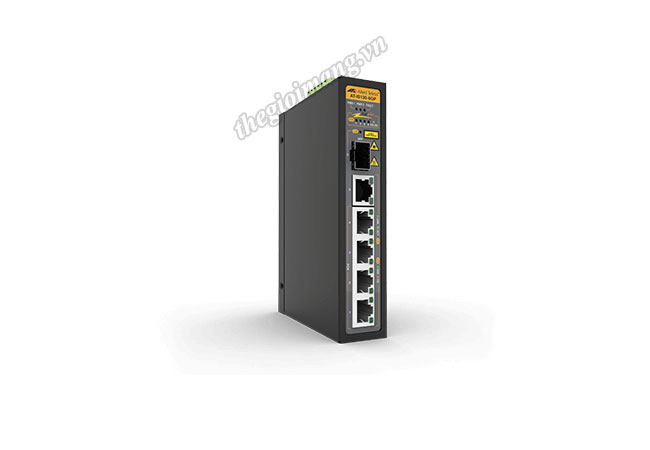

AT-IS130-6GP-80 Industrial un-managed Layer 2 Switch,PoE+ support
