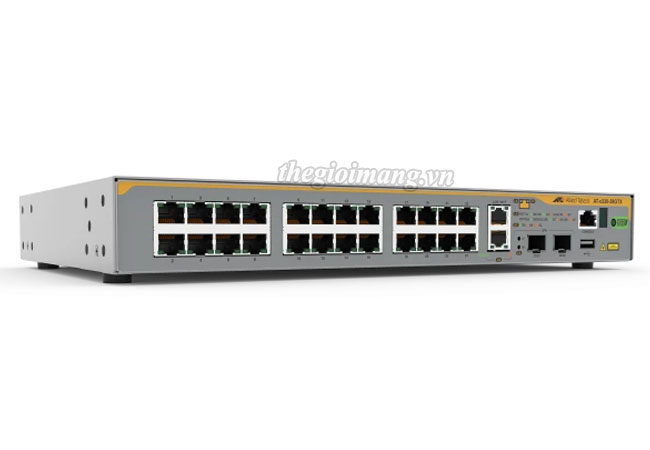

Allied Telesis AT-x330-28GTX Gigabit Layer 3 Access Switch :
Thiết bị chuyển mạch Switch Allied Telesis AT-x330-28GTX
Model | AT-x330-28GTX |
10/100/1000T (RJ-45) Copper Ports | 24 |
1/2.5/5/10GT Copper Ports | 2 |
1/10G SFP+ Port | 2 |
Total Ports | 28 |
Switching Fabric | 128Gbp |
Forwarding Rate | 95.2Mpps |
Performance | • Supports 10KB L2 jumbo frames for 2.5G connections, or 12KB for all other connection speeds • Wire speed multicasting • 4094 configurable VLANs • 16K MAC addresses • 1GB DDR3 SDRAM, 256MB NAND flash memory • Packet buffer memory: 2MB |
IPv4 Features | • Equal Cost Multi Path (ECMP) routing • Static unicast and multicast routing for IPv4 • UDP broadcast helper (IP helper) • Directed broadcast forwarding • Black hole routing • DNS relay • Route redistribution (OSPF and RIP) • Policy-based routing |
Environmental Specifications | • Operating temperature range: 0°C to 50°C • Storage temperature range: -25°C to 70°C • Operating relative humidity range: 5% to 90% non-condensing • Storage relative humidity range: 5% to 95% non-condensing • Operating altitude: 3,048 meters maximum |
Width X Depth X Height | 341 x 231 x 44 mm |
Mounting | Rack-mount |
Weight | 3.1 kg |
AT-x330-28GTX : 24-port 10/100/1000T switch, with 2 x 1/2.5/5/10G copper port, 2 x SFP/SFP+ port, and 1 fixed PSU.
Data sheet Allied Telesis x330 Series Gigabit Layer 3 Access Switches
