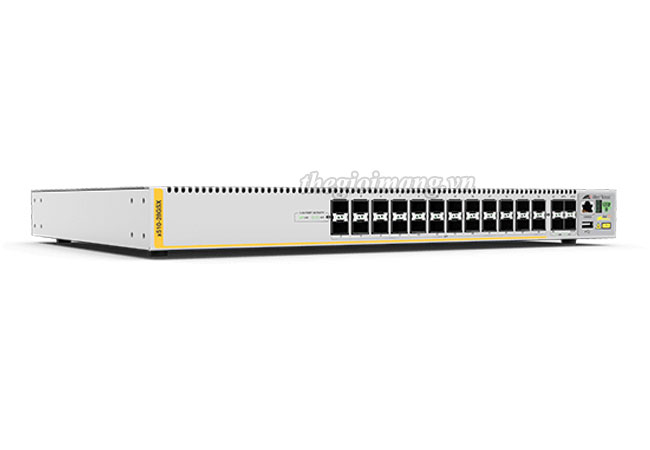

Name: Allied Telesis AT-x510-28GSX
Brand: Allied Telesis
SKU: AT-x510-28GSX
Rating: 5 (14 reviews)

Hỗ trợ trực tuyến

Hỗ trợ Tư Vấn

0909648899

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

Thông số kỹ thuật Switch Allied Telesis x510-28GSX

Specifications
0/100/1000T (RJ-45) COPPER PORTS
100/1000XSFP PORTS	24
1/10 GIGABIT SFP+ PORTS	4 (2 if stacked)
10 GIGABIT STACKING PORTS	2
POE+ ENABLED PORTS
SWITCHING FABRIC	128Gbps
FORWARDING RATE	95.2Mpps
Performance	40Gbps of stacking bandwidth Supports 13KB jumbo frames Wirespeed multicasting 4094 configurable VLANs Up to 16K MAC addresses Up to 256 OpenFlow v1.3 entries Up to 1K multicast entries Routes: 2K (IPv4), 256 (IPv6) Up to 128 Link Aggregation Groups (LAGS) - any combination of static and dynamic (LACP) 512MB DDR SDRAM, 64MB flash memory Packet buffer memory: AT-x510-28 - 2MB
Environmental Specifications
Operating temperature range: 0°C to 45°C (32°F to 113°F)
Storage temperature range: -25°C to 70°C (-13°F to 158°F)
Physical Specifications
WIDTH X DEPTH X HEIGHT	440 x 325 x 44 mm
WEIGHT	4.8 kg
Power and Noise Characteristics
MAX POWER CONSUMPTION (NO POE LOAD)	74W
MAX HEAT DISSIPATION (NO POE LOAD)	252 BTU/h
MAX POWER CONSUMPTION (FULL POE LOAD)
MAX HEAT DISSIPATION (FULL POE LOAD)
Standards and Protocols	IEEE 802.2 Logical Link Control (LLC) IEEE 802.3 Ethernet IEEE 802.3ab1000BASE-T IEEE 802.3adStatic and dynamic link aggregation IEEE 802.3ae10 Gigabit Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) IEEE 802.3azEnergy Efficient Ethernet (EEE) IEEE 802.3u 100BASE-X IEEE 802.3x Flow control – full-duplex operation IEEE 802.3z 1000BASE-X
