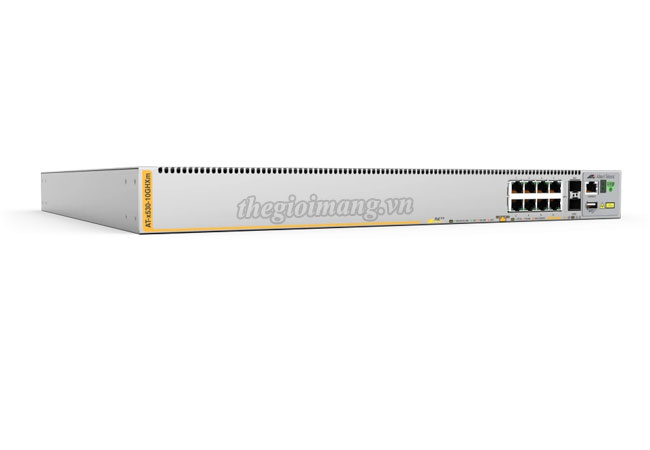

Allied Telesis AT-x530-10GHXm

Allied Telesis AT-x530-10GHXm Stackable Multi-Gigabit Layer-3 Switch :

  • 8 x 100M/1/2.5/5G PoE++ ports
  • 2 x SFP+ ports/Stacking Ports
  • PoE power 720W
  • 2 fixed power supplies
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Allied Telesis AT-x530-10GHXm

Model AT-x530-10GHXm
100M/1/2.5/5 Gigabit Ports • 8
1/10 Gigabit SFP+ Ports • 2
Stacking Ports • 2
POE Enabled Ports • 8
Switching Fabric • 120Gbps
Forwarding Rate • 89.2Mpps
Performance • 40Gbps of stacking bandwidth when using front panel 10G SFP+ ports
• 10KB L2 and 9KB L3 Jumbo frames
• 4094 configurable VLANs
• Up to 16K MAC addresses
• Up to 128 Link Aggregation Groups (LAGS) - any combination of static and dynamic (LACP)
• 1GB DDR3 SDRAM, 256MB NAND flash memory
• Packet buffer memory: 1.5MB
Environmental Specifications • Operating temperature range: 0°C to 50°C (32°F to 122°F)
• Storage temperature range: -25°C to 70°C (-13°F to 158°F)
• Operating relative humidity range: 5% to 90% non-condensing
• Storage relative humidity range: 5% to 95% non-condensing
• Operating altitude: 3,048 meters maximum (10,000 ft)
Physical Specifications
Width X Depth X Height • 441 x 421 x 44 mm
Weight • 6.6 kg
Power and Noise Characteristics
PSUs Installed • Internal
No Poe Load • Max Power Consumption (W) : 73
• Max Heat Dissipation (Btu/h) : 249
• Noise (dba) : 37
Full Poe+ Load • Max Power Consumption (W) : 970
• Max Heat Dissipation (Btu/h) : 3309
• Noise (dba) : 37
Max Poe Power (W) • 720

AT-x530-10GHXm : 8-port 100M/1/2.5/5G PoE++ stackable switch with 2 SFP+ ports and 2 fixed power supplies.

Data sheet Allied Telesis x530 Series Stackable Multi-Gigabit Layer 3 Switches
