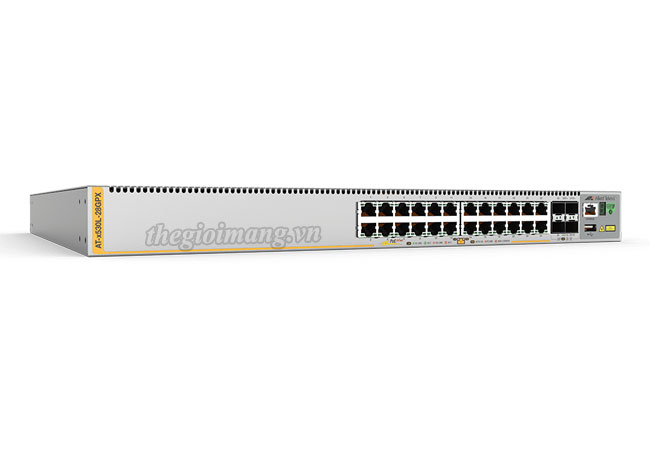

Name: Allied Telesis AT-x530L-28GPX
Brand: Allied Telesis
SKU: AT-x530L-28GPX
Rating: 5 (11 reviews)

Hỗ trợ trực tuyến

Hỗ trợ Tư Vấn

0909648899

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

Thông số kỹ thuật Switch Allied Telesis x530L-28GPX

Performance	40Gbps of stacking bandwidth using front panel 10G SFP+ ports Supports 10KB jumbo frames Wirespeed multicasting 4094 configurable VLANs 16K MAC addresses Up to 1250 OpenFlow v1.3 entries 1GB DDR3 SDRAM, 256MB NAND flash memory Packet buffer memory: 3MB
Environmental Specifications
Operating temperature range: 0°C to 50°C (32°F to 122°F)
Storage temperature range: -25°C to 70°C (-13°F to 158°F)
Product Specifications
10/100/1000T (RJ-45) COPPER PORTS	24
1/10 GIGABIT SFP+ PORTS	4
STACKING PORTS	2
POE+ ENABLED PORTS	24
SWITCHING FABRIC	128Gbps
FORWARDING RATE	95.2Mpps
Physical Specifications
WIDTH X DEPTH X HEIGHT	441 x 421 x 44 mm
WEIGHT	6.2 kg
Power and Noise Characteristics
MAX POWER CONSUMPTION (NO POE LOAD)	70W
MAX HEAT DISSIPATION (NO POE LOAD)	239BTU/H
MAX POWER CONSUMPTION (FULL POE LOAD)	890W
MAX HEAT DISSIPATION (FULL POE LOAD)	3037BTU/H
Standards and Protocols	IEEE 802.2 Logical Link Control (LLC) IEEE 802.3 Ethernet IEEE 802.3ab1000BASE-T IEEE 802.3ae10 Gigabit Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet up to 30W (PoE+) IEEE 802.3azEnergy Efficient Ethernet (EEE) IEEE 802.3u 100BASE-X IEEE 802.3x Flow control - full-duplex operation IEEE 802.3z 1000BASE-X
