Thông số kỹ thuật Switch Allied Telesis x530L-28GTX
| Performance | 40Gbps of stacking bandwidth using front panel 10G SFP+ ports Supports 10KB jumbo frames Wirespeed multicasting 4094 configurable VLANs 16K MAC addresses Up to 1250 OpenFlow v1.3 entries 1GB DDR3 SDRAM, 256MB NAND flash memory Packet buffer memory: 3MB |
| Environmental Specifications | |
| Operating temperature range: 0°C to 50°C (32°F to 122°F) | |
| Storage temperature range: -25°C to 70°C (-13°F to 158°F) | |
| Product Specifications | |
| 10/100/1000T (RJ-45) COPPER PORTS | 24 |
| 1/10 GIGABIT SFP+ PORTS | 4 |
| STACKING PORTS | 2 |
| POE+ ENABLED PORTS | |
| SWITCHING FABRIC | 128Gbps |
| FORWARDING RATE | 95.2Mpps |
| Physical Specifications | |
| WIDTH X DEPTH X HEIGHT | 441 x 323 x 44 mm |
| WEIGHT | 4.4 kg |
| Power and Noise Characteristics | |
| MAX POWER CONSUMPTION (NO POE LOAD) | 39W |
| MAX HEAT DISSIPATION (NO POE LOAD) | 133 BTU/H |
| MAX POWER CONSUMPTION (FULL POE LOAD) | |
| MAX HEAT DISSIPATION (FULL POE LOAD) | |
| Standards and Protocols | IEEE 802.2 Logical Link Control (LLC) IEEE 802.3 Ethernet IEEE 802.3ab1000BASE-T IEEE 802.3ae10 Gigabit Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet up to 30W (PoE+) IEEE 802.3azEnergy Efficient Ethernet (EEE) IEEE 802.3u 100BASE-X IEEE 802.3x Flow control - full-duplex operation IEEE 802.3z 1000BASE-X |

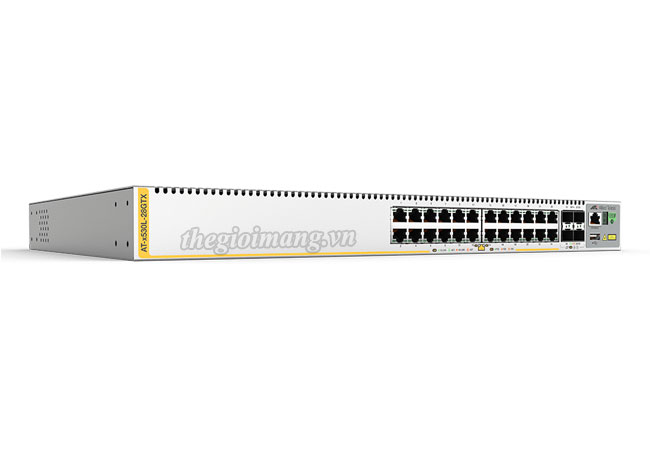

AT-x530L-28GTX 24-port 10/100/1000T stackable switch with 4SFP+ ports and 2 fixed power supplies
