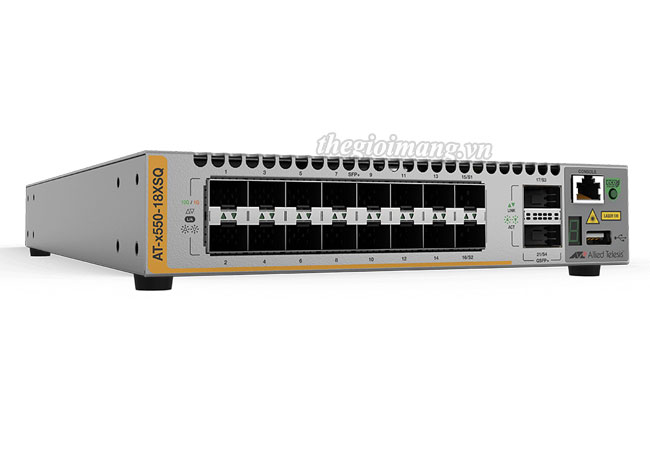

Name: Allied Telesis AT-x550-18XSQ
Brand: Allied Telesis
SKU: AT-x550-18XSQ
Rating: 5 (15 reviews)

Hỗ trợ trực tuyến

Hỗ trợ Tư Vấn

0909648899

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

Thông số kỹ thuật Switch Allied Telesis x550-18XSQ

Specifications
1G/10G (RJ-45) COPPER PORTS
1G/2.5G/5G/10G (RJ-45) COPPER PORTS
1G/10G SFP+ PORTS	16
40G QSFP PORTS	2
ENABLED PORTS MAX POE+
SWITCHING FABRIC	480Gbps
FORWARDING RATE	357.1Mpps
Performance	160Gbps of stacking bandwidth Supports jumbo frames › 12.3KB at 1G, 10G, 40G › 6.5KB at 2.5G › 10.0KB at 5G Wirespeed multicasting 4094 configurable VLANs Up to 16K MAC addresses Up to 256 multicast entries Up to 128 Link Aggregation Groups (LAGS) - any combination of static and dynamic (LACP) 1024MB DDR SDRAM, 1024MB flash memory Packet buffer memory: 4MB
Environmental Specifications	Operating temperature range: 0°C to 45°C (32°F to 113°F) Storage temperature range: -25°C to 70°C (-13°F to 158°F)
Physical Specifications
WIDTH X DEPTH X HEIGHT	210 mm x 346 mm x 44 mm
WEIGHT	3.2 kg
Power Characteristics
MAX POWER CONSUMPTION (NO POE LOAD)	111W
MAX HEAT DISSIPATION (NO POE LOAD)	378 BTU/h
MAX POWER CONSUMPTION (FULL POE LOAD)
MAX HEAT DISSIPATION (FULL POE LOAD)
Standards and Protocols	IEEE 802.2 Logical Link Control (LLC) IEEE 802.3 Ethernet IEEE 802.3ab 1000BASE-T IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3an 10GBASE-T IEEE 802.3at Power over Ethernet Plus (PoE+) IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3ba 40GBASE-X IEEE 802.3bz 2.5GBASE-T and 5GBASE-T IEEE 802.3x Flow control - full-duplex operation IEEE 802.3z 1000BASE-X IEEE 1588v2 Precision clock synchronization protocol v2
