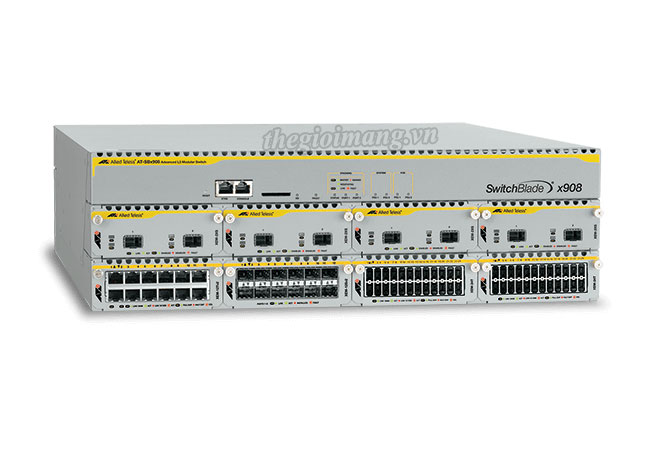

Switch Allied Telesis SwitchBlade x908 : Advanced Layer 3 modular switch chassis 8 x high speed expansion bays
Thông số kỹ thuật Switch Allied Telesis SwitchBlade x908
| Performance | 357Mpps forwarding rate Extensive wirespeed traffic classification for ACLs and QoS Supports 10KB Jumbo frame size for data center and server aggregation applications Wirespeed multicasting 640Gbps Switching Fabric Up to 16K MAC addresses (64K in Extended Mode) Up to 4K Layer 2 multicast entries Up to 1K Layer 3 IPv4 multicast entries 4K VLANs 512MB DDR SDRAM Separate packet buffer memory 64MB Flash Memory |
| Physical Specifications | |
| WIDTH X DEPTH X HEIGHT | 440 x 456 x 132 mm |
| WEIGHT | 14.32 kg |
| Power Characteristics | |
| MAX POWER CONSUMPTION (ONE AC PSU) | 675W |
| MAX HEAT DISSIPATION (ONE AC PSU) | 2305 BTU/hr |
| MAX POWER CONSUMPTION (TWO LOAD-SHARING AC PSUs) | 700W |
| MAX HEAT DISSIPATION (TWO LOAD-SHARING AC PSUs) | 2390 BTU/hr |
| Standards and Protocols | IEEE 802.2 Logical Link Control (LLC) IEEE 802.3 Ethernet IEEE 802.3ab 1000BASE-T IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3an 10GBASE-T IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3u 100BASE-X IEEE 802.3x Flow control - full-duplex operation IEEE 802.3z 1000BASE-X |
| Modular | |
| AT-XEM-2XP | 2 x 10GbE (XFP) ports |
| AT-XEM-2 XS | 2 x 10GbE (SFP+) ports |
| AT-XEM-24T | 24 x 10/100/1000T (RJ Point 5) ports |
| AT-XEM-12Sv2 | 12 x 1000X SFP ports |
| AT-XEM -12Tv2 | 12 x 10/100/1000T (RJ-45) ports |
