Angustos AR-V08L

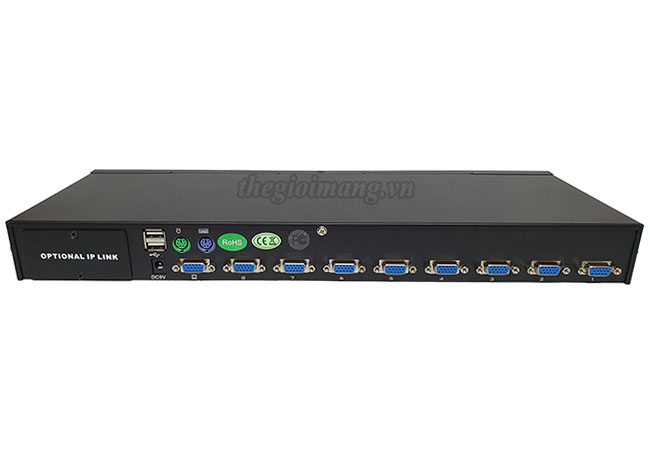

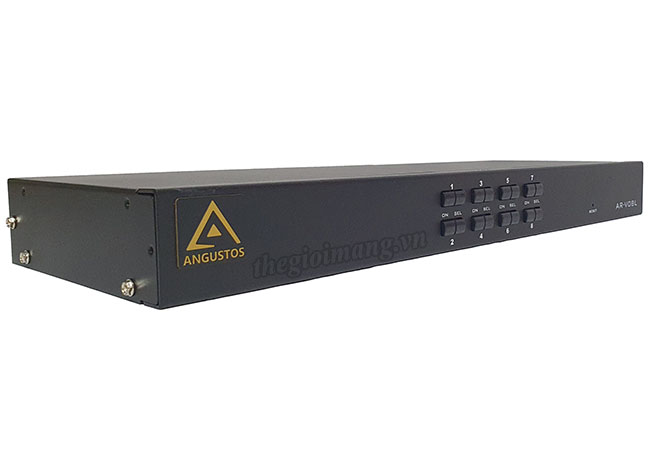

Angustos AR-V08L – 8-Port PS/2-USB VGA Rackmount KVM Switch

  • One USB console controls 8 computers.
  • Video quality: 1920x1200 (max) @60Hz; DDC2B; 16.7 Mil. Color..
  • Cascade up to 128 computers
  • No software required – Plug and Play
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị Switch KVM Angustos AR-V08L

Product AR-V08L
KVM SWITCH MODULE
Direct PC connection 08
Maximum PC Connection 128
Port Selection OSD, Button, Hot Key, IP (Opt)
Console Connector VGA - DB15 Female x 1
USB Type A Female x 2
PS/2 Female x 2
KVM Connector DB-15 Female x 04 | RJ45 (Opt)
Video Resolution 1920 x 1200 @60Hz (Max)
Power DC Jack
Switch button Button x 8
Reset Switch Semi recessed button
Status LEDs - Nixie Tube Green led (Selected Port)
Red led (Online Port)
Server Interface PS/2 , USB
OPERATIONAL SPECIFICATION
Operating Temp -10oC - 50oC
Storage Temp -20oC - 60oC
Humidity 0-80% RH, No Condensation
PHYSICAL SPECIFICATION
Housing Metal
Dimension 432 x 155 x 44 mm
Weight LCD / KVM 1.82 kg

Data sheet Angustos AR-V08L


Angustos AR-V08L – 8-Port PS/2-USB VGA Rackmount KVM Switch

High Density Utilization

  • One USB console controls 8 computers.
  • Dual interface supports with computers with PS/2 or USB keyboards and mice.
  • Short-depth overall size allowing user to work with in condensed space of high density Rack
  • Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.

Flexible compatibility

  • Superior video quality – up to  1920 x 1200 (max) @60Hz; DDC2B; 16.7 Mil. Color.
  • Cascade up to 128 computers from a single console (With compatible KVM Switches)
  • Auto PS/2 and USB interface sensing.
  • Keyboard and mouse emulation (PS/2 and USB) for seamless switching.
  • Computer selection with pushbuttons, hotkeys, and multilingual on-screen display (OSD).
  • Two level password security.
  • Operates with all software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
  • Keyboard Language supports: English (UK), English (US), German (GER.), Japanese, Korean, Russian, Swedish, Chinese.

Installation Flexibility

  • Standard rack mount kit included
  • No software required – Plug and Play
  • Supports hot-plugging.
