R1B21A - Aruba 9004 (RW) Branch Gateway :

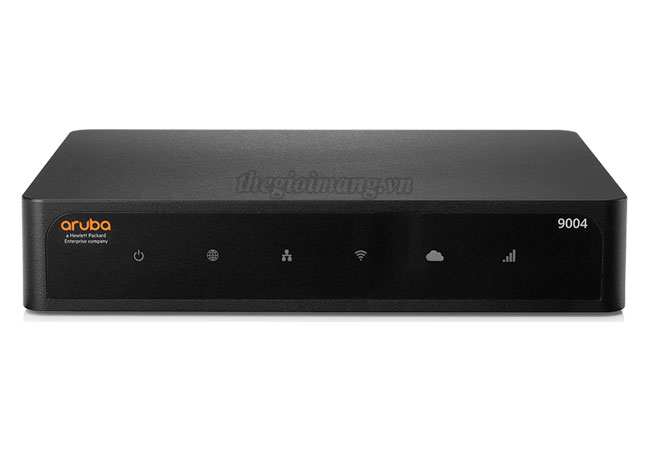

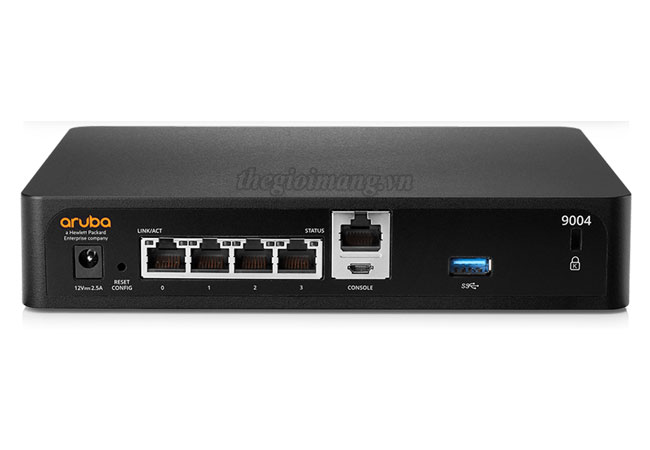

Thiết bị Gateway Aruba 9004 (R1B21A)
| Model | Aruba 9004 (R1B21A) |
| Performance And Capacity | |
| SD-Branch | √ |
| WLAN Gateway | √ |
| Sizing | Small site |
| Interfaces | 4x GbE2 |
| Power over Ethernet | X |
| Maximum campus or remote Access Points | 32 |
| Maximum clients | Up to 2,048 |
| Active Firewall sessions | 64K (128K on SD-Branch 2.3+)3 |
| Maximum concurrent users/devices | 2048 |
| Maximum VLANs | 4096 |
| Concurrent GRE tunnels | 544 |
| Concurrent IPsec sessions | 2048 |
| Concurrent SSL sessions | 2048 |
| Concurrent tunneled ports | 2048 |
| Firewall throughput (Gbps) | 4 |
| Wired bridged throughput (Gbps) | 4 |
| Encrypted throughput 3DES (Gbps) | 4 |
| Encrypted throughput AES-CBC-256 (Gbps) | 4 |
| Encrypted throughput AES-CCM (Gbps) | 2 |
| Encrypted throughput AES-GCM-256 (Gbps) | 4 |
| Interfaces And Indicators | |
| Form factor/footprint | Desktop/Fanless Optional Mount Rack Tray |
| 100/1000BASE-T | 4 |
| 10G SFP+ Ports (SFP also supported) | – |
| Bluetooth 5 | Yes |
| USB 3.0 Type-A | 1 |
| System status LED | Yes |
| WAN ports status LED | Yes |
| LAN ports status LED | Yes |
| Gateway mode LED | Yes |
| Central connectivity status LED1 | Yes |
| Cellular (LTE) status LED | Yes |
| Console port | micro USB, RJ45 |
| Physical | |
| Dimensions (H x W x D) | 3.82 cm x 19.85 cm x 15.31 cm (1.5” x 7.815” x 6.03”) |
| Weight | 1.143 kg (2.519 lbs) |
| Environmental Range | |
| Operating Temperature | 0° C to 40° C (32° C to 104° F) |
| Storage Temperature | -40° C to 70° C (-40° F to 158° F) |
| Operating Humidity | 10% to 90% (RH), non-condensing |
| Storage Humidity | 10% to 95% (RH), non-condensing |
| Operating Altitude | 10,000 feet |
| Acoustic Noise | 0 dBA (fan less) |
| Cooling | Conduction cooling |
| Maximum Power Consumption | 25W (with USB) |
| Power Source | 12v DC, 2.5A AC-to-DC power adapter |
| Power Adapter Specifications | |
| Input voltage range | 90 VAC to 264 VAC |
| Output Voltage | +12VDC, 2.5A |
| Input frequency | 47-63 Hz |
| AC line input current (steady state) | 1.0A |
| Operating Temperature | -0° to +40° C |
| Cooling | – |
| Weight | 0.28 kg (.61 lbs) |
