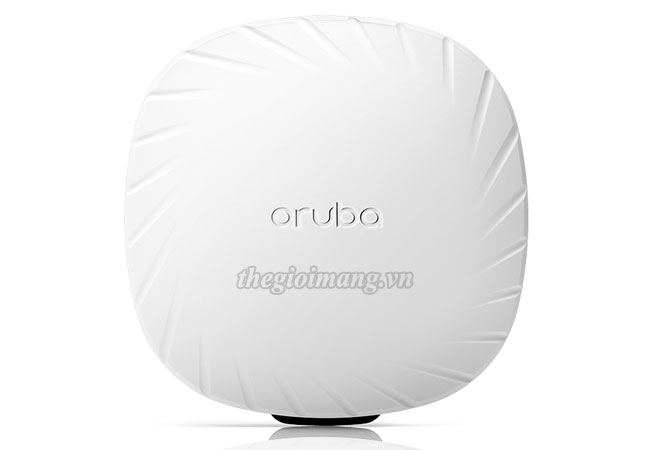

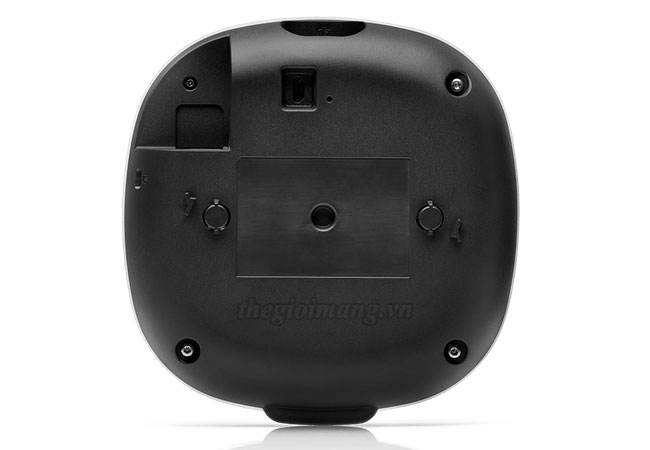

Aruba AP-503 (R8M98A)

R8M98A - Aruba AP-503 (RW) Dual Radio 2x2:2 802.11ax Wi-Fi 6 Access Point :

  • 1.49 Gbps maximum data rate
  • 1 x 10/100/1000BASE-T
  • Integrated antennas
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị Access Point Wi-Fi 6 Aruba AP-503 (R8M98A)

Model AP-503 (R8M98A)
Wi-Fi radio specifications • AP type: Indoor, dual-radio, 2.4GHz and 5GHz (dual concurrent) 802.11ax 2x2 MIMO
• 2.4GHz radio: Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices (287Mbps for HE20)
• 5GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices
• Up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
Wi-Fi antennas • Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 1.7dBi in 2.4GHz and 4.8dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
• Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 1.5dBi in 2.4GHz and 3.9dBi in 5GHz.
Other interfaces and features • E0: Ethernet wired network port (RJ-45)
 - Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX
 - POE-PD: 48Vdc (nominal) 802.3af POE (class 3 or higher)
 - 802.3az Energy Efficient Ethernet (EEE)
• USB 2.0 host interface (Type A connector)
 - Capable of sourcing up to 100mA / 500mW to an attached device
• Built-in Trusted Platform Module (TPM) for enhanced security and anti-counterfeiting
• Visual indicators (two multi-color LEDs): for System and Radio status
• Reset button: factory reset, LED mode control (normal/off)
• Serial console interface (proprietary, micro-B USB physical jack)
• Automatic thermal shutdown and recovery function
Power sources and power consumption • The AP supports Power over Ethernet (POE) on port E0
• Power sources are sold separately
• Maximum (worst-case) power consumption: 10.9W
• Maximum (worst-case) power consumption in idle mode: 4.7W
• Both numbers assume no power is drawn from the USB interface
- Drawing 0.5W from the USB interface increases max AP power consumption by up to 0.7W
Mechanical specifications • Dimensions/weight (unit with mount bracket):
 - 145mm (W) x 145mm (D) x 51mm (H)
 - 270g
• Dimensions/weight (unit without mount bracket):
 - 145mm (W) x 145mm (D) x 35mm (H)
 - 255g
• Dimensions/weight (shipping):
 - 196mm (W) x 183mm (D) x 67mm (H)
 - 515g
Environmental specifications • Operating conditions
 - Temperature: 0C to +40C
 - Relative humidity: 5% to 95%
 - ETS 300 019 class 3.2 environments
 - AP is plenum rated for use in air-handling spaces
• Storage conditions
 - Temperature: -25C to +55C
 - Relative humidity: 10% to 100%
 - ETS 300 019 class 1.2 environments
• Transportation conditions
 - Temperature: -40C to +70C
 - Relative humidity: up to 95%
 - ETS 300 019 class 2.3 environments

R8M98A : Aruba Access Point-503 (RW) Dual Radio 2x2:2 802.11ax Wi-Fi 6 Campus Access Point

Data sheet Aruba 503 Series Wi-Fi 6 Campus Access Points
