Mô tả sản phẩm

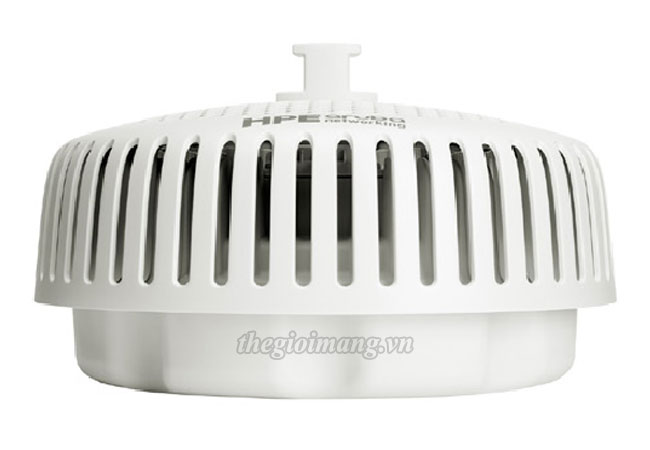

Thiết bị Wi-Fi 6E Aruba AP-679 Outdoor Access Point (S0P61A)

Model	AP-679 (S0P61A)
Wi-Fi radio specifications	• AP type: Outdoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2x2 MIMO • 2.4 GHz radio: Two spatial stream single user (SU) MIMO for up to 574 Mbps wireless data rate with 2SS HE40 802.11ax client devices • 5 GHz radio: Two spatial stream single user (SU) MIMO for up to 1.2 Gbps wireless data rate with 2SS HE80 802.11ax client devices • 6 GHz radio: Two spatial stream single user (SU) MIMO for up to 2.4 Gbps wireless data rate with 2SS HE160 802.11ax client devices • Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 8 for the 6GHz radio)
Wi-Fi antennas	• Integrated tri-band directional antennas for 2x2 MIMO with two different modes for the 5 GHz and 6 GHz antennas (a wider 90°x30° antenna, and a narrow 30°x30°) that are software provisioned. The built-in antennas are optimized for either wall/ pole vertically oriented (or with downtilt), or down-firing in a horizontally mounted orientation of the AP. The antenna beamwidth is approx. 90° x 90°. ₀ Wide 90°x30° has 7.1dBi in 5Ghz and 8.1dBi in 6Ghz (peak of 7.7dBi and 8.6dBi respectively) ₀ Narrow 30°x30° has 10.5dBi in 5Ghz and 10.1dBi in 6Ghz (peak of 11dBi and 11.2dBi respectively) ₀ 6.1dBi in 2.4GHz (approx. 90°x90°) in either mode ₀ 6.6dBi for BLE/IoT in either mode ₀ Cross-polarized antenna elements are Used
Other interfaces and features	• Wired network interface (E0) ₀ Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX ₀ 2.5 Gbps speed complies with NBASE-T and 802.3bz specifications ₀ PoE-PD: 48 Vdc (nominal) 802.3at/bt PoE (class 4 or higher) ₀ 802.3az Energy Efficient Ethernet (EEE) • Wired Network Interface (E1) ₀ SFP Fiber Port ₀ When used in operation it is expected that this is the primary uplink port ₀ Only recommended industrial temperature SFP modules should be used for optimal performance • USB 2.0 host interface (Type C connector), supporting 2A/10W maximum • USB 2.0 host interface (Type A connector), supporting 1A/5W maximum • Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio
Power sources and power consumption	• The AP supports Power over Ethernet (PoE) on port E0 • When powered by 802.3bt (class 6) PoE, the AP will operate without restrictions. • When powered by 802.3bt (class 5) PoE with the IPM feature disabled, the AP will disable the USB-C port. • With IPM enabled, the AP will start up in unrestricted mode but may dynamically apply restrictions depending on the available power budget and actual consumption. The feature restrictions and order in which these get applied are Configurable. • Operating the AP with an 802.3at (class 4) PoE with the IPM feature disabled, the AP will disable the USB ports, the SFP port, and one of the two chains on the 2.4Ghz Radio • Operating the AP with an 802.3af (class 3 or lower) PoE source is not supported (except for AP staging) • Maximum (worst-case) power consumption (without/with a USB device attached): ₀ PoE powered: 29W/45.5W. ₀ This assumes that up to 16.5W total is supplied the attached USB devices • Maximum (worst-case) power consumption in idle mode: 11W/27.5W (both USB active at max). • Maximum (worst-case) power consumption in deep-sleep mode: 3.2W (PoE).
Mechanical	• 290mm (W) x 288mm (D) x 171mm (H) • 3.8kg
Environmental specifications	• Operating conditions ₀ Temperature: -40°C to +70°C (no solar loading), -40°C to +65°C (with solar loading) ₀ Humidity: 5% to 100% non-condensing internal ₀ Rated for operation in all weather Conditions • Storage and transportation conditions ₀ Temperature: -40°C to +70°C • Operating Altitude: 3000m • Water and Dust : IP66/67 • Salt Tolerance : Test to ASTM B117-07A Salt Spray 200hrs • Wind Survival: 150mph (GR-487)
