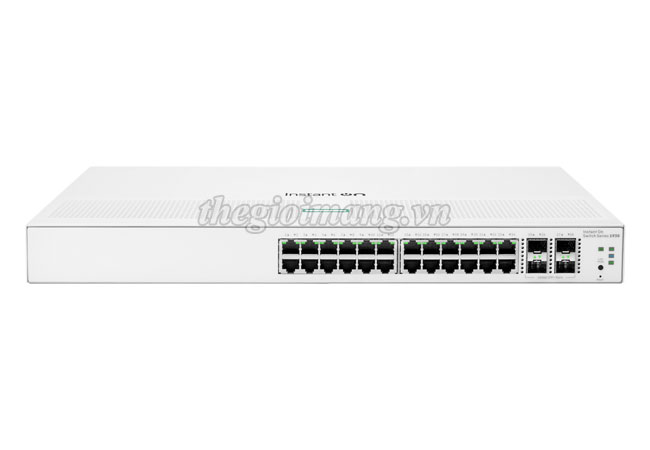

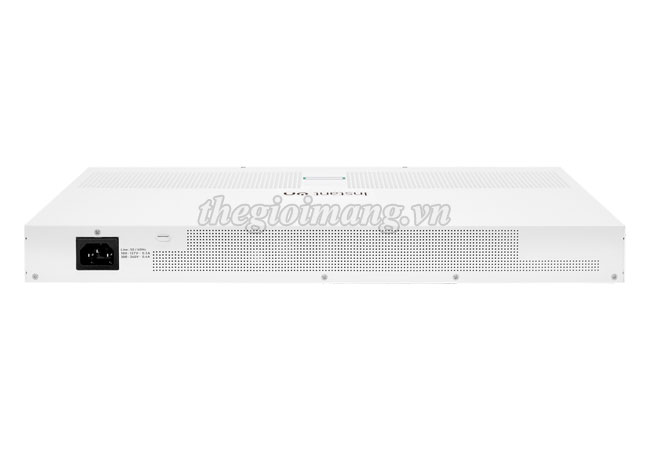

Thiết bị chuyển mạch Switch Aruba Instant On 1930 24G 4SFP/SFP+ (JL682A)
| Model | Aruba Instant On 1930 24G 4SFP/SFP+ Switch (JL682A) |
| I/O ports and slots | • 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only • 4 SFP+ 1/10GbE ports |
| Physical Characteristics | |
| Dimensions | • 44.25 x 22.15 x 4.39 cm • 1U height |
| Weight | • 2.41 kg |
| Processor and memory | • ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Performance | |
| 100 Mb Latency | • < 4.7 uSec |
| packet size | • 64B |
| 1000 Mb Latency | • <2.4 uSec |
| packet size | • 64B |
| 10000 Mb Latency | • < 1.3 uSec |
| packet size | • 64B |
| Throughput (Mpps) | • 95.23 Mpps |
| packet size | • 64B |
| switching capacity | • 128 Gbps |
| Routing Table size (# of static entries) | • 32 static entries |
| MAC Address table size (# of entries) | • 16,000 entries |
| Reliability MTBF (years) | • 158 |
| Environment | |
| Operating temperature | • 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | • 15% to 95% @ 104°F (40°C) |
| Nonoperating/Storage temperature | • -40°C to 70°C |
| Nonoperating/Storage relative humidity | • 15% to 95% @ 140°F (60°C) |
| Altitude | • up to 10,000 ft (3 km) |
| Acoustic | • Power: 0 dB no fan |
| Electrical Characteristics | |
| Frequency | • 50/60 Hz |
| AC voltage | • 100 - 127 / 200 - 240 VAC |
| Current | • 0.5/0.3 A |
| Maximum power rating | • 22.6 W |
| Idle power | • 9.3 W |
| Power Supply | • Internal power supply |
| Device Management | • Aruba Instant On solution; Web browser; SNMP Manager |
Transceivers
| R9D16A | Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver |
| J4859D | Aruba 1G SFP LC LX 10km SMF XCVR |
| J8177D | Aruba 1G SFP RJ45 T 100m Cat5e XCVR |
| R9D18A | Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver |
| J9151E | Aruba 10G SFP+ LC LR 10km SMF Transceiver |
| J9281D | Aruba 10G SFP+ to SFP+ 1m DAC |
| J9283D | Aruba 10G SFP+ to SFP+ 3m DAC |
JL682A : Aruba Instant On 1930 24G 4SFP/SFP+ Switch
