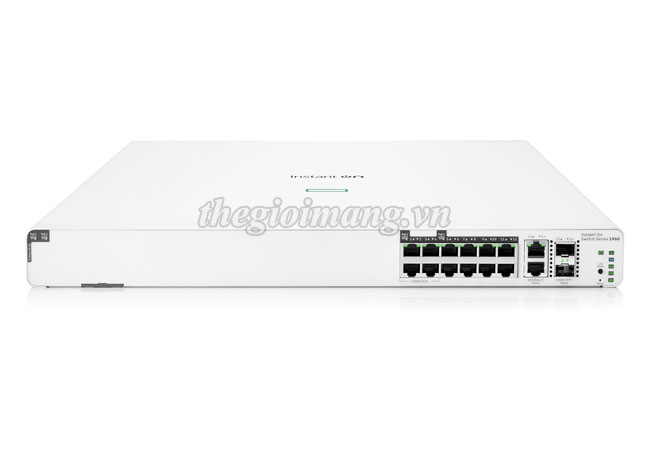

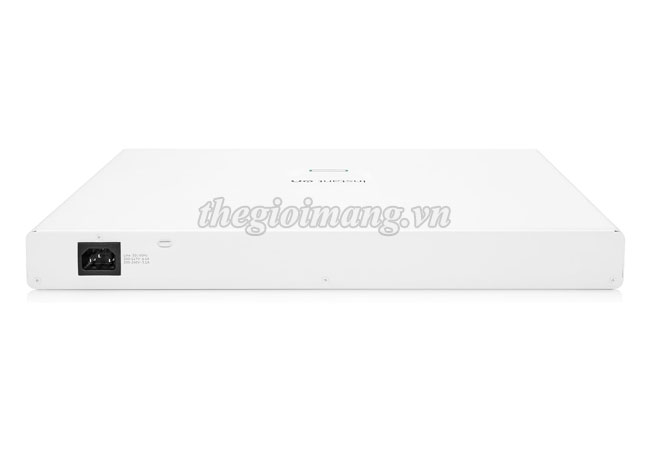

S0F35A - Bộ chuyển mạch Aruba Instant On 1960 8p 1G 4p 1G/2.5G PoE 2p 10GBASE-T 2p SFP+ 480W
Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W (S0F35A) là thiết bị chuyển mạch quản lý thông minh, được thiết kế cho các doanh nghiệp vừa và nhỏ, dễ triển khai và quản lý. Instant On 1960 giúp mở rộng dễ dàng khi quy mô doanh nghiệp phát triển về nhân viên cũng như thiết bị. Các thiết bị chuyển mạch Instant On 1960 được sản xuất để xử lý các ứng dụng băng thông lớn như hội nghị truyền hình, giúp cải thiện trải nghiệm người dùng và hiệu suất ứng dụng. HPE Networking Instant On Switch 1960 Series đáp ứng nhu cầu phát triển của doanh nghiệp, quản lý đơn giản và khả năng xử lý nhiều thiết bị, cung cấp giải pháp lý tưởng cho doanh nghiệp của bạn.
Đặc điểm nổi bật của dòng Aruba Instant On 1960
Thông số kỹ thuật
Model | Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W Switch (S0F35A) |
I/O ports and slots | • 4 RJ-45 autosensing 1G/2.5GBASE-T ports with IEEE 802.af/at/bt CL6 PoE • 8 RJ-45 autosensing 10/100/1000BASE-T ports with IEEE 802.af/at CL4 PoE (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3bz Type 2.5GBase-T, IEEE 802.an 10GBASE-T); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; 10GBASE-T: full only • 2 SFP+ 10GbE ports • 2 RJ-45 autosensing 100/1000/10GBASE-T ports |
Physical characteristics | |
Dimensions (D x W x H) | • 4.39 x 44.3 x 35 cm |
Weight | • 5.24kg |
Processor and memory | • Single-Core ARM v7 Cortex-A9 @800MHz 1GB DDR3; 512MB NAND flash; Packet buffer size: 1.5 MB |
Performance | |
100 Mb Latency | • < 4.1 uSec |
1000 Mb Latency | • < 1.8 uSec |
• < 6.7 uSec | |
10G Latency | • < 2.8 uSec |
Throughput (Mpps) | • 172 Mpps |
Maximum Stacking Capacity | • 80 Gbps |
Maximum Standalone Switching Capacity | • 116 Gbs |
Routing Table size (# of static entries) | • 992 |
MAC Address table size (# of entries) | • 16,000 entries |
Reliability MTBF (years) | • 40.8 |
Environment | |
Operating temperature | • 0-40°C, 0-10,000 ft |
Operating relative humidity | • 15% to 95% @ (40°C) noncondensing |
Nonoperating/Storage temperature | • -40°C to 70°C up to 15000 ft |
Nonoperating/Storage relative humidity | • 15000 ft |
Altitude | • up to 3 km |
Electrical characteristics | |
Frequency | • 50Hz/60Hz |
AC voltage | • 100-127VAC / 200-240VAC |
Current | • 6.4A/3.0A |
Maximum power rating | • 100-127V: 635W • 200-220V: 623W |
Idle power | • 100-127V: 34W • 200-220V: 40W |
PoE power | • 480W |
Power Supply | • Internal power supply |
Device management | • Instant On Cloud; Web browser; SNMP Manager |
Mounting Positions and Supported Racking | • Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included • Supports table-top mounting • Supports rack-mounting • Supports wall-mounting with ports facing either up or down • Supports under-table mounting using the brackets provided |
S0F35A : Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W Switch
