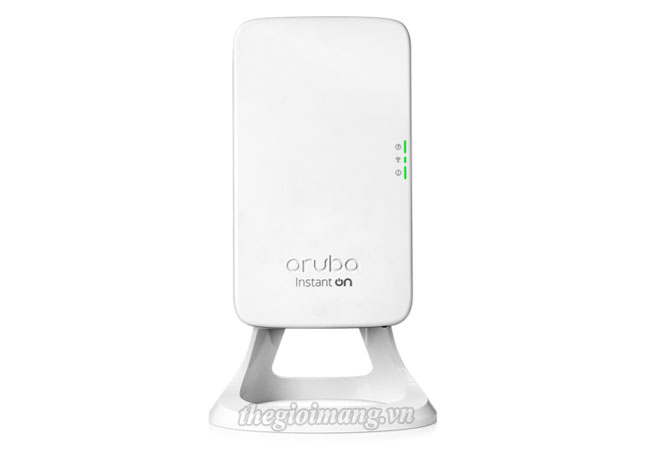

Thiết bị phát sóng Wifi Aruba Instant On AP11D (R2X16A)
Model |
AP11D (R2X16A) |
RADIOS |
- Dual Radio for simultaneous dual-band operation
- 5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
- 2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
|
INTERFACES |
- Uplink Gigabit Ethernet port (E0), with POE-in support (802.3at/802.3af)
- Downlink Gigabit Ethernet ports (E1-E3), with POE-out on E3 (802.3af) (3)
- DC power connector (48V)
- USB host interface (future use)
- Bluetooth Low Energy (BLE) radio
- LED Status indicators (3)
- Reset/LED control button
- Kensington security slot
|
PHYSICAL SPECIFICATIONS |
- 86mm x 40mm x 150mm
- Weight: 313g excluding mount accessories
|
POWER |
- Power over Ethernet (PoE) on E0: 802.3af (class 3) or 802.3at (class 4). When using 802.3af, POE-out on E3 is disabled
- Max power consumption (worst-case): 9.7W (PoE/DC) or 25.3W PoE PSE (302.3at PoE/DC)
- DC power (48V): no restrictions
- Note: Power sources are sold separately
|
ANTENNAS |
- Integrated directional antennas with maximum individual antenna gain of 4.3dBi in 2.4GHz and 6.2dBi in 5GHz
|
ENVIRONMENTAL & RELIABILITY |
- Operating Temperature: 0° C to +40° C (+32° F to +104° F)
- MTBF: 1,090khrs (124yrs) at +25° C
|
INDUSTRY CERTIFICATIONS |
- UL 2043 plenum rating
- EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
- Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3
|
MANAGEMENT OPTIONS |
- Instant On mobile application (Android & iOS)
- Cloud Portal: Portal.ArubaInstantOn.com
|
