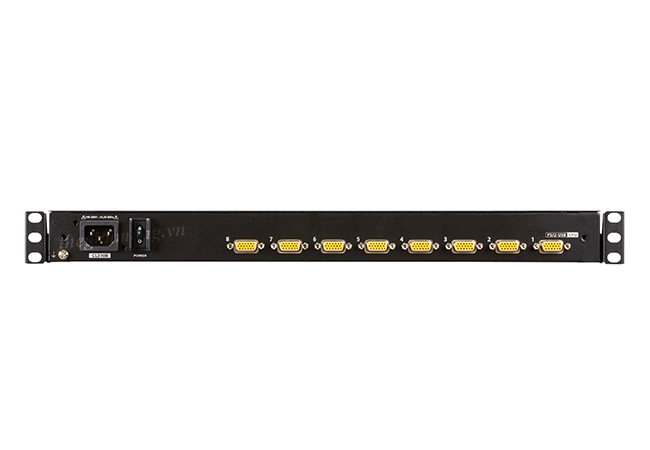

Thông số kỹ thuật KVM Aten CL3108
| Function | CL3108 | |||
| Product Code | CL3108NX: 18.5’’ LCD | |||
| Computer Connections | Direct | 8 | ||
| Max | 128 (via Daisy-chain) | |||
| Port Selection | OSD, Hotkeys, Pushbuttons | |||
| Connectors | KVM Ports | 8 x SPHD-18 Female (Yellow) | ||
| FW Upgrade | 1 x 3.5mm Audio Jack Female (Black) | |||
| Power | 1 x 3-prong AC Socket | |||
| USB Port | 1 x USB Type-A (Female) | |||
| Switches | Reset | 1 x Semi-recessed Pushbutton | ||
| Power | 1 x Rocker | |||
| Firmware Upgrade | 1 x Slide | |||
| LCD Control | 4 x Pushbutton | |||
| LCD On/Off | 1 x LED Pushbutton | |||
| Port Selection | 8 x Pushbutton (Keyboard) | |||
| LEDs | On Line | 8 (Orange) | ||
| Selected | 8 (Green) | |||
| Power | 1 x KVM Console (Dark Green) 1 x LCD (Orange) |
|||
| Lock | Num | 1 (Green) | ||
| Caps | 1 (Green) | |||
| Scroll | 1 (Green) | |||
| Emulation | Keyboard / Mouse | PS/2, USB | ||
| Video | 1920 x 1200 @ 60 Hz | |||
| Panel Spec | LCD Module | 18.5’’ TFT-LCD | ||
| Resolution | 1366 x 768 @ 60 Hz | |||
| Viewing Angle | 170° (H), 160° (V) | |||
| Scan Interval | 1-255 sec | |||
| Properties Physical | Housing | Metal + Plastic | ||
| Weight | 10.5 kg | |||
| Dimensions( L x W x H ) | 48.06 x 63.17 x 4.28 cm | |||
| Body Dimensions (L x W x H) | 44.92 x 58.4 x 4.28 cm | |||
