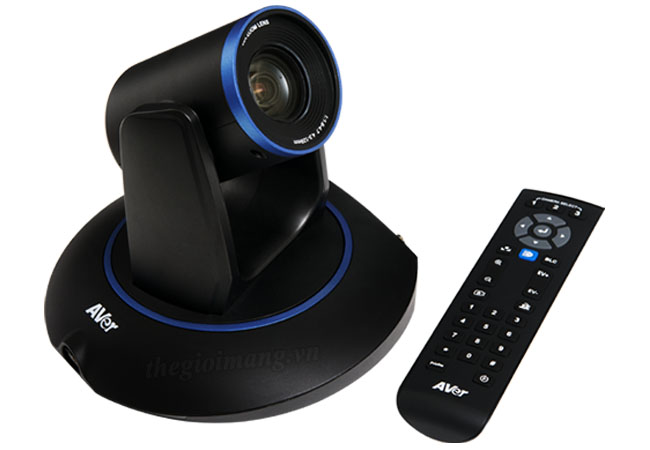

Thiết bị hội nghị truyền hình Aver PTC115
|
Mã sản phẩm |
PTC115 |
||
|
PTZ Camera |
|||
| Image sensor | 1/2.8" 60fps low lux CMOS sensor, 2 megapixels | ||
| Minimum Illumination |
IRE50: 0.47 lux (60FPS)
IRE50: 0.23 lux (30FPS)
|
||
|
Optical Zoom
|
30X | ||
|
Digital Zoom
|
12X | ||
| Lens focal length | f = 4.3 mm (wide) ~ 129 mm(tele) | ||
| Iris | F = 1.6 (wide) – 4.7 (Tele) | ||
| View of Angle | DFOV=76°(wide)~3°(Tele) | ||
| Output Resolution |
|
||
| Preset Number | 10 locations by remote (256 via RS-232) | ||
| Minimum working distance |
0.1m at Wide-End
1.2m at Tele-End(15X)
|
||
| White balance | Auto Manual (2500 - 10000) |
||
| Gain | Auto Manual |
||
| Electronic shutter | 1/5 s to 1/32,000 s | ||
| BLC (Back Light Compensation) | Off On |
||
| Exposure | Auto Shutter Priority IRIS Priority Manual |
||
| Noise Reduction |
off
low
medium
high
|
||
| Frequency |
Auto
50Hz 60Hz |
||
| S/N ratio | >50db | ||
| Horizontal resolution | Center : 800 TV Lines Corner : 600 TV Lines |
||
|
Pan Tilt Parameter |
|||
| Pan Rotation | -175°(Left) + 175°(Right) | ||
| Tilt Rotation | -30°(down) + 90°(up) | ||
| Pan Control Speed | 2°~ 50°/sec | ||
| Tilt Control Speed | 2°~ 50°/sec | ||
| Preset Speed | Pan: 160°/sec Tilt: 160°/sec |
||
|
Panoramic Camera (Full View) |
|||
| Image sensor | 1/2.8" 60fps low lux CMOS sensor | ||
| Effective picture elements | 2 megapixels | ||
| Output Resolution |
Auto
1080p/60 1080p/30 720p/60 |
||
| Lens focal length | 2.12mm | ||
| White balance | Auto | ||
| Exposure | Auto | ||
| FOV |
DFOV=120°
HFOV=110° VFOV=74.5° |
||
|
Interface/ Streaming/ Protocol |
|||
| Video Output | 3G-SDI*2 HDMI*1 IP (RJ45) |
||
| Video output capability | up to 1080P@60fps | ||
| Remote control |
RS-232
IP |
||
| Baud Rate | 115200/9600/4800/2400 bps | ||
| Network Interface | 10/100/1000Base-T Support Wake-on-LAN |
||
| Network Video Compress Format | H.264 | ||
| Network Protocol | RTSP, RTMP, ONVIF | ||
| IP video streaming | Dual video straming (PTZ and panoramic view) | ||
| Control Protocol |
VISCA
Pelco-D Pelco-P |
||
| Power | Power adapter DC 12V | ||
|
System |
|||
| Remote IR | IR sensor | ||
| Audio | PCM, AAC-LC, G.711 | ||
| LED | power (blue = on, red = off) | ||
| Security | Kensington slot | ||
| Power Adapter | AC 110V - AC 220V to DC 12V/5A | ||
| Consumption | 24 W (Max) | ||
|
Operating temperature
|
0°C ~ +40°C | ||
| Dimensions |
L=201mm
W= 210mm H= 176mm |
||
| Weight | 1.75kg | ||
| Accessory | Remote control 12V/5A power adapter quick guide |
||
| Web UI | Browser IP access (Chrome, Firefox, IE, etc.) | ||
