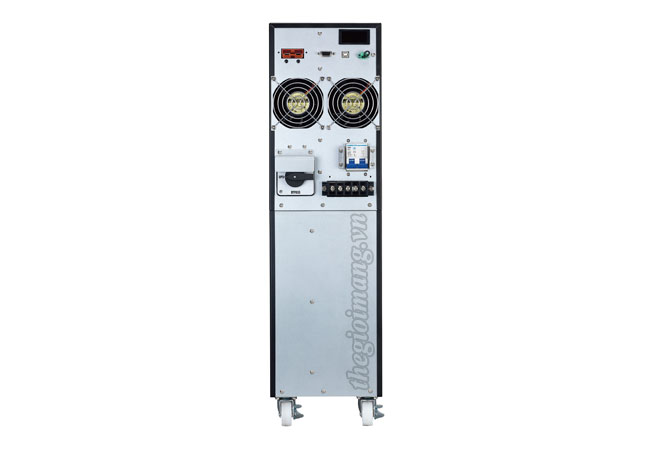

Bộ lưu điện UPS MARUSON ULT-P10K
MODEL | ULT-P10K |
CAPACITY | 10000VA/8000W |
INPUT | |
Nominal Voltage | 208/220/230/240VAC |
Voltage Range | 176~300VAC at 100% load ; 110~300VAC at 50% load |
Frequency Range | 46 ~ 54Hz or 56 ~ 64Hz |
Power Factor | ≧ 0.99 @ 100% load |
OUTPUT | |
Voltage | 208/220/230/240VAC & 120VAC available in (D) model |
Current Crest Ratio | 3:1(max.) |
Harmonic Distortion | ≦ 3% THD (linear load) |
Transfer Time | Zero |
EFFICIENCY | |
Line Mode | 90% |
Battery Mode | 89% |
BATTERY | |
Battery Type | 12V/9Ah |
Numbers | 20 PCS |
Typical Recharge Time | 8 hours recover to 90% capacity |
Charging Current | Default:1.0 A ±10% Max.:2.0 A ±10% |
Float Charging Voltage | 273 VDC ± 1% |
INDICATOR | |
LCD Panel | UPS status, load level, battery level, input/output voltage, discharge timer, and fault conditions |
MANAGEMENT | |
Smart RS-232/USB | Supports windows® 2000/2003/XP/Vista/2008/7/8/Linux/Unix/MAC |
Optional SNMP | Power management from SNMP manager and web browser |
PHYSICAL | |
Standard Model | |
Dimension (D x W x H) (mm/in) | 442 x 190 x 688 / 17.4 x 7.5 x 27.1 |
Net Weight (kg/lb) | 75/165.4 |
Long Run (L) Model | |
Dimension (D x W x H) (mm/in) | N/A |
Net Weight (kg/lb) | N/A |
