5E1600UI-EA - Bộ lưu điện UPS Eaton 5E Gen2 :

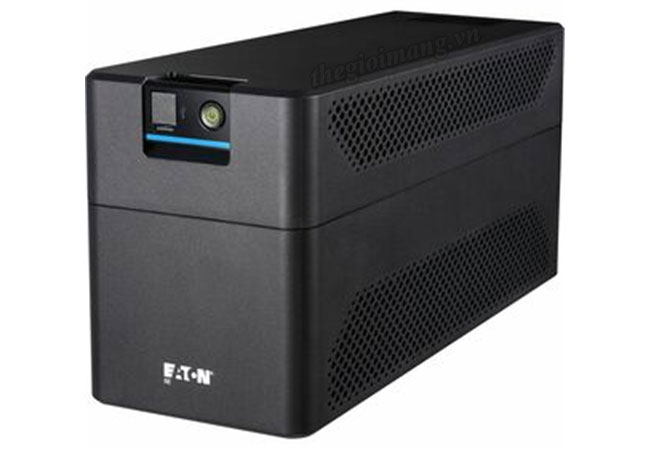

Bộ lưu điện UPS Eaton 5E1600UI-EA
| Model | 5E1600UI-EA |
| Rating (VA/W) | • 1600VA/900W |
| Electrical Characteristics | |
| Technology | • Line-interactive |
| Input nominal voltage | • 220 - 240 V |
| Input voltage windows without using battery | • 140 - 300 V |
| Output voltage | • 230V (adjustable to 220V/230V/240V) |
| Input frequency range | • 50 / 60 Hz (45 - 65 Hz working range) |
| Connection | |
| Output connection (IEC models) | • 6 IEC C13 outlets |
| Battery | |
| Typical backup time for 1 PC | • 42 min |
| Typical backup time for 2 PC | • 19 min |
| Typical backup time for 3 PC | • 8 min |
| Typical backup time for 4 PC | - |
| Battery management | • Constant battery recharge, cold start |
| Communication | |
| Communication port | • 1 USB port |
| Eaton UPS Companion software | • Available on eaton.com/downloads |
| Operating conditions, Standards and Approvals | |
| Operating temperature | • 0 to 40°C |
| Noise level | • <25dBA (line mode) • <40dBA (battery or AVR mode) |
| Certifications | • CE, CB report |
| Compliances | • IEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; T3 |
| Dimensions D x H x W / Weight | |
| UPS Dimensions (mm) | • 330x180x133 |
| UPS Weight (kg) | • 8.9 |
