PRO-1100LCD - Powerpro Line Interactive UPS Maruson :
Bộ lưu điện Powerpro Line Interactive UPS Maruson PRO-1100LCD
| MODEL | PRO-1100LCD |
| Capacity | 1100 VA / 600 W |
| INPUT | |
| Voltage | 110 / 115 / 120 VAC or 220 / 230 / 240 VAC |
| Voltage Range | 80 ~ 145 VAC or 154 ~ 280 VAC standard |
| (Optional 140 ~ 295 VAC wide range version for 220 / 230 / 240 VAC models) | |
| Frequency | 50 / 60 Hz (auto sensing) |
| OUTPUT | |
| Voltage | 110 / 115 / 120 VAC or 220 / 230 / 240 VAC |
| Frequency | 50 / 60 Hz |
| Voltage Regulation (Battery Mode) | ±10% |
| Frequency Regulation (Battery Mode) | ±1 Hz |
| Waveform (Battery Mode) | Simulated sine wave |
| BATTERY | |
| Battery Type & Number | 12 V / 7 Ah x 2 |
| Backup Time (Basic PC) | Up to 60 minutes |
| Charging Voltage | 27.4 VDC ±2% |
| Recharge Time | 5 Hours to 90% after complete discharge |
| INDICATOR | |
| Display | LCD displays UPS status, including voltage, load, and battery statuses |
| TRANSFER TIME | |
| Typical | < 6ms (typical) |
| PROTECTION | |
| AC Surge Protection | 480 Joules |

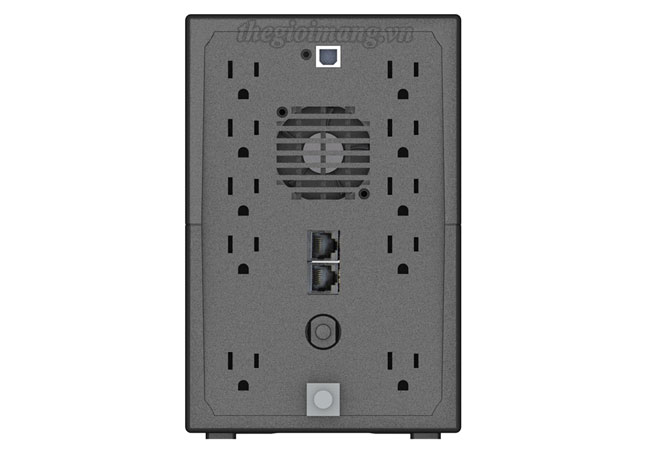

| Phone / Fax / Network Surge Protection | RJ-11 / 45 combo port (1 in & 1 out) |
| PHYSICAL | |
| Dimension (D x W x H) (mm / in) | 343 x 135 x 208 / 13.5 x 5.3 x 8.2 |
| Weight (kg / lb) | 8.1 / 17.9 |
