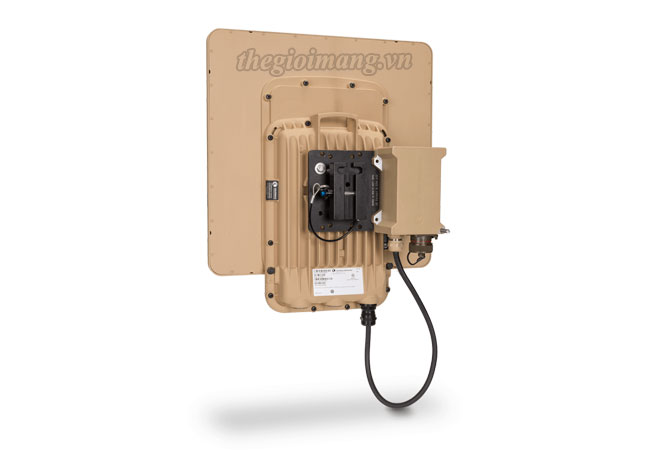

Thiết bị Wifi Cambium PTP 700
| Model | PTP 700 |
| RADIO TECHNOLOGY | |
| Rf Bands | Wide-band operation 4.4 to 5.875 GHz in a single SKU, support bands including: • NATO Band IV / NTIA Compliant (4.4 GHz to 4.99 GHz) • 4.9 GHz Public Safety Band • 5.1/5.2/5.4/5.8 GHz FCC/ETSI |
| Configuration | 1+0, 1+1 HSB; 2+0 (require external switch) |
| Channel Sizes | 5, 10, 15, 20, 30, 40, and 45 MHz channels |
| Spectral Efficiency | 10 bps/Hz maximum |
| Channel Selection | By Dynamic Spectrum OptimizationTM (DSO) or manual intervention Automatic selection on start-up and continual self-optimization to avoid interference |
| Maximum Transmit Power | Up to 29 dBm |
| System Gain | Up to 169 dB with Integrated antenna |
| Modulation / Error Correction | Fast Preemptive Adaptive Modulation featuring 13 modulation / FEC coding levels ranging from BPSK to 256 QAM dual payload MIMO |
| Duplex Scheme | Time Division Duplex (TDD) Adaptive or fixed transmit/receive duty cycles Split frequency operation allows separate transmit and receive frequencies where allowed by regulation. Optional TDD synchronization using PTP-SYNC Module |
| Antenna | Integrated Flat panel: 23 dBi Connectorized: operate with a selection of separately-purchased single and dual polarity antennas through 2 x N-type female connectors |
| Range | Up to 155 miles (250 km) |
| Security | 128/256-bit AES Encryption (optional) HTTPS and SNMPv3 , User authentication and RADIUS support Identity-based user accounts Configurable password rules Event logging and management; optional logging via syslog Disaster recovery and vulnerability management FIPS-197 compliant FIPS 140-2 Level 2 |
| ETHERNET BRIDGING | |
| Protocol | IEEE 802.3 |
| Latency | 1-3 ms one direction |
| QoS | Extensive QoS supporting up to 8 Queues (PTP mode) and 4 Queues (HCMP mode) |
| Packet Classification | Layer 2 and Layer 3 IEEE 802.1p, MPLS, Ethernet priority |
| Packet Performance | Line rate ( >850K packets per second) |
| Timing Transport | Synchronous Ethernet; IEEE 1588v2 |
| Frame Support | PTP Mode: Jumbo frame up to 9600 bytes, HCMP Mode: 2000 bytes per frame |
| Flexible I/O | 2 x Gigabit Ethernet copper ports: • Gigabit Port 1: Data + PoE power input • Gigabit Port 2: 802.3at PoE output port • 1 x SFP port: single-mode fiber, multi-mode fiber or copper Gigabit Ethernet options available |
| T1/E1 TDM Support | 8 x T1/E1 TDM (Network Indoor Unit (NIDU)), G.823-compliant timing DC power input (compatible with AC+DC Power Injector output) |
| MANAGEMENT | |
| Network Management | In-band and out-of-band management (OOBM) |
| System Management | IPv6/IPv4 dual-stack management support Web access via browser using HTTP or HTTPS/TLS3 SNMP v1, v2c and v3, MIB-II and proprietary PTP MIB Online spectrum analyzer (no impact on payload traffic or network operation |
| Installation | Built-in audio and graphical assistance for link optimization |
