CPAP-SG3800-SNBT - Firewall Check Point Quantum 3800 Security Gateway : ● 5x 10/100/1000 Base-T ports ● RJ45 console port ● Management 10/100/1000 Base-T port ● USB Type-C console port ● 2x USB 3.0 ports ● 2x connectors to external power supply adaptors

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

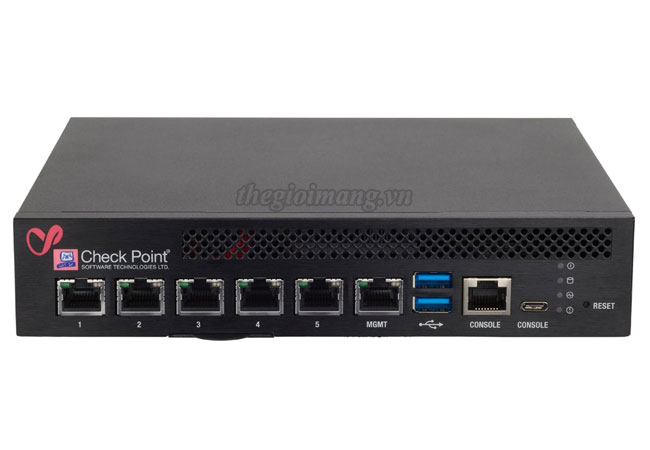

Thiết bị tường lửa Firewall Check Point Quantum 3800 Security Gateway (CPAP-SG3800-SNBT)

Model	3800 Security Gateway (CPAP-SG3800-SNBT)
Performance
Enterprise Test Conditions
Threat Prevention (Gbps)	1.5
NGFW (Gbps)	3
IPS (Gbps)	3.3
Firewall (Gbps)	3.6
RFC 3511, 2544, 2647, 1242 PERFORMANCE (LAB)
Firewall 1518B UDP (Gbps)	4
VPN AES-128 (Gbps)	2.75
Connections/sec	60,000
Concurrent connections	4M
Additional Features
Highlights	1x CPUs, 8 physical cores 1x 240 GB SSD storage 16 GB memory Virtual Systems (maximum): 10
Content Security
First Time Prevention Capabilities	CPU-level, OS-level and static file analysis File disarm and reconstruction via Threat Extraction Average emulation time for unknown files that require full sandbox evaluation is under 100 seconds Maximal file size for Emulation is 100 MB Emulation OS Support: Windows XP, 7, 8.1, 10
Applications	Use 8,000+ pre-defined or customize your own applications Accept, prevent, schedule, and apply traffic-shaping
Data Loss Prevention	Classify 700+ pre-defined data types End user and data owner incident handling
Dynamic User-based Policy	Integrates with Microsoft AD, LDAP, RADIUS, Cisco pxGrid, Terminal Servers and with 3rd parties via a Web API Enforce consistent policy for local and remote users on Windows, macOS, Linux, Android and Apple iOS platforms
Network
Network Connectivity	Total physical and virtual (VLAN) interfaces per appliance: 1024/4096 (single gateway/with virtual systems) 802.3ad passive and active link aggregation Layer 2 (transparent) and Layer 3 (routing) mode
High Availability	Active/Active L2, Active/Passive L2 and L3 Session failover for routing change, device and link failure ClusterXL or VRRP
IPv6	NAT66, NAT64, NAT46 CoreXL, SecureXL, HA with VRRPv3
Unicast and Multicast Routing (see SK98226)	OSPFv2 and v3, BGP, RIP Static routes, Multicast routes Policy-based routing PIM-SM, PIM-SSM, PIM-DM, IGMP v2, and v3
Physical
Power Requirements	Single Power Supply rating: 40W AC power input: 100 to 240V (47-63Hz) Power consumption avg/max: 21W/25W Maximum thermal output: 85 BTU/hr.
Dimensions	Enclosure: Desktop Dimensions (WxDxH): 8.3 x 8.3 x 1.65 in. (210 x 210 x 42mm) Weight: 3.1 lbs. (1.4 kg)
Environmental Conditions	Operating: 0° to 40°C, humidity 5 to 95% Storage: –20° to 70°C, humidity 5 to 95%
Certifications	Safety: UL, CB, CE, TUV GS Emissions: FCC, CE, VCCI, RCM/C-Tick Environmental: RoHS, WEEE, REACH1, ISO14001

Next Generation Threat Prevention & SandBlast Package

CPSB-SNBT-3800-1Y	Next Generation Threat Prevention and Sandblast for additional 1 year for 3800 Base Appliance
CPSB-SNBT-3800-2Y	Next Generation Threat Prevention and Sandblast for additional 2 years for 3800 Base Appliance
CPSB-SNBT-3800-3Y	Next Generation Threat Prevention and Sandblast for additional 3 year for 3800 Base Appliance

Next Generation Threat Prevention Package

CPSB-NGTP-3800-1Y	Next Generation Threat Prevention for additional 1 year for 3800 Base Appliance
CPSB-NGTP-3800-2Y	Next Generation Threat Prevention for additional 2 year for 3800 Base Appliance
CPSB-NGTP-3800-3Y	Next Generation Threat Prevention for additional 3 year for 3800 Base Appliance

Next Generation Firewall Package

CPSB-NGFW-3800-1Y	Next Generation Firewall Package for additional 1 year for 3800 Base Appliance
CPSB-NGFW-3800-2Y	Next Generation Firewall Package for additional 2 year for 3800 Base Appliance
CPSB-NGFW-3800-3Y	Next Generation Firewall Package for additional 3 year for 3800 Base Appliance

CPAP-SG3800-SNBT : 3800 Security Gateway Configuration, includes 6x 1GbE copper ports, 16 GB RAM, 1 240 GB SSD, 1 external AC power adaptor, SandBlast (SNBT) Security Subscription Package for 1 Year

Data sheet Check Point Quantum 3800 Security Gateway
