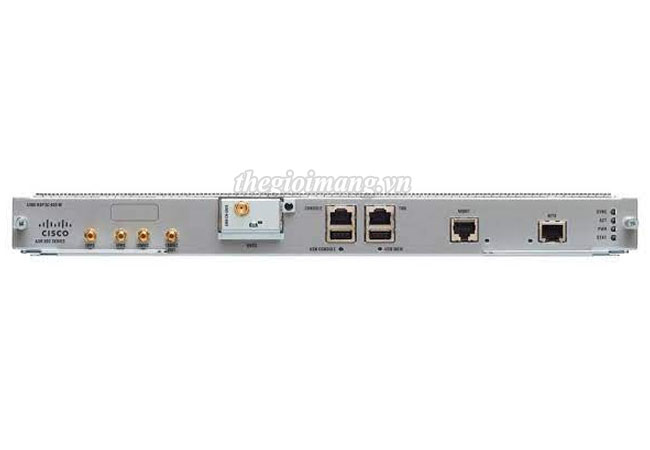

Thiết bị Cisco Route Switch Processor A900-RSP3C-400-W
|
Product Code |
A900-RSP3C-400-W= |
|
Power consumption of chassis with 2 power supplies, 1 fan tray, and 1 RSP |
480W |
|
RSP memory (DRAM) |
8 GB |
|
Flash memory (storage) |
8 GB |
|
Service scale |
Large |
|
Ethernet interface module compatibility |
A900-IMA1C A900-IMA2F A900-IMA8Z A900-IMA2Z A900-IMA1X A900-IMA8S A900-IMA8S1Z A900-IMA8T A900-IMA8T1Z A900-IMA1Z8SCXMS |
|
TDM and ATM interface module compatibility |
A900-IMA1Z8S-CX A900-IMA48D-C A900-IMA48T-C A900-IMA3G-IMSG A900-IMA1Z8SCXMS |
|
Maximum transmission unit (MTU) |
Configurable MTU of up to 9216 bytes, for bridging on Gigabit Ethernet, 10 and 100 Gigabit Ethernet |
|
Maximum interface throughput |
480 Gbps |
|
IP version 4 performance |
600 Mpps |
|
IP version 6 performance |
600 Mpps |
|
Management ports |
Copper 10/100/1000Base-T LAN management port - RJ45 connector port Console/Aux RS232 serial ports - RJ45 connector port Console - USB 2.0 type A receptacle connector port |
|
Timing ports |
BITS simultaneous input and output (J1/T1/E1) - RJ48 connector port 1 pps input - mini-coax connector port 1 pps output - mini-coax connector port 2.048/10 MHz input - mini-coax connector port 2.048/10 MHz output - mini-coax connector port |
|
External USB flash memory |
Mass storage - USB 2.0 type A receptacle connector port |
|
Shipment package size in inches (LxWxH) |
21.75 x 15.75 x 6.56 |
|
Shipment package weight |
7.0 lbs. |
|
MTBF at 104°F (40°C) operating temperature |
230,000 hours |
|
Maximum Single-Dimensional Service Scale |
|
|
MAC addresses |
200,000 |
|
Bridge domains |
8,000 |
|
Ethernet flow points |
5,000 |
|
L3 interfaces |
1,000 |
|
IPv4 routes |
128,000 |
|
IPv6 routes |
12,000 |
|
Multicast routes |
4,000 |
|
MPLS VPN |
1,000 |
|
MPLS labels |
32,000 |
|
EoMPLS tunnels per system |
8,000 |
|
VPLS instances |
4,000 |
|
Queues |
48,000 |
|
Classifications |
24,000 |
|
Ingress policers |
24,000 |
|
Class maps |
1,000 |
|
Queue counters (packet and byte) |
240,000 |
|
Policer counters (packet and byte) |
72,000 |
|
IPv4 ACL entries |
1,000 |
|
BFD sessions |
1,023 |
|
IEEE 802.1ag (CFM) at 3.3ms interval |
1,024 |
A900-RSP3C-200-S= ASR 900 Route Switch Processor 3 - 200G, Large Scale, spare
