Mô tả sản phẩm

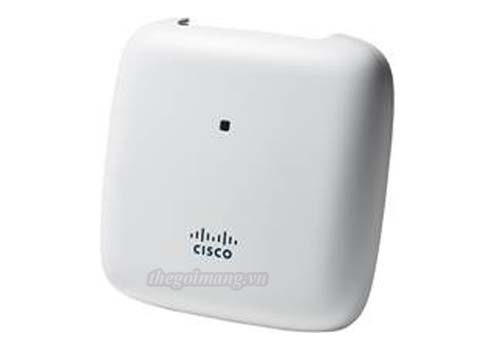

Thiết bị phát Wifi Cisco AIR-AP1815M-S-K9C

Part Number	AIR-AP1815M-S-K9C
Authentication and security	● Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2) ● 802.1X, RADIUS authentication, authorization, and accounting (AAA) ● 802.11r ● 802.11i
Software	● Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later ● Cisco Mobility Express
Supported WLAN Controllers	● Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers, ● Cisco Mobility Express
Maximum clients	● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac	● 2 x 2 single-user/multiuser MIMO with two spatial streams ● Maximal ratio combining (MRC) ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic shift diversity (CSD) support
Ethernet ports	● Authentication with 802.1X or MAC filtered ● Dynamic VLAN or per port ● Traffic locally switched or tunneled back to wireless LAN controller
Bluetooth (future availability)	● Integrated Bluetooth 4.1 (including BLE) radio ● Maximum transmit power: 4 dBm ● Antenna gain: 2 dBi
Integrated antennas	● 2.4 GHz, gain 2 dBi ● 5 GHz, gain 4 dBi
Interfaces	● 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) ● Management console port (RJ-45)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 6 x 6 x 1.3 in. (150.8 x 150.8 x 33mm)
Weight	● Access point without mounting bracket or any other accessories: 1.01 lb (460 grams)
Environmental	● Operating ◦ Temperature: 32° to 104°F (0° to 40°C) ◦ Humidity: 10% to 90% (noncondensing) ◦ Max. altitude: 9,843 ft (3,000m) @ 40’C ● Nonoperating (storage and transportation) ◦ Temperature: –22° to 158°F (–30° to 70°C) ◦ Humidity: 10% to 90% (noncondensing) ◦ Max. altitude: 15,000 ft (4,500m) @ 25’C
System	● 1-GB DRAM ● 256-MB flash memory ● 710-MHz quad-core
Input power requirements	● 802.3af or 802.3at power
Powering options	● 802.3af/at Ethernet switch ● Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
Power draw	● Max power draw is 13.9W with 100 meters Category 5 cable
Physical security	● Torx security screw, included with the access point
Mounting	● Included with the access point: mounting bracket AIR-AP-BRACKET-8
Accessories	● Mounting bracket: AIR-AP-BRACKET-8= (available as spare) ● Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
Warranty	Limited Lifetime Hardware Warranty
