Mô tả sản phẩm

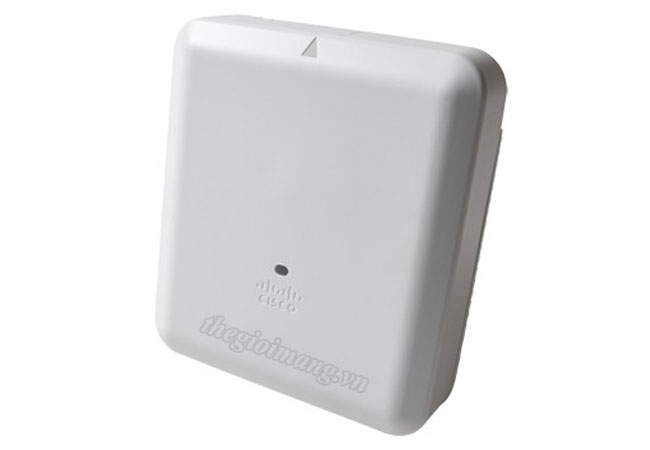

Thiết bị Wifi Indoor Cisco AIR-AP4800-S-K9C

Part Number	AIR-AP4800-S-K9C
Description	802.11ac W2 Analytics AP w/CA; 4×3:3; Location; mGig -S Domain, Configurable
Software and supported wireless LAN controllers	● Cisco Unified Wireless Network Software Release 8.7 or later ● Cisco 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, and Virtual Wireless Controller, Cisco 9800 series Wireless Controllers ● Cisco IOS ® XE Software Release 16.9 ● Cisco Catalyst ® 3850 Series and 3650 Series Switches
802.11n version 2.0 (and related) capabilities	● 4x4 MIMO with three spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support
802.11ac Wave 1 capabilities	● 4x4 MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
802.11ac Wave 2 capabilities	● 4x4 MU-MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, 160-MHz channels ● PHY data rates up to 5.2 Gbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support
Wi-Fi Alliance certifications	● Wi-Fi Certified a, b, g, n, ac ● Wi-Fi Vantage ● Wi-Fi Multimedia (WMM) ● Passpoint
Integrated antenna	Flexible radio (either 2.4 GHz or 5 GHz) ● 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz, gain 5 dBi, internal directional antenna, elevation plane beam width 90° Dedicated 5-GHz radio ● 5 GHz, gain 3.5 dBi, internal antenna, omnidirectional in azimuth Third dedicated radio ● 2.4 GHz and 5 GHz capable ● Hyperlocation antenna array BLE radio ● 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth
Interfaces	● 2 Ethernet ports ● 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ● Category 5e cabling ● Higher-quality 10GBASE-T (Category 6/6a) cabling ● 100/1000BASE-T autosensing (RJ-45 AUX port) ● Management console port (RJ-45)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting brackets): 8.68 x 9.9 x 2.9 in. (22 x 25 x 7.35 cm)
Weight	● 5.6 lb (2.5 kg)
Input power requirements	● 802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE ®) ● 802.3at power injector (AIR-PWRINJ6=) ● 50W power supply (AIR-PWR-50=)
Power draw	● 30W at the Power Source Equipment (PSE) with all features enabled except Multigigabit, AUX Ethernet, and USB support ● 31W at the PSE with full functionality
Environmental	● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft ● Operating temperature: 32° to 104°F (0° to 40°C) ● Operating humidity: 10% to 90% percent (noncondensing) ● Operating altitude test: 40˚C, 9843 ft. (noncondensing)
System memory	● 1024 MB DRAM ● 256 MB flash
Available transmit power settings	2.4 GHz ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) 5 GHz ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW)
Frequency band and 20-MHz operating channels	S (S regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz;, 11 channels ● 5.745 to 5.825 GHz; 5 channels
