Name: Cisco ASA5506W-E-K9
Brand: Cisco
SKU: ASA5506W-E-K9
Rating: 5 (3 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

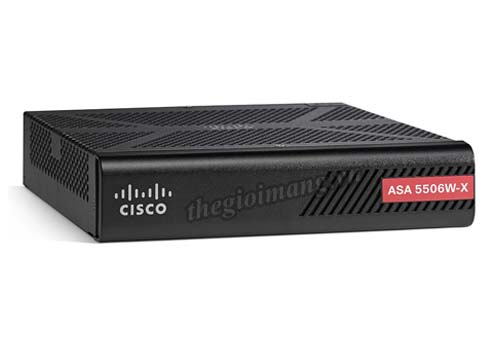

Thiết bị tường lửa Firepower Cisco ASA5506W-E-K9

Product Number	ASA5506W-E-K9
Product Description	ASA 5506W-E-X with FirePOWER services, WiFi for Europe, 8GE Data, 1GE Mgmt, AC, 3DES/AES
Throughput: Application Control (AVC)	250 Mbps
Throughput: Application Control (AVC) and IPS	125 Mbps
Maximum concurrent sessions	20,000; 50000
Maximum New Connections per second	5,000
Supported applications	More than 3,000
URL categories	80+
Number of URLs categorized	More than 280 million
Centralized configuration, logging, monitoring, and reporting	Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
On-Device Management	ASDM (version 7.3 or higher required)
Feature	Cisco ASA 5506W-X w/ FirePOWER Services
Stateful inspection throughput (maximum)	750 Mbps
Stateful inspection throughput (multiprotocol)	300 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput	100 Mbps
Users/nodes	Unlimited
IPsec site-to-site VPN peers	10; 50
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections	50
Virtual interfaces (VLANs)	5; 30
Security contexts5(included; maximum)	N/A
High availability	Requires Security Plus License; Active/ Standby
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details)	Wireless Bands a/b/g/n; Max n wifi throughput 54 Mbps; internal antenna only; local management or centralized via Cisco WLC
Expansion slot	N/A
User-accessible Flash slot	No
USB 2.0 ports	USB port type ‘A’, High Speed 2.0

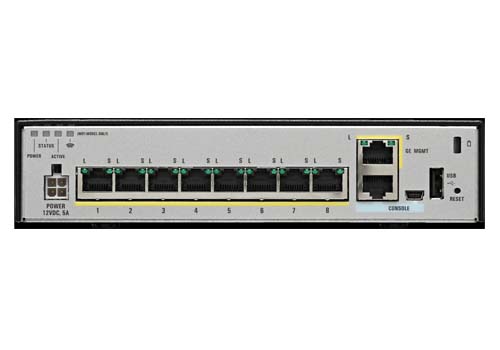

Integrated I/O	8 x 1 Gigabit Ethernet (GE)
Expansion I/O	N/A
Expansion I/O	N/A
Dedicated management port	Yes (To be shared with FirePOWER Services), 10/100/1000
Serial ports	1 RJ-45 and Mini USB console
Solid-state drive	50 GB mSata
Solid-state drive	50 GB mSata
Memory	4 GB
System flash	8 GB
System bus	Multibus architecture
Temperature	32 to 104°F (0 to 40 °C)
Relative humidity	90 percent noncondensing
Altitude	Designed and tested for 0 to 10,000 ft (3048 m)
Acoustic noise	Fanless 0 dBA
Acoustic noise	Fanless 0 dBA
Temperature	-13 to 158ºF (-25 to 70ºC)
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4572 m)
AC range line voltage	External, 90 to 240 volts alternating current (VAC)
AC normal line voltage	90 to 240 VAC
AC current	N/A
AC frequency	50/60 Hz
Dual-power supplies	None
DC domestic line voltage	N/A
DC international line voltage	N/A
DC current	N/A
Steady state	12V @2.5A
Maximum peak	12V @ 5A
Maximum heat dissipation	103 British thermal units (Btu)/hr
Form factor	Desktop, rack mountable
Dimensions(H x W x D)	1.72 x 7.871 x 9.23 in.(4.369 x 19.992 x 23.444 cm)
Weight (with AC power supply)	4 lb (1.82 kg)
