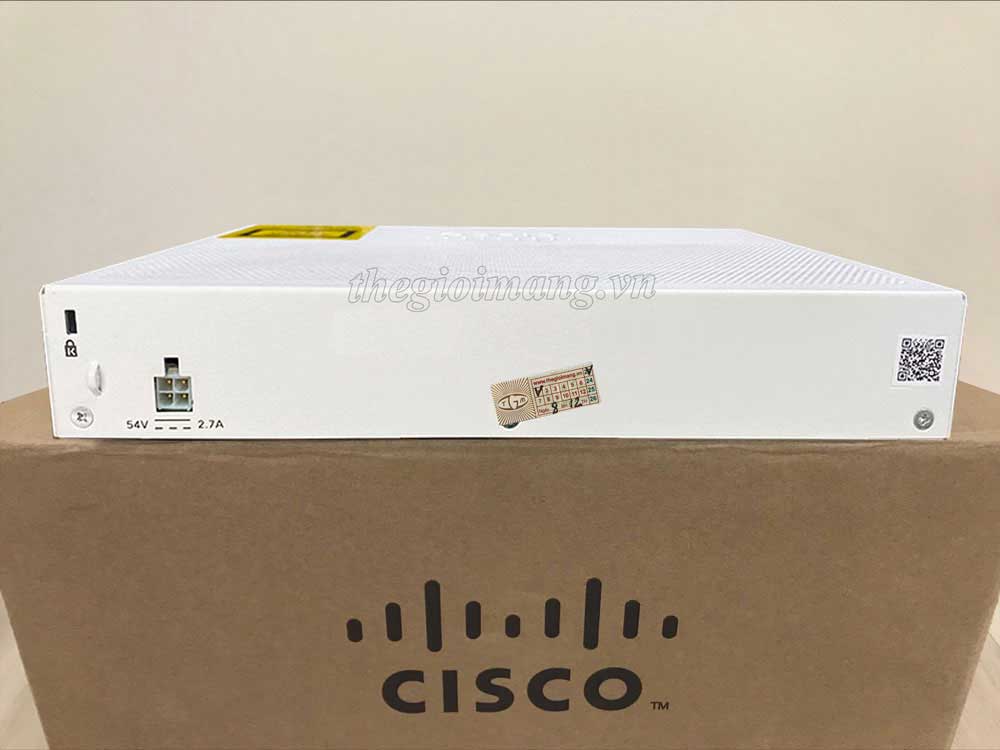

Cisco C1000-16P-E-2G-L

Cisco C1000-16P-E-2G-L Catalyst 1000 16 port GE, PoE+, Ext PS, 2x1G SFP

  • 16x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget
  • 2x 1G SFP uplinks with external PS
  • Weight 1.42 Kg
  • Fanless available
  • Over-the-air Bluetooth access
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch 16 ports PoE+ Cisco C1000-16P-E-2G-L

Part Number

C1000-16P-E-2G-L

Hardware
Interface 16x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP uplinks with external PS
Console ports
  • 1x RJ-45 Ethernet
  • USB mini-B
  • USB-A port for storage and Bluetooth console
Fanless Yes
Dimensions (WxDxH in inches) 10.56 x 8.26x 1.73
Weight (kg) 1.42

Memory and processor

CPU

ARM v7 800 MHz

DRAM

512 MB

Flash memory

256 MB

Performance

Forwarding bandwidth

18 Gbps

Switching bandwidth

36 Gbps

Forwarding rate (64‑byte L3 packets)

26.78 Mpps

Unicast MAC addresses

16,000

IPv4 unicast direct routes

542

IPv4 unicast indirect routes

256

IPv6 unicast direct routes

414

IPv6 unicast indirect routes

128

IPv4 multicast routes and IGMP groups

1024

IPv6 multicast groups

1024

IPv4/MAC security ACEs

600

IPv6 security ACEs

600

Maximum active VLANs

256

VLAN IDs available

4094

Maximum STP instances

64

Maximum SPAN sessions 4
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
Ingress protection IP20
Dying Gasp Yes

Electrical

Power

External power supply

Voltage (auto ranging) 110 to 220V AC in
Frequency 50 to 60 Hz
Current 0.14A to 0.24A
Power rating (maximum consumption) 0.20 kVA
PoE Support PoE+ 120W
Total PoE Port 120W



C1000-16P-E-2G-L : Catalyst 1000 16 port GE, POE, Ext PS, 2x1G SFP

Data sheet Cisco Catalyst 1000 Series Switches
