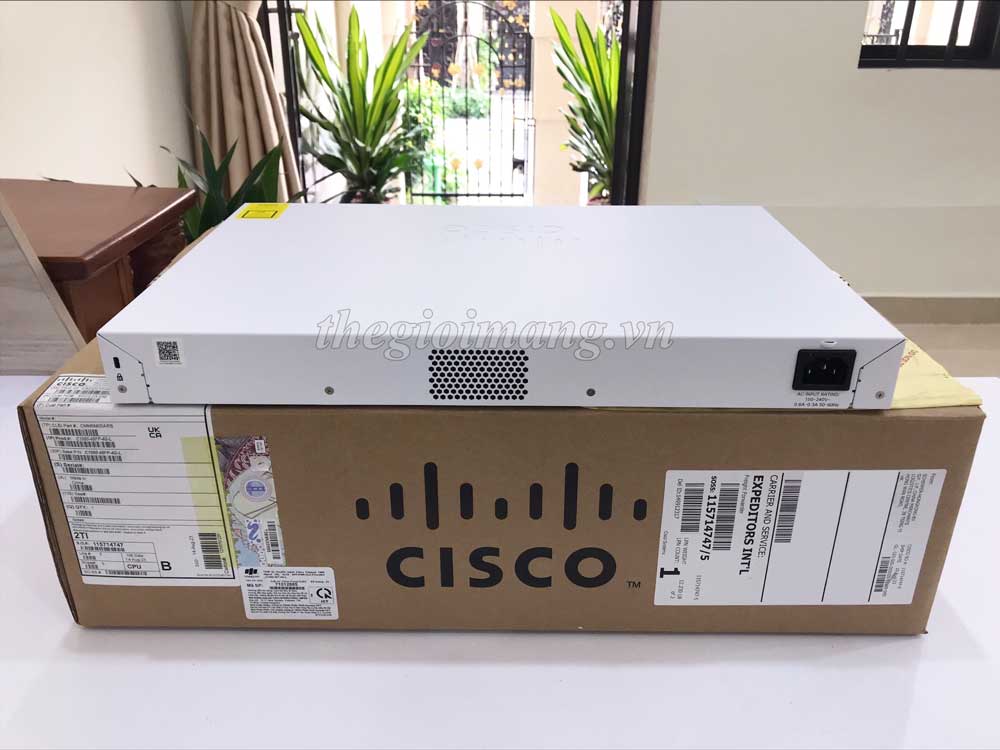

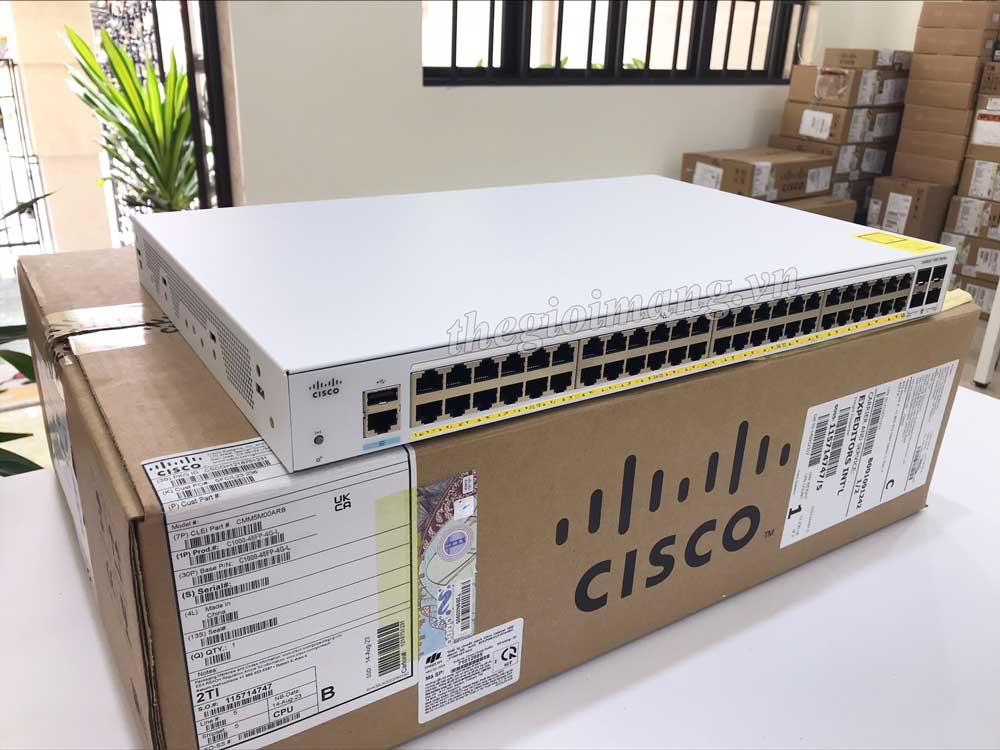

Switch Cisco C1000-48FP-4G-L Catalyst 1000 48 port GE, Full PoE+, 4x1G SFP
Switch C1000-48FP-4G-L có 48-port GE, cấp nguồn PoE+ (tối đa 740W) và 4x1G SFP uplinks tốc độ cao. Đây là thiết bị chuyển mạch lớp 2 đơn giản, linh hoạt và an toàn, lý tưởng cho việc triển khai Internet of Things (IoT).

Cisco C1000-48FP-4G-L là thiết bị chuyển mạch cổng Gigabit Ethernet được thiết kế cho các doanh nghiệp vừa, nhỏ và văn phòng chi nhánh. Hoạt động trên Phần mềm Cisco IOS®, quản lý đơn giản thông qua Giao diện dòng lệnh (CLI) hoặc giao diện người dùng Web UI.
● 48 ports Gigabit Ethernet
● Cấp nguồn PoE+ tối đa lên tới 740W
● 4 ports SFP uplinks
● CPU 800MHz, DRAM 512MB, Flash 256MB
● Quản lý bằng CLI hoặc Web UI
● Giám sát mạng thông qua luồng được lấy mẫu (sFlow)
● Bảo mật với hỗ trợ 802.1X cho các thiết bị được kết nối với SPAN và BPDU Guard
● Truy cập thiết bị qua Bluetooth, SNMP hoặc Console RJ-45
● Độ tin cậy với MTBF cao hơn và hỗ trợ bảo hành trọn đời có giới hạn (E-LLW) nâng cao
Dòng Cisco C1000-48FP-4G-L có thể thay thế cho các dòng Catalyst Switch Cisco trước đó như : WS-C2960L-48PS-LL, WS-C2960L-SM-48PS, WS-C2960+48PST-L, WS-C2960+48PST-S
Xem thêm
Rút gọn
| Model | C1000-48FP-4G-L |
| Hardware | |
| Interface | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 1G SFP uplinks |
| Console ports | 1x RJ-45 Ethernet USB mini-B USB-A port for storage and Bluetooth console |
| Fanless | No |
| Dimensions (WxDxH in inches) | 17.5 x 13.78 x 1.73 |
| Weight (Kg) | 5.82 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 52 Gbps |
| Switching bandwidth | 104 Gbps |
| Forwarding rate (64 byte L3 packets) |
77.38 Mpps |
| Unicast MAC addresses | 15360 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Ingress protection | IP20 |
| Dying Gasp | Yes |
| Electrical | |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.45A to 0.94A |
| Power rating (maximum consumption) | 0.95 kVA |
| PoE Support | PoE, PoE+ |
| PoE Power | 740W |
| PoE on Interface | 30W for any 24 ports or 15W for 48 ports |
Vui lòng để lại số điện thoại hoặc lời nhắn, nhân viên sẽ liên hệ trả lời bạn sớm nhất
Cisco C1000-48FP-4G-L
| Model | C1000-48FP-4G-L |
| Hardware | |
| Interface | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 1G SFP uplinks |
| Console ports | 1x RJ-45 Ethernet USB mini-B USB-A port for storage and Bluetooth console |
| Fanless | No |
| Dimensions (WxDxH in inches) | 17.5 x 13.78 x 1.73 |
| Weight (Kg) | 5.82 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 52 Gbps |
| Switching bandwidth | 104 Gbps |
| Forwarding rate (64 byte L3 packets) |
77.38 Mpps |
| Unicast MAC addresses | 15360 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Ingress protection | IP20 |
| Dying Gasp | Yes |
| Electrical | |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.45A to 0.94A |
| Power rating (maximum consumption) | 0.95 kVA |
| PoE Support | PoE, PoE+ |
| PoE Power | 740W |
| PoE on Interface | 30W for any 24 ports or 15W for 48 ports |
| Model | C1000-48FP-4G-L |
| Hardware | |
| Interface | 48x 10/100/1000 Ethernet PoE+ ports and 740W PoE budget, 4x 1G SFP uplinks |
| Console ports | 1x RJ-45 Ethernet USB mini-B USB-A port for storage and Bluetooth console |
| Fanless | No |
| Dimensions (WxDxH in inches) | 17.5 x 13.78 x 1.73 |
| Weight (Kg) | 5.82 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 52 Gbps |
| Switching bandwidth | 104 Gbps |
| Forwarding rate (64 byte L3 packets) |
77.38 Mpps |
| Unicast MAC addresses | 15360 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Ingress protection | IP20 |
| Dying Gasp | Yes |
| Electrical | |
| Voltage (auto ranging) | 110 to 220V AC in |
| Frequency | 50 to 60 Hz |
| Current | 0.45A to 0.94A |
| Power rating (maximum consumption) | 0.95 kVA |
| PoE Support | PoE, PoE+ |
| PoE Power | 740W |
| PoE on Interface | 30W for any 24 ports or 15W for 48 ports |
Switch C1000-48FP-4G-L phù hợp dùng ở đâu (use-case)?
C1000-48FP-4G-L phù hợp cho môi trường doanh nghiệp nhỏ, văn phòng chi nhánh, trường học, hệ thống camera và thiết bị PoE, nơi cần nhiều cổng Gigabit với PoE+ và quản lý đơn giản, chứ không phải môi trường mạng lớn trung tâm.
C1000-48FP-4G-L có những tính năng quản lý và bảo mật gì?
C1000-48FP-4G-L chạy trên Cisco IOS Software và hỗ trợ quản lý qua CLI, web UI, SNMP, với các tính năng bảo mật như 802.1X, SPAN, BPDU Guard, giúp kiểm soát quyền truy cập và kiểm tra lưu lượng mạng.
C1000-48FP-4G-L hỗ trợ PoE bao nhiêu và theo chuẩn nào?
C1000-48FP-4G-L hỗ trợ cấp nguồn PoE+ theo chuẩn IEEE 802.3af/at với tổng ngân sách PoE lên đến 740 W, cho phép cấp nguồn cho các thiết bị như IP phone, camera, và điểm truy cập Wi-Fi.
