Trang chủ > Sản phẩm > Thiết bị mạng Cisco > Router Cisco > Cisco C8200L-1N-4T

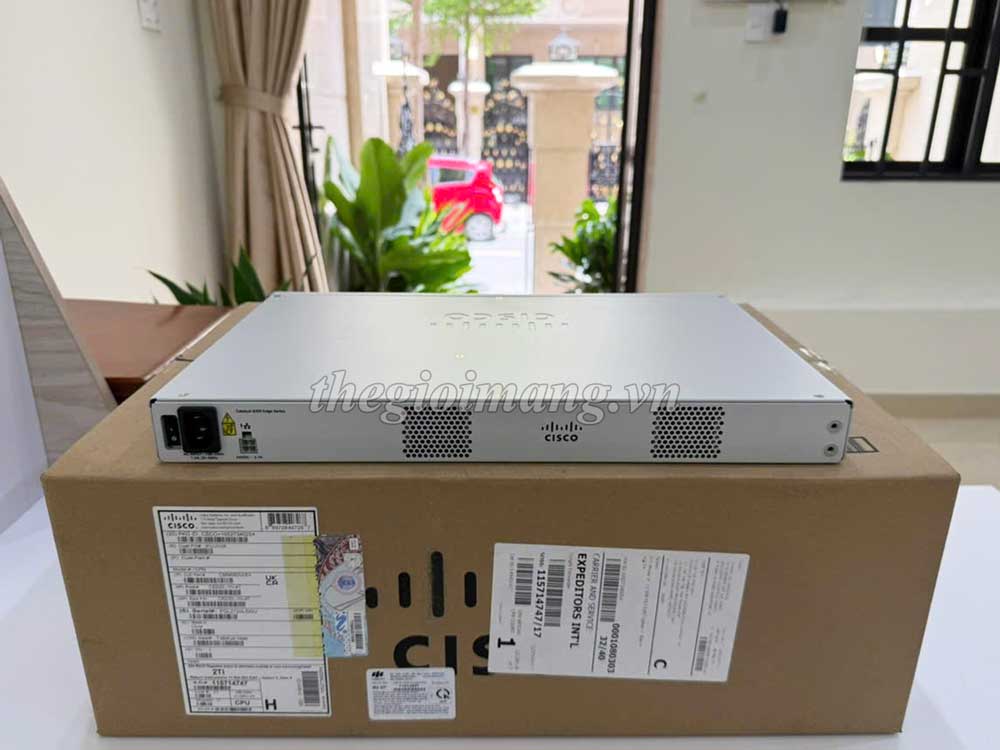

Cisco C8200L-1N-4T

Bộ định tuyến Router Cisco C8200L-1N-4T - Catalyst 8200L with 1-NIM slot and 4x1G WAN ports ● Two Ethernet ports are Small Form-Factor Pluggable (SFP) and two are RJ45 ports ● Slots : 1 NIM, 1 PIM ● Memory (DRAM) default 4 GB ● Storage (M.2 SSD) default 16 GB
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị định tuyến Router Cisco C8200L-1N-4T

Model C8200L-1N-4T
Platform specifications
1G port density 4
Slots 1 NIM, 1 PIM
Memory (DRAM) default 4 GB
Storage (M.2 SSD) default 16 GB
Platform performance
Cisco controller mode (SD-WAN) performance specifications
SD-WAN IPsec throughput (1400 bytes, clear text) Up to 500 Mbps
SD-WAN IPsec throughput (IMIX,* clear text**) 400 Mbps
SD-WAN overlay tunnels scale 1500
Cisco autonomous mode (non SD-WAN) performance specifications
IPv4 forwarding throughput (1400 bytes) Up to 3.8 Gbps
IPsec throughput (1400 bytes, clear text**) Up to 500 Mbps
Number of IPsec static virtual tunnel interface (SVTI) tunnels 1500
Cisco autonomous mode (non SD-WAN) system scalability
Number of access control lists (ACLs) per system 4000
Number of IPv4 access control entries (ACEs) per system 72000
Number of IPv4 routes  800,000 with default 4 GB, up to 4M with 32 GB
Number of IPv6 routes  800,000 with default 4 GB, up to 4M with 32 GB
Number of queues 16000
Number of Network Address Translation (NAT) sessions 600,000 with default 8 GB, up to 2M with 32 GB
Number of firewall sessions 512000
Number of Virtual Route Forwarding (VRF) instances 2000
Mechanical specifications
Dimensions (H x W x D) 1.73  x 17.25  x 11.8 in. (4.39 x 43.81 x 29.97 cm)
Rack Units (RU) 1RU
Chassis weight  10 lb (4.54 kg)
Input voltage AC: 90 to 264 VAC
Operating temperature 32° to 104°F (0° to 40°C)
Storage temperature .-40° to 150°F (-40° to 70°C)
Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5% to 85%
Ambient (noncondensing) nonoperating and storage: 5% to 95%
Altitude 0 to 10,000 feet (0 to 3050 meters)
Mean Time Between Failures (MTBF) 692,577 hours

C8200L-1N-4T : Cisco Catalyst 8200L with 1-NIM slot and 4x1G WAN ports

Data sheet Cisco Catalyst 8200 Series Edge Platforms
