Trang chủ > Sản phẩm > Thiết bị mạng Cisco > Wireless Cisco > Cisco C9130AXI-EWC-S

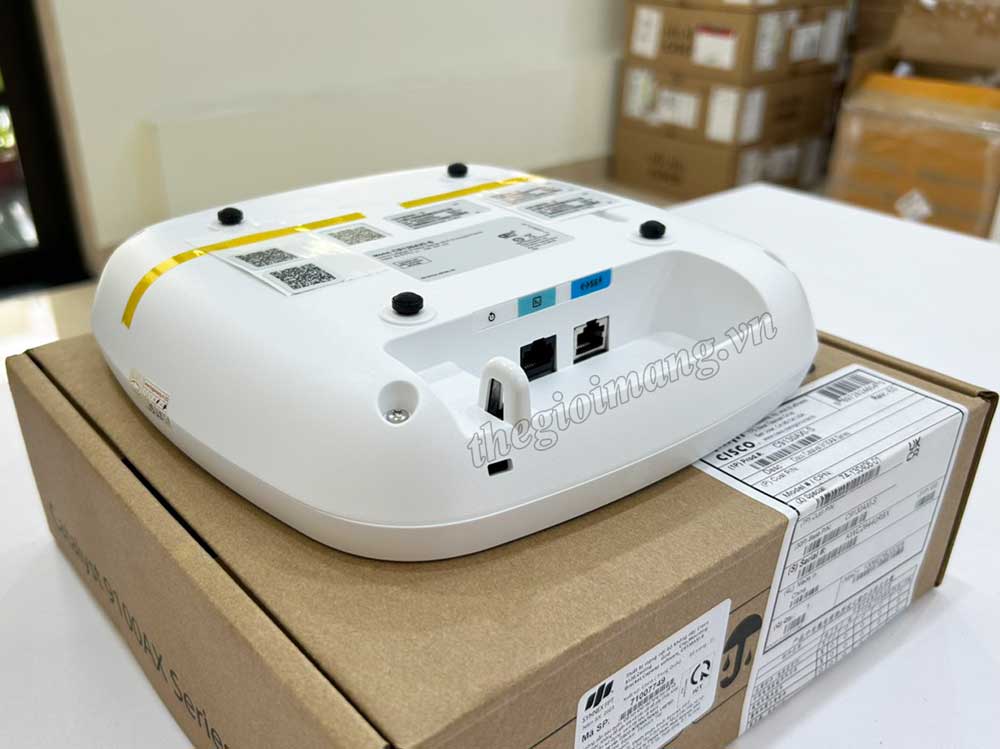

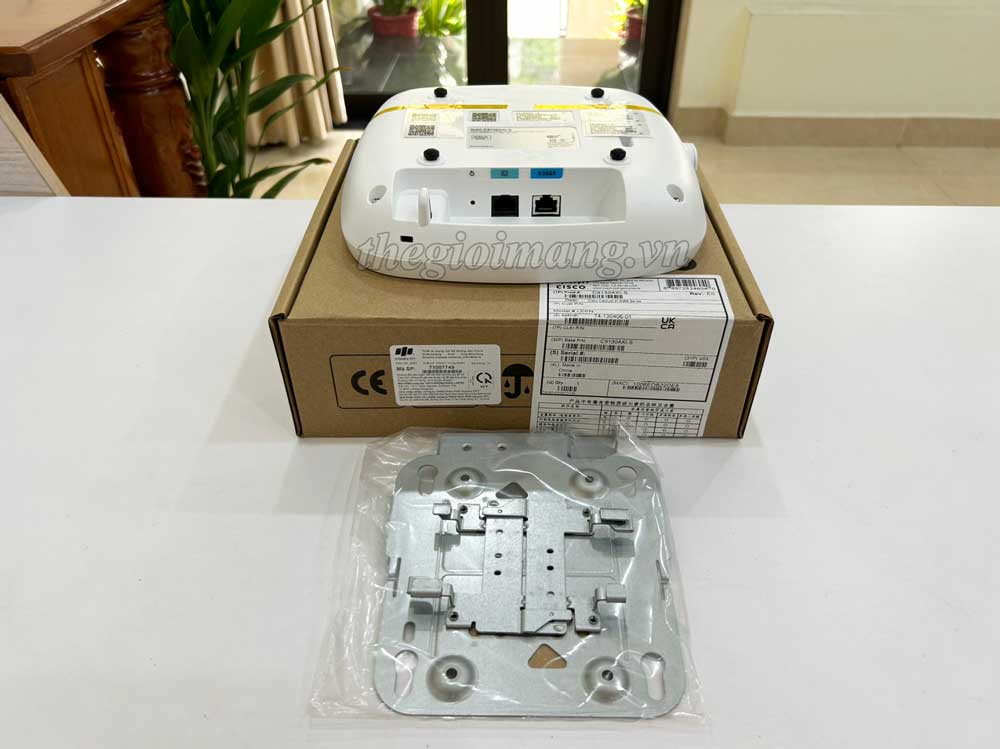

Cisco C9130AXI-EWC-S

C9130AXI-EWC-S - Cisco Catalyst 9130AX Series with Embedded Wireless Controller, Wi-Fi 6 certified, S Domain, Indoor environments and Internal antennas.

  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị Wifi Cisco Catalyst C9130AXI-EWC AP: Indoor environments, internal antennas with Embedded Wireless Controller

Part Number C9130AXI-EWC-S
Software ●  Cisco Unified Wireless Network Software Release 8.10.x or later
●  Cisco IOS ® XE Software Release 16.12.1 with AP Device Pack, or later
Supported wireless LAN controllers ●  Cisco Catalyst 9800 Series Wireless Controllers
●  Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller
802.11n version 2.0 (and related) capabilities ●  4x4 MIMO with four spatial streams
●  Maximal Ratio Combining (MRC)
●  802.11n and 802.11a/g
●  20- and 40-MHz channels
●  PHY data rates up to 1.72 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
●  Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
●  802.11 Dynamic Frequency Selection (DFS)
●  Cyclic Shift Diversity (CSD) support
802.11ac ●  8x8 downlink MU-MIMO with eight spatial streams
●  MRC
●  802.11ac beamforming
●  20-, 40-, 80-, and 160-MHz channels
●  PHY data rates up to 4.8 Gbps (160 MHz with 5 GHz)
●  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
●  802.11 DFS
●  CSD support
802.11ax ●  8x8 uplink/downlink MU-MIMO with eight spatial streams
●  Uplink/downlink OFDMA
●  TWT
●  BSS coloring
●  MRC
●  802.11ax beamforming
●  20-, 40-, 80-, and 160-MHz channels
●  PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
●  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
●  802.11 DFS
●  CSD support
Integrated antenna ●  2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
●  5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth
Interfaces ●  1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3az
●  Management console port (RJ-45)
●  USB 2.0 at 4.5W (enabled via future software)
Indicators ●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions (W x L x H) ●  8.9 x 8.9 x 1.88 in. (22.6 x 22.6 x 4.8 cm)
Weight ●  3.2 lb. (1.45 kg)
Input power requirements ●  802.3at Power over Ethernet Plus (PoE+), Cisco Universal PoE (Cisco UPOE ®)
●  Cisco power injector, AIR-PWRINJ6=
●  802.3af PoE
●  Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)
Environmental ●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m)
●  Operating temperature: -4° to 122°F (-20° to 50°C)
●  Operating humidity: 10% to 90% (noncondensing)
●  Operating altitude test: 40˚C, 9843 ft.(3000 m)
System memory ●  2048 MB DRAM
●  1024 MB flash

C9130AXI-EWC-S : Cisco Embedded Wireless Controller on C9130AX Access Point

Data sheet Cisco Catalyst 9130 Series Access Points
