Trang chủ > Sản phẩm > Thiết bị mạng Cisco > Switch Cisco > Cisco C9200-48T-E

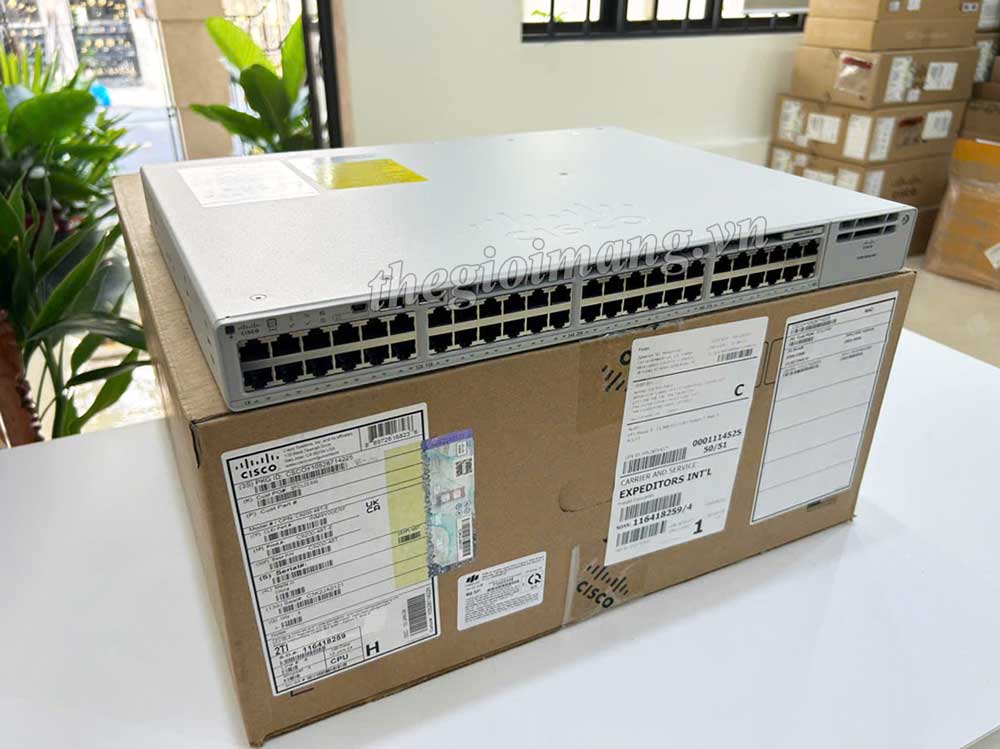

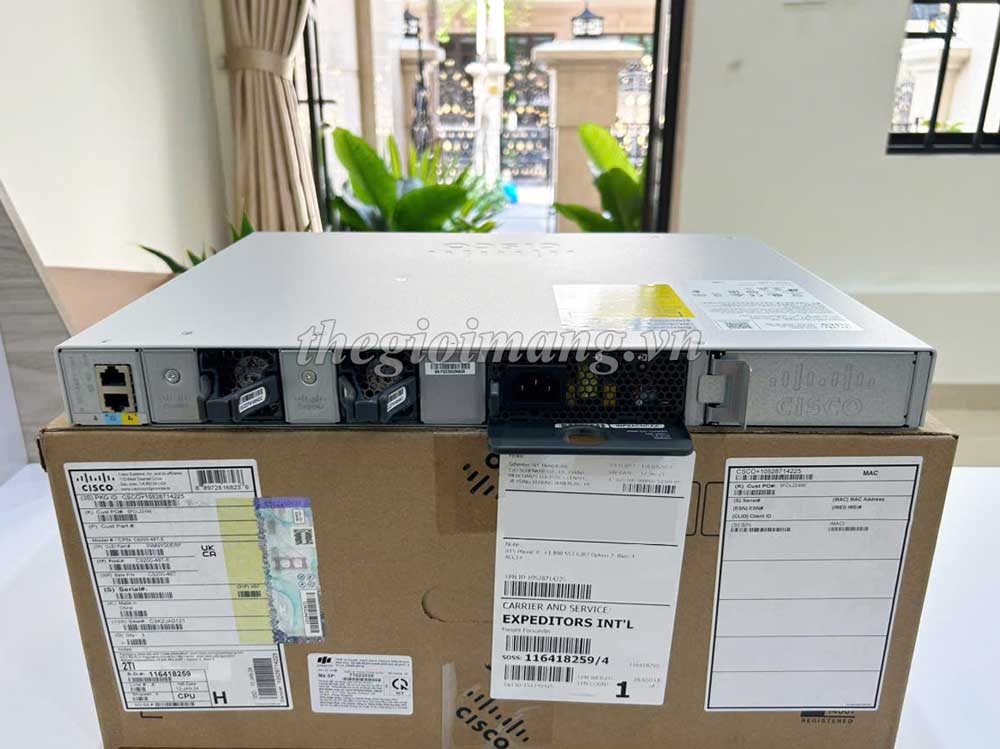

Cisco C9200-48T-E

Cisco C9200-48T-E Catalyst 9200 48-port data only, Network Essentials

  • 48 ports data 10/100/1000 Mbps
  • Modular uplink options (C9200-NM-xx)
  • PWR-C6-125WAC
  • Cisco DNA Essentials
  • C9200-STACK-KIT (option)
  • STACK-T4-50CM (option)
  • Hàng chính hãng CO, CQ do Cisco Việt Nam cấp.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch 48 ports data Cisco C9200-48T-E
Switch Model C9200-48T-E
Downlinks total 10/100/1000 or PoE+ copper ports 48 ports data
Uplink configuration Modular uplink options (C9200-NM-xx)
Default primary AC power supply PWR-C6-125WAC
Fans FRU redundant
Software Network Essentials
Stacking support StackWise®-160
Stacking bandwidth 160 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes 14,000
IPv4 routing entries 4,000
IPv6 routing entries 2,000
Multicast routing scale 1,000
QoS scale entries 1,000
ACL scale entries  1,600
DRAM 4 GB
Flash 4 GB
VLAN IDs 4096
Total Switched Virtual Interfaces (SVIs) 1000
Jumbo frames  9198 bytes
Wireless bandwidth per switch Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model
Switching capacity 176 Gbps
Forwarding rate 130.95 Mpps
Chassis Dimensions 4.4 x 44.5 x 35.0 cm
Weight 5.0 Kg
Các tùy chọn (Options) : Module network, Stacking cables và DNA licenses
Network modules cho Cisco Catalyst C9200
Product number Product description
C9200-NM-2Y Catalyst 9200 2 x 25 GE Network Module
C9200-NM-2Q Catalyst 9200 2 x 40GE Network Module
C9200-NM-4G Catalyst 9200 4 x 1GE Network Module
C9200-NM-4X Catalyst 9200 4 x 10GE Network Module
C9200-NM-BLANK Catalyst 9200 BLANK (No) Network Module
Stacking cables cho Cisco Catalyst C9200
Product number Product description
C9200-STACK-KIT Stack kit for C9200 SKUs only: Two data stack adapters and one data stack cable
STACK-T4-50CM 50CM Type 3 Stacking Cable
STACK-T4-1M 1M Type 3 Stacking Cable
STACK-T4-3M 3M Type 3 Stacking Cable
Software DNA licenses cho Cisco Catalyst C9200
Product number Product description
C9200-DNA-E-48-3, -5, -7 C9200 48 port Cisco DNA Essentials; 3, 5 and 7 year term
C9200-DNA-A-48-3, -5, -7 C9200 48 port Cisco DNA Advantage; 3, 5 and 7 year term
C9200-DNA-P-48-3, -5, -7 C9200 48 port Cisco DNA Premier; 3, 5 and 7 year term
C9200-DNA-E-A-3, -5, -7 C9200 Cisco DNA Essentials to Advantage upgrade; 3, 5 and 7 year term



C9200-48T-E : Catalyst 9200 48-port data only, Network Essentials

Data sheet Cisco Catalyst 9200 Series Switches
