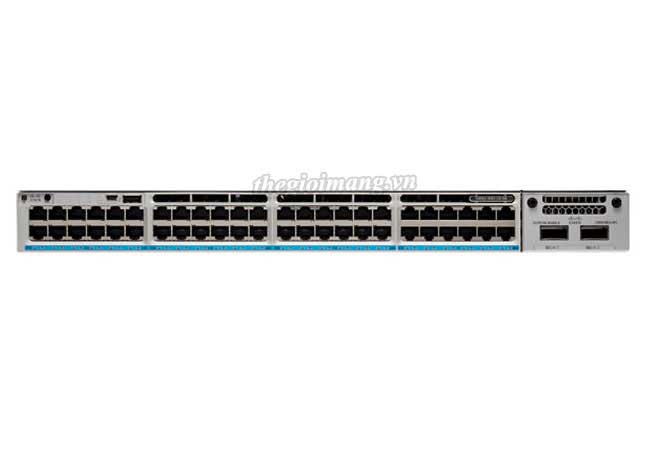

Cisco C9300L-48UXG-2Q-E Catalyst 9300L 48p, 12mGig, 2x40G Uplink, Network Essentials
| Switch Model | C9300L-48UXG-2Q-E |
| Total 10/100/1000, Multigigabit copper or SFP Fiber | 48 UPOE 12xmGig(100M/1G/2.5G/5G/10G) + 36x10M/100M/1G |
| Uplink Configuration | 2x 40G fixed uplinks |
| Default AC power supply | 1100W AC (PWR-C1-1100WAC-P) |
| Software | Network Essentials |
| Available PoE power | 675W |
| Catalyst 9800 Embedded WLC | Yes (50 APs) |
| SD-Access Support | Yes (256 Virtual Networks) |
| Stacking support | StackWise®-320 |
| Stacking bandwidth support | 320 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8,000 |
| QoS scale entries | 5,120 |
| ACL scale entries | 5,120 |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Switching capacity | 472 Gbps |
| Forwarding rate | 351.19 Mpps |
| Dimensions Chassis only (H x W x D) | 4.4 x 44.5 x 40.9 cm |
| Weight | 7.65 Kg |
| Stack kit cho Cisco Catalyst C9300L | |
| Product number | Product description |
| C9300L-STACK-KIT | Stack kit for C9300L SKUs only: Two data stack adapters and one data stack cable |
| STACK-T3-50CM | Data stack 50cm cable (default cable with C9300L Stack Kit) |
| STACK-T3-1M | Data stack 1m cable (cable option with C9300L Stack Kit) |
| STACK T3-3M | Data stack 3m cable (cable option with C9300L Stack Kit) |
| Software licenses DNA cho Cisco Catalyst C9300L | |
| Product number | Product description |
| C9300-DNA-E-48-3, -5, -7 | C9300 48 port Cisco DNA Essentials; 3, 5 and 7 year term |
| C9300-DNA-A-48-3, -5, -7 | C9300 48 port Cisco DNA Advantage; 3, 5 and 7 year term |
| C9300-DNA-P-48-3, -5, -7 | C9300 48 port Cisco DNA Premier; 3, 5 and 7 year term |
| C9300-DNA-E-A-3, -5, -7 | C9300 Cisco DNA Essentials to Advantage upgrade; 3, 5, 7 year term |

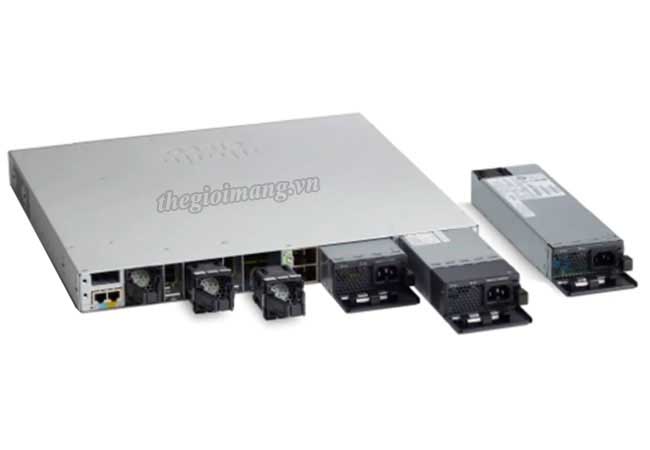

| Power nguồn cho Switch Cisco C9300L-48UXG | |
| Product Number | Product Description |
| PWR-C1-1100WAC-P | 1100WAC Platinum-rated power supply spare |
| PWR-C1-1100WAC | 1100WAC Power supply spare |
C9300L-48UXG-2Q-E : Catalyst 9300L 48p, 12mGig, Network Essentials, 2x40G Uplink
