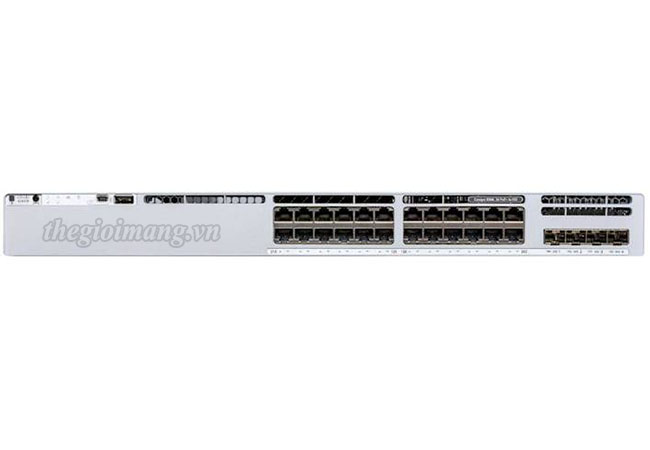

Cisco C9300LM-24U-4Y-E Catalyst 9300 mini 24-port 1G UPOE, 4x 25G uplinks, Network Essentials
Thiết bị chuyển mạch L3 mini 24 Gigabit ports Switch Cisco C9300LM-24U-4Y-E
| Switch Model | C9300LM-24U-4Y-E |
| Total 10/100/1000, Multigigabit copper or SFP Fiber | 24 port 1G (1G/100M/10M) with Cisco UPOE |
| Uplink Configuration | 4x25G fixed uplinks |
| Default AC power supply | 600W AC (PWR-C6-600WAC) |
| Software | Network Essentials |
| Available PoE power | 420W (Default) 820W (Upgrade) |
| Stacking support | Yes |
| Stacking bandwidth support | Stackwise-320 |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8,000 |
| QoS scale entries | 5,120 |
| ACL scale entries | 5,120 |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Switching capacity | 248 Gbps |
| Switching capacity with stacking | 568 Gbps |
| Forwarding rate | 184.51 Mpps |
| Forwarding rate with stacking | 422.59 Mpps |
| Dimensions Chassis only (H x W x D) | 4.3 x 44.4 x 33.4 cm |
| Weight | 5.21 Kg |
Các tùy chọn (Options) : Stacking accessories
| Stacking Accessories cho Cisco Catalyst C9300LM | |
| Product number | Product description |
| C9300L-STACK-KIT2 | Stack kit for C9300LM and C9300L SKUs: Two data stack adapters and one data stack cable |
| STACK-T3A-50CM | Data stack 50cm cable (default cable with C9300L Stack Kit2) |
| STACK-T3A-1M | Data stack 1m cable (cable option with C9300L Stack Kit2) |
| STACK T3A-3M | Data stack 3m cable (cable option with C9300L Stack Kit2) |
C9300LM-24U-4Y-E : Catalyst 9300 mini 24-port 1G UPOE, 4x25G, Network Essentials
