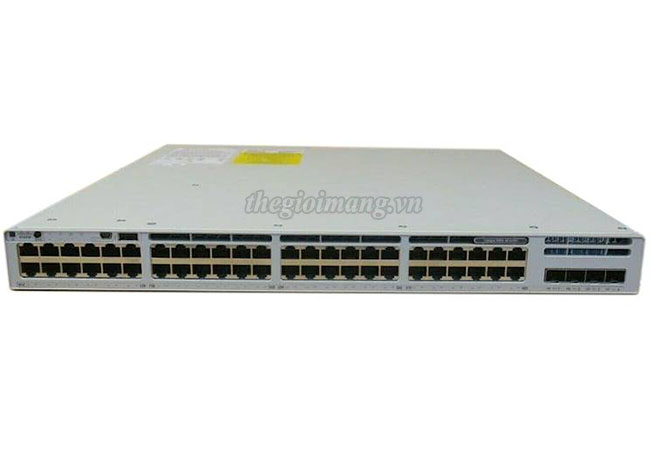

Cisco C9300LM-48UX-4Y-A Catalyst 9300 mini 48-port UPOE, 8-port 10G Multigigabit, 40-port 1G, 4x 25G uplinks, Network Advantage
Thiết bị chuyển mạch L3 mini 48 Multigigabit ports Switch Cisco C9300LM-48UX-4Y-A
| Switch Model | C9300LM-48UX-4Y-A |
| Total 10/100/1000, Multigigabit copper or SFP Fiber | 48 port Cisco UPOE, 8 port 10G Multigigabit (10G/5G/2.5G/1G/100M) + 40 port 1G (1G/100M/10M) |
| Uplink Configuration | 4x25G fixed uplinks |
| Default AC power supply | 1000W AC (PWR-C6-1KWAC) |
| Software | Network Advantage |
| Available PoE power | 790W |
| Stacking support | Yes |
| Stacking bandwidth support | Stackwise-320 |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8,000 |
| QoS scale entries | 5,120 |
| ACL scale entries | 5,120 |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Switching capacity | 440 Gbps |
| Switching capacity with stacking | 760 Gbps |
| Forwarding rate | 327.36 Mpps |
| Forwarding rate with stacking | 565.44 Mpps |
| Dimensions Chassis only (H x W x D) | 4.3 x 44.4 x 33.1 cm |
| Weight | 5.45 Kg |
Các tùy chọn (Options) : Stacking accessories
| Stacking Accessories cho Cisco Catalyst C9300LM | |
| Product number | Product description |
| C9300L-STACK-KIT2 | Stack kit for C9300LM and C9300L SKUs: Two data stack adapters and one data stack cable |
| STACK-T3A-50CM | Data stack 50cm cable (default cable with C9300L Stack Kit2) |
| STACK-T3A-1M | Data stack 1m cable (cable option with C9300L Stack Kit2) |
| STACK T3A-3M | Data stack 3m cable (cable option with C9300L Stack Kit2) |
C9300LM-48UX-4Y-A : Catalyst 9300 mini 48-port UPOE, 8x10Gig+40x1G, 4x25G, Network Advantage
