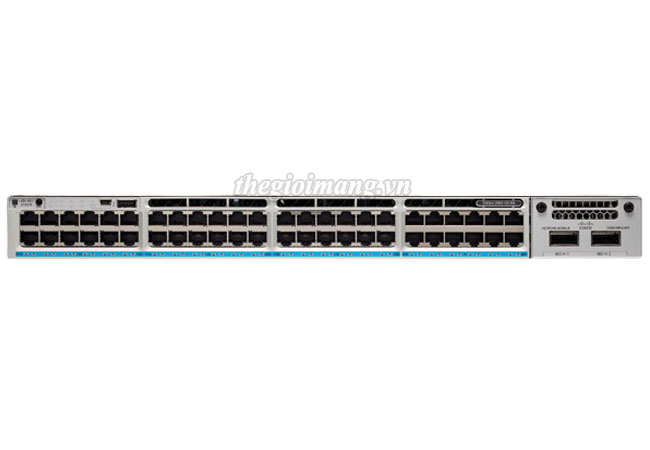

Cisco C9300X-48TX-A Catalyst 9300 48-port mGig data only, Network Advantage
Thiết bị chuyển mạch L3 48 Multigigabit ports Cisco C9300X-48TX-A
| Switch Model | C9300X-48TX-A |
| Total 10/100/1000, Multigigabit copper or SFP Fiber | 48x 10G Multigigabit (100M, 1G, 2.5G, 5G, or 10 Gbps) |
| Uplink Configuration | Modular Uplinks (C9300X-NM-xx) |
| Default AC power supply | 715W AC (PWR-C1-715WAC-P) |
| Software | Network Advantage |
| Available PoE power | No PoE |
| SD-Access Support | Yes (256 Virtual Networks) |
| Stacking support | StackWise-1T |
| Stacking bandwidth support | 1 Tbps |
| Cisco StackPower | Yes (StackPower+) |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes | 39,000 |
| IPv6 routing entries | 19,500 |
| Multicast routing scale | 8,000 |
| QoS scale entries | 4,000 |
| ACL scale entries | 8,000 |
| DRAM | 16 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Switching capacity | 2,000 Gbps |
| Switching capacity with stacking | 3,000 Gbps |
| Forwarding rate | 1488 Mpps |
| Dimensions Chassis only (H x W x D) | 4.4 x 44.5 x 48.3 cm |
| Weight | 6.62 Kg |
Các tùy chọn (Options) : Module network, Stacking cables
| Network module cho Cisco Catalyst C9300X | |
| Network module | Product description |
| C9300X-NM-8M | Catalyst 9300 Series 8x 10G Multigigabit Network Module |
| C9300X-NM-8Y | Catalyst 9300 Series 8x 1G/10G/25G Network Module |
| C9300-NM-2C | Catalyst 9300 Series 2x 40G/100G Network Module |
| C9300X-NM-4C | Catalyst 9300X 4x 100G/40G Network Module |
| NM-BLANK-T1 | Cisco Catalyst Type 1 Network Module Blank |
| Stacking and StackPower cables cho Cisco Catalyst C9300X | |
| Product number | Product description |
| STACK-T1-50CM | Data stack 50 cm (cable option with C9300 and C9300X SKUs) |
| STACK-T1-1M | Data stack 1m (cable option with C9300 and C9300X SKUs) |
| STACK-T1-3M | Data stack 3m (cable option with C9300 and C9300X SKUs) |
| CAB-SPWR-30CM | Catalyst Stack Power Cable 30 CM |
| CAB-SPWR-150CM | Catalyst Stack Power Cable 150 CM |
C9300X-48TX-A : Catalyst 9300 48-port mGig data only, Network Advantage
