Mô tả sản phẩm

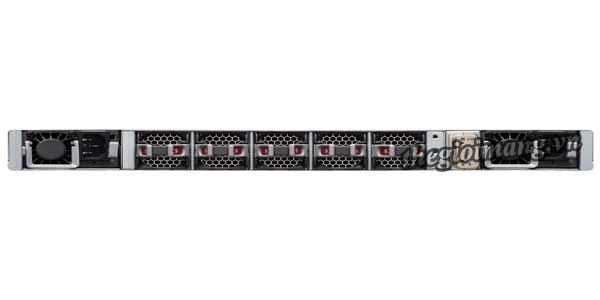

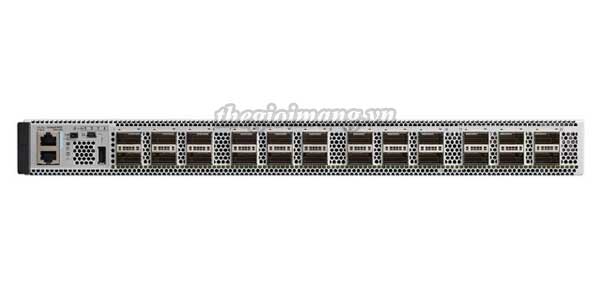

Thiết bị mạng Switch Cisco C9500-24Q-A

Part Number	C9500-24Q-A
Product Description	Catalyst 9500 24-port 40G switch, Network Advantage
Switching capacity	Up to 1920 Gbps full duplex
Forwarding rate	Up to 720 Mpps
Total number of MAC addresses	Up to 64,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)	Up to 64,000 indirect
	Up to 80,000 host
Total number of IPv6 routes	Up to 32,000 indirect
Total number of IPv6 routes	Up to 40,000 host
Multicast scale	Up to 16,000
QoS ACL scale	Up to 18000
Security ACL scale	Up to 18000
FNF entries	Up to 512,000
DRAM	16 GB
Flash	16 GB
VLAN IDs	4000
Total Switched Virtual Interfaces (SVIs)	4000
Jumbo frame	9198 bytes
Dimensions (H x W x D)	1.73 x 17.5 x 21.52 in
Rack Units (RU)	1 RU
Chassis with 2 power supplies and built-In fan	25.75 lb (11.68 kg)
Input voltage	115 to 230 VAC
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	-4° to 149°F (-20° to 65°C)
Relative humidity operating and nonoperating noncondensing	Ambient (noncondensing) operating: 5% to 90%
	Ambient (noncondensing) nonoperating and storage: 5% to 95%
Altitude	Operation up to 6000 feet at 55°C and 13,000 feet at 45°C
MTBF (hours)	230,770
