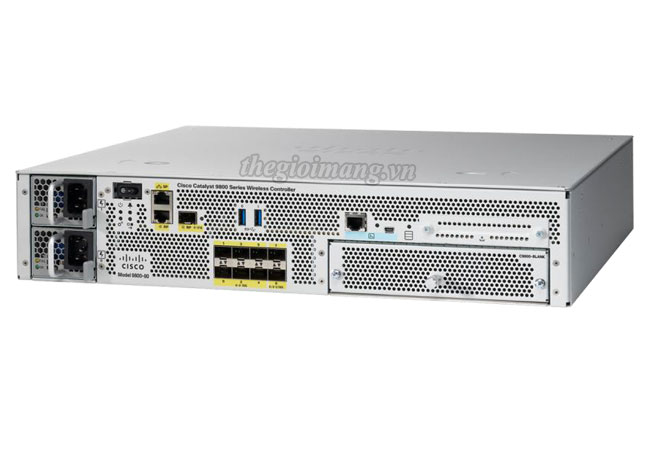

Thiết bị điều khiển Wifi Cisco Catalyst 9800-80 Wireless Controller
Model |
C9800-80-K9 |
Maximum number of access points
|
Up to 6000
|
Maximum number of clients
|
64,000
|
Maximum throughput
|
Up to 80 Gbps
|
Maximum WLANs
|
4096
|
Maximum VLANs
|
4096
|
Maximum site tags
|
6000
|
Maximum Flex® APs per site
|
100
|
Maximum policy tags
|
6000
|
Maximum RF tags
|
6000
|
Maximum RF profiles
|
12000
|
Maximum policy profiles
|
1000
|
Maximum Flex profiles
|
6000
|
Fixed uplinks
|
8x 10G or 6x 10G + 2x 1G SFP+/SFP
|
Modular uplinks (optional)
|
The supported uplink modules are:
● C9800-18X1GE(=)
● C9800-10X10GE(=)
● C9800-1X40GE(=)
● C9800-2X40GE(=)
● C9800-1X100GE(=)
The uplink modules are hot-swappable.
Supports 10G, 40G, and 100G QSFP transceivers
|
Redundant power supply
|
AC or DC power supply
|
Maximum power consumption with modules
|
600W
|
Deployment modes
|
Centralized, Cisco FlexConnect®, and Fabric Wireless (SD-Access)
|
Form factor
|
2RU
|
License
|
Smart License enabled
|
Operating system
|
Cisco IOS XE
|
Management
|
Cisco DNA Center, Cisco Prime® Infrastructure, integrated WebUI, and third party (open standards APIs)*
|
Interoperability
|
AireOS-based controllers*
|
Policy engine
|
Cisco Identity Services Engine (ISE)*
|
Location platform
|
Cisco Connected Mobile Experiences (CMX)/Cisco DNA Spaces*
|
Access points
|
Aironet 802.11ac Wave 1 and Wave 2 access points, Cisco Catalyst 9100 802.11ax access points
|
Physical dimensions |
|
Width
|
17.3 inches (43.94 cm)
|
Depth
|
20.5 inches (52.07 cm)
|
Height
|
3.47 inches (8.81 cm)
|
Weight
|
31.5 lb (14.29 kg)
|
Ports and their feature |
|
1x RJ-45 console port
|
Console port for out-of-band management
|
1x USB 3.0 console port
|
Console port for out-of-band management
|
2x USB 3.0 ports
|
USB 3.0 ports for plugging in external memory
|
1x RJ-45 management port
|
Management port for out-of-band management. Also known as service port.
|
1x RJ-45 redundancy port
|
Redundancy port used for SSO
|
1x SFP Gigabit Ethernet redundancy port
|
● Redundancy port used for SSO; works with Cisco supported SFPs (GLC-LH-SMD and GLC-SX-MMD) for RP port
|
Fixed uplink: 10G SFP+/1G SFP ports
|
The ports are fixed uplinks, which can be used as 8x 10G SFP+ or 6x 10G plus 2x 1G
|
Modular uplink
|
The supported uplink modules are:
● C9800-18X1GE(=)
● C9800-10X10GE(=)
● C9800-1X40GE(=)
● C9800-2X40GE(=)
● C9800-1X100GE(=)
The uplink modules are hot-swappable.
Supports 10G, 40G, and 100G QSFP transceivers
|
Modules SFPs supported |
|
Small Form-Factor Pluggable (SFP) |
GLC-BX-D
|
GLC-BX-U
|
|
GLC-LH-SMD
|
|
GLC-SX-MMD
|
|
GLC-ZX-SMD
|
|
GLC-TE
|
|
Enhanced SFP (SFP+) |
SFP-10G-SR
|
SFP-10G-SR-S
|
|
SFP-10G-SR-X
|
|
SFP-10G-LR
|
|
SFP-10G-LRM
|
|
SFP-10G-LR-X
|
|
SFP-10G-ER
|
|
SFP-10G-ZR
|
|
SFP-H10GB-ACU7M
|
|
SFP-H10GB-ACU10M
|
|
DWDM-SFP10G-30.33 - DWDM-SFP10G-61.41
|
|
Quad SFP (QSFP)
|
QSFP-40G-SR4
|
QSFP-40G-LR4
|
|
QSFP-40GE-LR4
|
|
QSFP-40G-ER4
|
|
QSFP-40G-SR4-S
|
|
QSFP-40G-LR4-S
|
|
QSFP-40G-SR-BD
|
|
QSFP-40G-BD-RX
|
|
QSFP-100G-SR4-S
|
|
QSFP-100G-LR4-S
|
|
Ordering information |
|
Product ID | Description |
C9800-80-K9 | Cisco Catalyst 9800-80 Wireless Controller |
LIC-C9800-DTLS-K9 | Cisco Catalyst 9800 Series Wireless Controller DTLS License |
C9800-AC-1100W= | Cisco Catalyst Wireless Controller 1100 AC Power Supply |
C9800-DC-950W= | Cisco Catalyst Wireless Controller 950W DC Power Supply |
C9800-18X1GE(=) | Cisco Catalyst 9800-80 GE Module |
C9800-10X10E(=) | Cisco Catalyst 9800-80 10 GE Module |
C9800-1X40GE(=) | Cisco Catalyst 9800-80 1 Port 40 GE Module |
C9800-2X40GE(=) | Cisco Catalyst 9800-80 2 Ports 40 GE Module |
C9800-1X100GE(=) | Cisco Catalyst 9800-80 1 Port 100 GE Module |

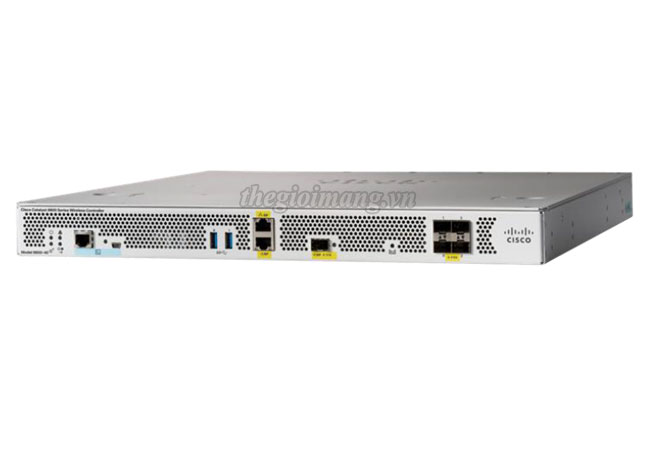

C9800-40-K9 Cisco Catalyst 9800-40 Wireless Controller
