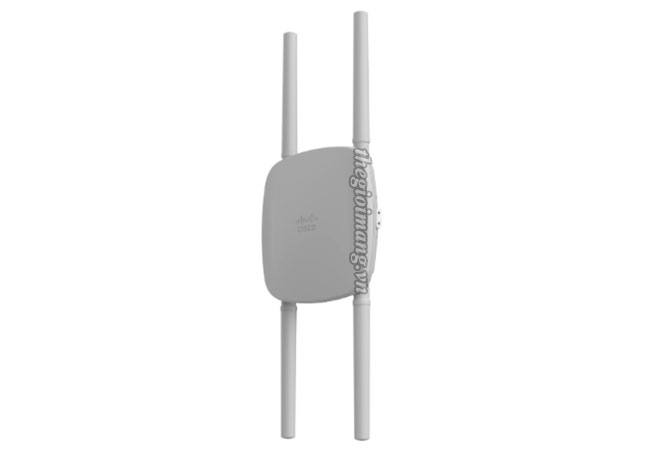

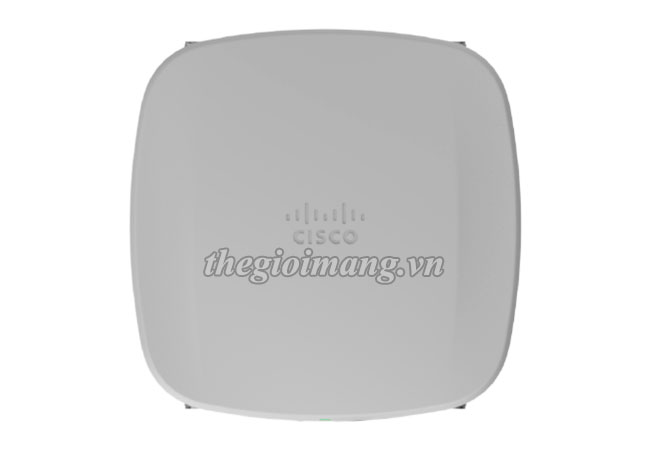

Cisco CW9163E-ROW Bộ phát Wi-Fi 6E Outdoor với 2x2 MU-MIMO và ROW domain
Cisco CW9163E-ROW là bộ truy cập Wi-Fi 6E dòng Catalyst 9163E với vỏ bọc chắc chắn và chống chịu thời tiết, giúp đảm bảo truy cập không bị gián đoạn ngay cả trong những môi trường ngoài trời. Catalyst 9163E Wi-Fi 6E được trang bị ba radio 2x2, một radio IoT, cung cấp nhiều tính năng tiên tiến, được thiết kế để đáp ứng yêu cầu Wi-Fi ngoài trời và các tùy chọn ăng-ten ngoài. Bằng cách sử dụng băng tần 6 GHz, điểm truy cập 9163E vô hiệu hóa nhiễu, giảm thiểu độ trễ và cung cấp các kênh rộng hơn và nhiều phổ hơn, băng thông cao hơn. Kết hợp nền tảng phần cứng Catalyst với lựa chọn quản lý On-premises hoặc cloud, mang lại trải nghiệm Wi-Fi ngoài trời vượt trội.
Điểm nổi bật Cisco CW9163E-ROW
Thông số kỹ thuật
| Model | CW9163E-ROW | ||||
| Software | ● Cisco IOS ® XE Software Release 17.13.1 or later | ||||
| Supported wireless controllers | ● Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual) | ||||
| 802.11n version 2.0 (and related) capabilities | ● 2x2 MIMO with two spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g ● 20- and 40-MHz channels ● PHY data rates up to 750 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
||||
| 802.11ac | ● 2x2 downlink MU-MIMO with two spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80-, and 160-MHz channels ● PHY data rates up to 1.7 Gbps (2x2 80+80 MHz on 5 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support ● Wi-Fi Protected Access (WPA) 3 support |
||||
| 802.11ax | ● 1024-QAM ● 2x2 uplink/downlink MU-MIMO with four spatial streams (2.4 GHz, 5 GHz, and 6 GHz) ● Uplink/downlink OFDMA ● TWT ● BSS coloring ● MRC ● 802.11ax beamforming ● 20-, 40-, 80-, and 160-MHz channels (6 GHz) ● 20-, 40-, 80-, and 80+80-MHz channels (5 GHz) ● 20-MHz channels (2.4 GHz) ● PHY data rates up to 3.9 Gbps (2x2 160 MHz on 6 GHz, 2x2 80 MHz on 5 GHz, and 2x2 20 MHz on 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support ● WPA3 support |
||||
| Antennas | ● CW-ANT-O1-NS-00 Omnidirectional Dipole Self-Identifying Antenna with N-Type Connector 2.4 GHz: Peak gain 4 dBi, omnidirectional in azimuth 5 GHz: Peak gain 8 dBi, omnidirectional in azimuth 6 GHz: Peak gain 8 dBi, omnidirectional in azimuth ● CW-ANT-D1-NS-00 4-Port Directional Patch Self-Identifying Antenna with N-Type Connectors 2.4 GHz: Peak gain 8 dBi, directional antenna, (75x30) 5 GHz: Peak gain 9 dBi, directional antenna, (60x30) 6 GHz: Peak gain 9 dBi, directional antenna, (72x27) ● CW-ANT-GPS2-S-00 Active GNSS/GPS Antenna with RP-SMA Connector Optional GNSS/GPS external antenna L1/L5 frequency bands Integrated mounting bracket for wall or pole mounting 10ft cable with RP-SMA connector |
||||
| Interfaces | ● 1 x 100M/1000M/2.5G Multigigabit Ethernet (RJ-45) ● Management console port (RJ-45) ● 4 x N-Type Wi-Fi antenna connectors ● RP-SMA active GPS/GNSS antenna connector |
||||
| Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors | ||||
| Dimensions (W x L x H) | ● Access point (without mounting brackets): 245 x 245 x 63.5 mm | ||||
| Weight | ● 1.5 kg | ||||
| Input power requirements | ● 802.3at Power over Ethernet Plus (PoE+), 802.3af Power over Ethernet (PoE) ● Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6 |
||||
| Power source | 2.4-GHz radio | 5-GHz radio | 6-GHz radio (LPI) | Link speed | Max PoE power consumption |
| 802.3at (PoE+) | 2x2 | 2x2 | 2x2 | 2.5 Gbps | 25.5W |
| 802.3af (PoE) | 1x1 | 1x1 | 1x1 | 1 Gbps | 14.0W |
| Environmental | ● Nonoperating (storage) temperature: -30° to 70°C ● Nonoperating (storage) altitude test: 25°C at 4600 m ● Operating temperature: -40° to 65°C without solar derating ● Operating temperature: -40° to 55°C with solar derating ● Operating humidity: 5% to 95% (noncondensing) ● Operating altitude test: 40°C at 3000 m |
||||
| System memory | ● 2048 MB DRAM ● 1024 MB flash |
||||
| Available transmit power settings | ● 2.4 GHz 23 dBm (200 mW) -4 dBm (0.39 mW) ● 5 GHz 23 dBm (200 mW) -4 dBm (0.39 mW) ● 6 GHz 23 dBm (200 mW) -4 dBm (0.39 mW) |
||||
| Certifications | ● Wi-Fi Alliance: Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security ● Bluetooth SIG: Bluetooth Low Energy (BLE) |
||||
CW9163E-ROW : Catalyst 9163E AP (W6E, tri-band 2x2,Outdoor) w/Reg-ROW
