Cisco Firepower FPR2120-ASA-K9 thiết bị tường lửa dành cho doanh nghiệp vừa và nhỏ
Tường lửa Cisco Firepower 2100 Series bao gồm 4 mã thiết bị bảo mật FPR2110, 2120, 2130 và 2140 tập trung vào mối đe dọa được thiết kế cho các văn phòng, doanh nghiệp vừa và lớn, trung tâm dữ liệu. Với khả năng quản lý được đơn giản hóa thông qua Cisco Defense Orchestrator (CDO), chúng mang lại khả năng phục hồi và bảo vệ khỏi mối đe dọa cho tổ chức của bạn. Không giống như nhiều tường lửa khác, Cisco Firepower duy trì hiệu suất trong khi thực hiện kiểm tra mối đe dọa.

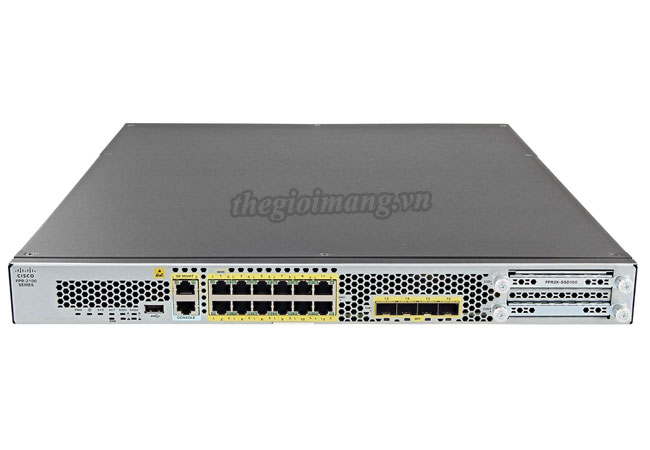

Cisco Firepower FPR2120-ASA-K9 có 12xGE port, 4xSFP port, 1xGE Management, 1xGE Console, 1xUSB 2.0, 1x100GB (SSD), 1xspare slot, Rack 1U phù hợp cho doanh nghiệp vừa và lớn, trung tâm dữ liệu.
Điểm nổi bật
Các tính năng được hỗ trợ trên Cisco Firepower Threat Defense (FTD)
Thông số kỹ thuật Cisco FPR2120-ASA-K9
Model | FPR2120-ASA-K9 |
Hardware specifications | |
Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ- 45) 4 x 1 Gigabit (SFP) Ethernet interfaces |
Network modules | None |
Maximum number of interfaces | Up to 16 total Ethernet ports, (12x1G RJ-45, 4x1G SFP) |
Integrated network management ports | 1 x 10M/100M/ 1GBASE-T Ethernet port (RJ-45) |
Serial port | 1 x RJ-45 console |
USB | 1 x USB 2.0 Type-A (500mA) |
Storage | 1 x 100 GB, 1 x spare slot (for MSP) |
Form factor (rack units) | 1RU |
Power supply configuration | Single integrated 250W AC power supply. |
AC input voltage | 100 to 240V AC |
AC maximum input current | < 2.7A at 100V |
AC maximum output power | 250W |
AC frequency | 50 to 60 Hz |
AC efficiency | >88% at 50% load |
Redundancy | None |
Fans | 4 integrated (2 internal, 2 exhaust) fans |
Noise | 56 dBA @ 25C 74 dBA at highest system performance. |
Rack mountable | Yes. Fixed mount brackets included. (2- post). Mount rails optional (4-post EIA-310-D rack) |
Dimensions (H x W x D) | 4.4 x 42.9 x 50.2 cm |
Weight | 7.3 kg with 2 x SSDs |
Temperature: operating | 0 to 40°C |
Temperature: nonoperating | -20 to 65°C |
Humidity: operating | 10 to 85% noncondensing |
Humidity: nonoperating | 5 to 95% noncondensing |
ASA Performance and capabilities on Firepower 2100 appliances | |
Stateful inspection firewall throughput | 6 Gbps |
Stateful inspection firewall throughput (multiprotocol) | 3 Gbps |
Concurrent firewall connections | 1.5 million |
New connections per second | 28000 |
IPsec VPN throughput (450B UDP L2L test) | 700 Mbps |
Maximum VPN Peers | 3500 |
Security contexts (included; maximum) | 2; 25 |
High availability | Active/active and active/standby |
Scalability | VPN Load Balancing |
Centralized management | Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator |
Adaptive Security Device Manager | Web-based, local management for small-scale deployments |
Tùy chọn License cho Cisco Firepower FPR2120-ASA-K9
L-FPR2K-ENC-K9= | Cisco Firepower 2000 Series ASA Strong Encryption (3DES/AES) |
L-FPR2K-ASASC-5= | Cisco Firepower 2100 - Add 5 Security Context Licenses |
L-FPR2K-ASASC-10= | Cisco Firepower 2100 - Add 10 Security Context Licenses |
FPR2120-ASA-K9 : Cisco Firepower 2120 ASA Appliance, 1U
