Cisco Firepower FPR4225-NGFW-K9 thiết bị tường lửa cao cấp được thiết kế để đáp ứng cho các doanh nghiệp lớn, trung tâm dữ liệu và nhà cung cấp dịch vụ

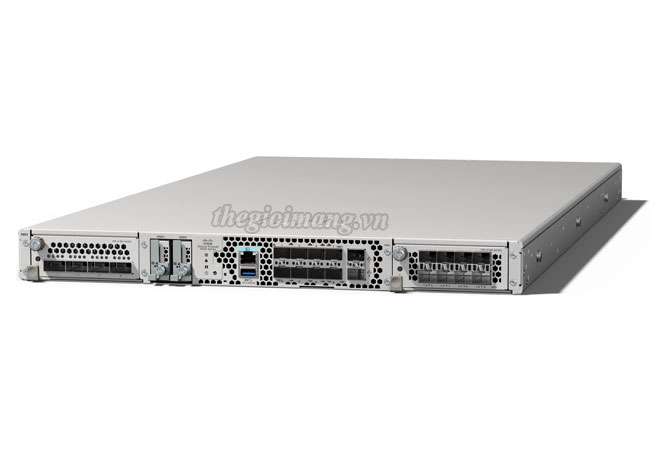

Thiết bị tường lửa Cisco Secure Firewall FPR4225-NGFW-K9
| Model | FPR4225-NGFW-K9 |
| Dimensions (H x W x D) | • 4.39 x 42.9 x 81.28 cm |
| Form factor (rack units) | • 1RU |
| Fixed Ports | • 8 x 1/10/25 Gigabit Ethernet ports (SFP28) |
| Integrated Network Management Ports | • 2 x 1/10/25 Gigabit Ethernet ports (SFP28) |
| Network modules | • 8-port 1Gbps copper, FTW (fail to wire) Network Module ◦ Ports that are not configured as FTW can be used as regular 1 Gb copper ports • 8 x 1/10 Gigabit Ethernet Small Form-Factor Pluggable (SFP+) network modules • 8 x 1/10/25 Gigabit Ethernet Small Form-Factor Pluggable (SFP28) network modules • 4 x 40 Gigabit Ethernet Quad SFP+ network modules • 4 x 40/100/200 Gigabit Ethernet Quad SFP28 (QSFP28) network modules • 2 x 100G Gigabit Ethernet QSFP SFP28 network modules • 6-port 10Gbps SR Fiber FTW (fail to wire) Network Module • 6-port 10Gbps LR Fiber FTW (fail to wire) Network Module • 6-port 25Gbps LR Fiber FTW (fail to wire) Network Module • 6-port 25Gbps SR Fiber FTW (fail to wire) Network Module |
| Maximum number of interfaces | • Up to 24 x 10 Gigabit Ethernet (SFP+) interfaces • Up to 8 x 25 Gigabit Ethernet (SFP28) interfaces with 2 network modules • Up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules • Up to 24 x 1 Gigabit Ethernet ports (SFP) with 2 network modules and fixed ports • Up to 8 x 100 Gigabit Ethernet (QSFP28) interfaces with 2 network modules |
| Serial port | • 1 x RJ-45 console |
| USB | • 1 x USB 2.0 |
| Storage | • 1.8 TB x 2 |
| Power supplies | |
| Configuration | • Dual: 1900W for 220 AC, 1200W for 110 AC |
| AC input voltage | • 100 to 120 VAC (low line) or 200 to 240 VAC (high line) |
| AC maximum input current | • 14A, @ 100VAC or @ 200VAC |
| AC maximum Input power | • 870W |
| AC frequency | • 50/60 Hz (nominal) |
| AC efficiency | • > 90% (Platinum) |
| Redundancy | • 1+1 |
| Fans | • 3 Dual fan modules (FRU). Each module has two fans |
| Noise | • Sound Pressure: <=78 dBA (typical), <= 84 dBA (maximum) • Sound Power: <=87 dB (typical), <=92 dB (maximum) |
| Rack mountable | • Yes, mount rails included (4-post EIA-310-D rack) |
| Weight | • 4225: 43 lbs (19.5 kgs): 2 x power supplies, 2 x NMs, 3 x fan-modules; 33 lbs (15 kgs): no power supplies, no NMs, no fans |
| Temperature: operating | • 32 to 104°F (0 to 40°C) or NEBS operation (see below) |
| Temperature: nonoperating | • -40 to 149°F (-40 to 65°C) |
| Humidity: operating | • 5 to 95% noncondensing |
| Humidity: nonoperating | • 5 to 95% noncondensing |
| Altitude: operating | • 10,000 ft (max) |
| Altitude: nonoperating | • 40,000 ft (max) |
| Performance specifications and feature with the Cisco Secure Firewall Threat Defense (FTD) image | |
| Throughput: FW + AVC (1024B) | • 80 Gbps |
| Throughput: FW + AVC + IPS (1024B) | • 80 Gbps |
| Maximum concurrent sessions, with AVC | • 30 Million |
| New Connections Per Second with, AVC | • 600 K |
| TLS (Hardware Decryption)1 | • 30 Gbps |
| Throughput: NGIPS (1024B) | • 80 Gbps |
| IPSec VPN Throughput (1024B TCP w/Fastpath) | • 80 Gbps |
| Maximum VPN Peers | • 25000 |
| Centralized Management | • Centralized configuration, logging, monitoring, and reporting are performed by the Firewall Management Center or alternatively in the cloud with Cisco Defense Orchestrator |
| Application Visibility and Control (AVC) | • Standard, Supporting more than 4000 applications, as well as geolocation, users, and websites |
| AVC: OpenAppID support for custom, open source, application detectors | • Standard |
| Cisco Security Intelligence | • Standard with IP, URL, and DNS Threat Intelligence |
| Cisco Secure IPS | • Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IOC) intelligence |
| Cisco Malware Defense | • Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with CISCO Secure Endpoint is also optionally available |
| Cisco Secure Malware Analytics | • Available |
| URL Filtering: Number of Categories | • More than 80 |
| URL Filtering: Number of URLs categorized | • More than 280 million |
| Automated Threat Feed and IPS signature updates | • Yes: class-leading Collective Security Intelligence (CSI) from the Cisco Talos Group |
| Third-party and open-source ecosystem | • Open API for integrations with third-party products; Snort® and OpenAppID community resources for new and specific threats |
| High Availability & Clustering | • Active/active, Active/standby. Cisco Secure Firewall 4200 Series allows clustering of up to 8 chassis |
| Cisco Trust Anchor Technologies | • Secure Firewall 4200 Series platforms include Trust Anchor Technologies for supply chain and software image assurance. Please see the section below for additional details |
Tùy chọn License cho Cisco Firepower 4225
| L-FPR4225T-T= | Cisco FPR4225 Threat Defense Threat Protection License |
| L-FPR4225T-TC= | Cisco FPR4225 Threat Defense Threat and URL License |
| L-FPR4225T-AMP= | Cisco FPR4225 Threat Defense Malware Protection License |
| L-FPR4225T-TM= | Cisco FPR4225 Threat Defense Threat and Malware License |
| L-FPR4225T-URL= | Cisco FPR4225 Threat Defense URL Filtering License |
| L-FPR4225T-TMC= | Cisco FPR4225 Threat Defense Threat, Malware and URL License |
| L-FPR4225-P= | Cisco Defense Orchestrator for Firepower 4225 |
FPR4225-NGFW-K9 : Cisco Secure Firewall 4225 NGFW Appliance, 1U, 2 x NetMod Bays
